51231 - Lawn-Boy 8" String Trimmer, Electric (SN: 049000001 - 049999999) (1994) MOTOR & HOUSING ASSEMBLY Parts Diagram

8" String Trimmer, Electric

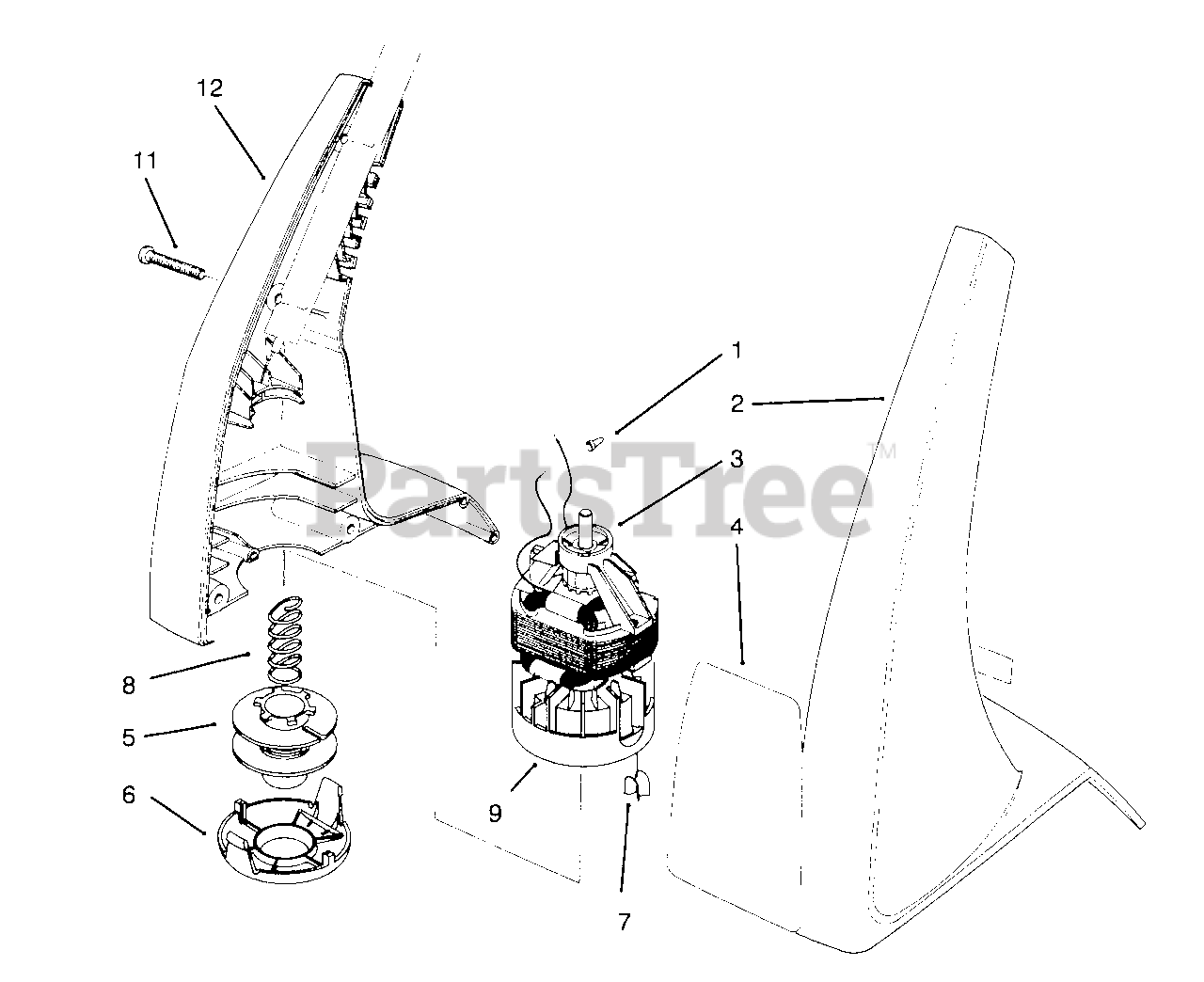

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 218-496

Connector-Wire

$

$

Not available

2

Lawn-Boy 73-8400

Housing-L.H.

$

$

Not available

3

Lawn-Boy 73-9040

Motor Assembly (Incl. Ref. #9 & 7 )

$

$

Not available

$

$

Not available

5

Lawn-Boy 73-8500

20 Ft. .050 Dia. Cutting Line Prewound on Spool
(Superseded to 88170)

$19.99

$

Usually ships in 3-6 days

0

Lawn-Boy 73-8240

Empty Spool

Note: Not Illustrated

$14.99

$

Usually ships in 3-6 days

0

Lawn-Boy 34-3890

30 Ft. .050 Dia. Cutting Line
(Superseded to 88011)

Note: Not Illustrated

$

$

Not available

$5.49

$

In Stock, only 1 left!

0

7

$3.49

$

Usually ships in 3-6 days

0

8

$1.99

$

In Stock, Qty 20+

0

9

Drum

$

$

Not available

11

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 73-9080

Housing Assembly-R.H.

$

$

Not available
