51230 (910) - Toro String Trimmer, Electric (SN: 020000001 - 029999999) (1992) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

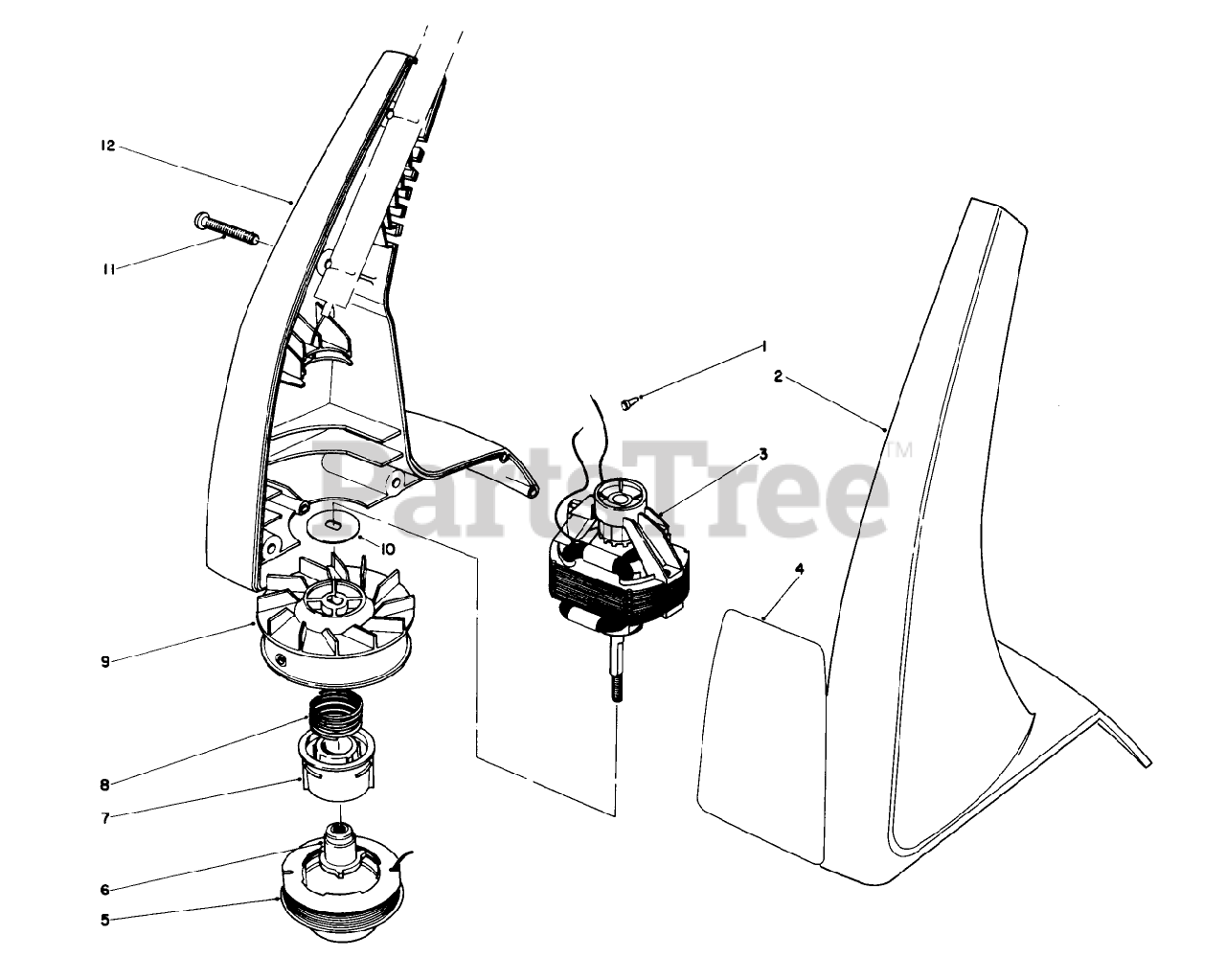

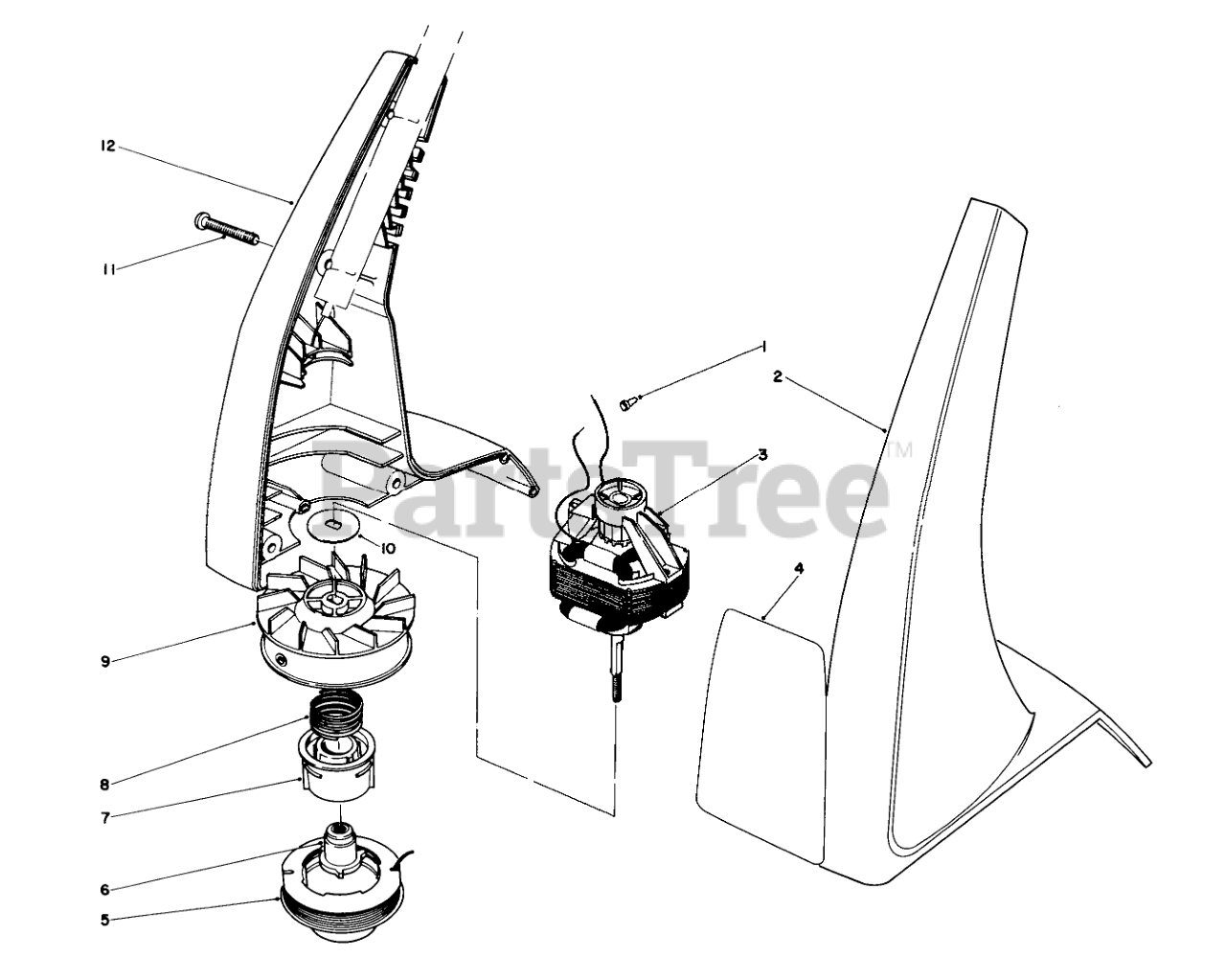

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

2

Toro 34-9711

LH HOUSING, 8" TRIMMER

$

$

Not available

3

Toro 34-9500

MOTOR, 910 TRIMMER

$

$

Not available

4

Toro 73-1190

DECAL, 8" TRIMMER

$

$

Not available

5

Toro 88075

Prewound Spool

$19.99

$

In Stock, only 3 left!

0

Toro 34-9870

CAP-SPOOL

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0

Toro 88011

Line-Cutting (30- .05 Dia.)

Note: Not illustrated

$

$

Not available

6

Toro 34-9770

DRIVER

$

$

Not available

7

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

8

Toro 29-8230

SPRING-COMPRESSION

$10.99

$

In Stock, only 2 left!

0

9

Toro 34-9850

Drum w/Eyelet

$

$

Not available

10

Toro 34-9790

MOTOR WASHER

$

$

Not available

11

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Toro 34-9821

HOUSING ASSY, R.H.

$

$

Not available
