51230 (910) - Lawn-Boy String Trimmer, Electric (SN: 002000001 - 002999999) (1992) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

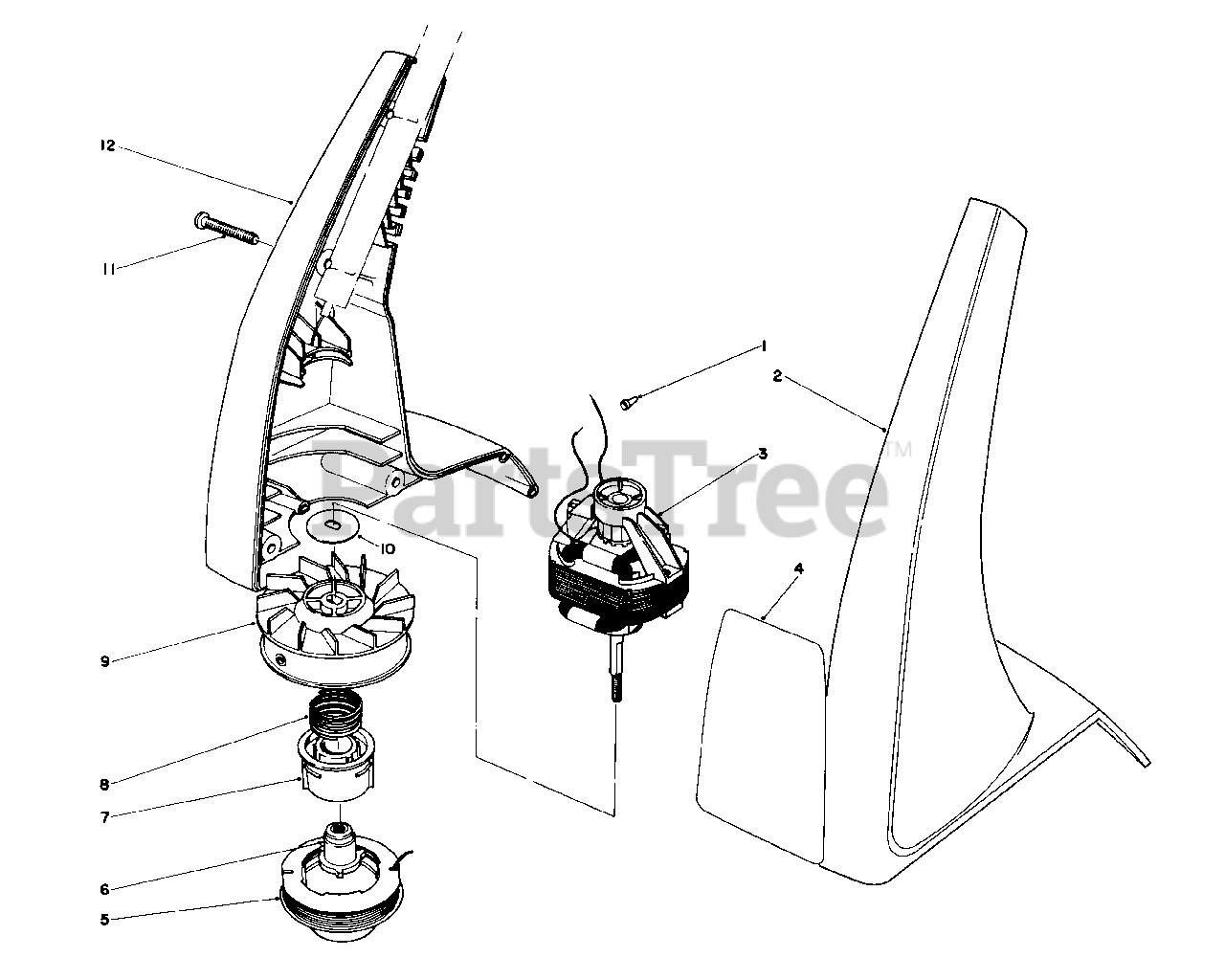

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 218-496

Connector-Wire

$

$

Not available

2

Lawn-Boy 34-9711

Housing-L.H.

$

$

Not available

$

$

Not available

$

$

Not available

5

Lawn-Boy 88075

12 Ft. .050 Dia. Cutting Line Prewound on Spool

$19.99

$

In Stock, only 3 left!

0

Lawn-Boy 34-9870

Empty Spool

Note: Not Illustrated

$16.99

$

Usually ships in 3-6 days

0

Lawn-Boy 88011

30 Ft. .050 Dia. Cutting Line

Note: Not Illustrated

$

$

Not available

6

$

$

Not available

7

Lawn-Boy 29-8120

Spool Core

$34.99

$

Usually ships in 3-6 days

0

8

$10.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 34-9850

Drum w/Eyelet

$

$

Not available

10

Lawn-Boy 34-9790

Washer-Motor

$

$

Not available

11

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 34-9821

Housing-R.H.

$

$

Not available
