51225 (900) - Toro String Trimmer, Electric (SN: 009000001 - 009999999) (1979) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

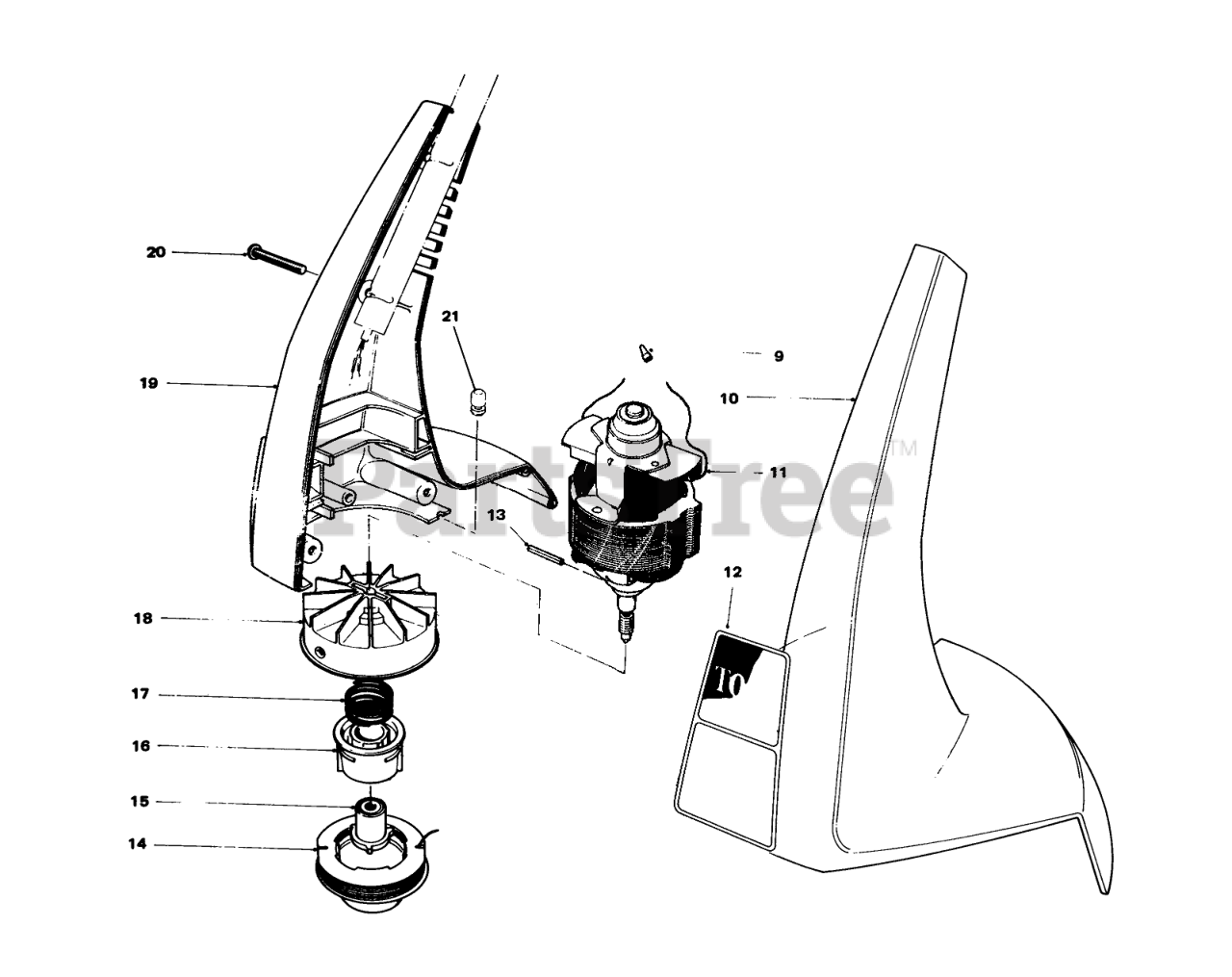

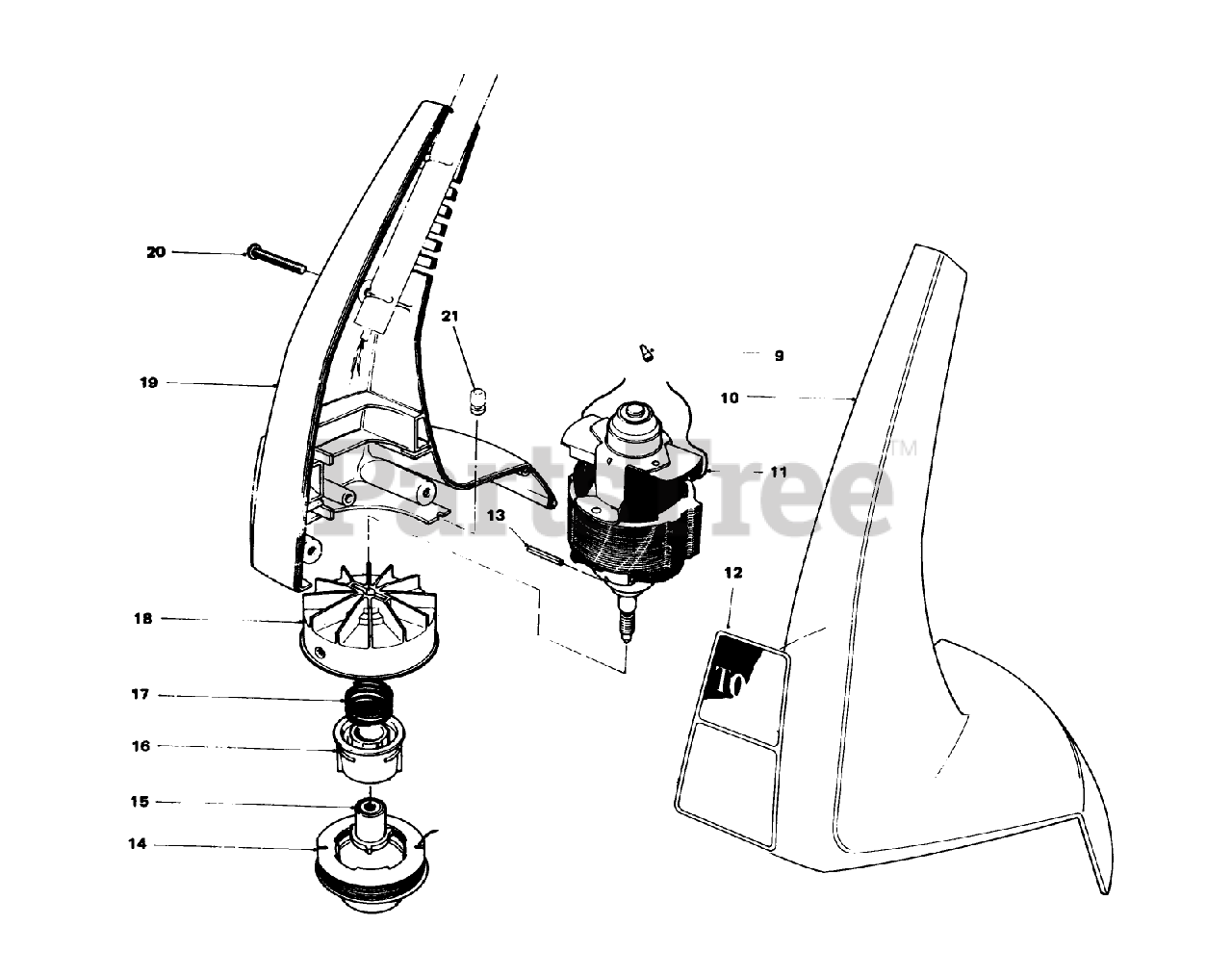

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
9

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

10

Toro 33-8530

Housing L.H.

$

$

Not available

11

Toro 33-8590

Motor

$

$

Not available

12

Toro 33-8620

DECAL 900

$

$

Not available

13

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

14

Toro 33-7920

Prewound Spool
(Superseded to 88004)

$

$

Not available

Toro 29-8110

SPOOL CAP

$

$

Not available

Toro 33-7900

.040" Cutting Line in Coil
(Superseded to 88002)

$6.49

$

Usually ships in 3-6 days

0

15

Toro 29-8130

Driver
(Superseded to 34-9100)

$21.99

$

In Stock, only 3 left!

0

16

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

17

Toro 29-8230

SPRING-COMPRESSION

$10.99

$

In Stock, only 2 left!

0

18

Toro 33-8680

FAN HUB ASM

$

$

Not available

19

Toro 33-8630

Housing R.H.

$

$

Not available

20

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

21

Toro 33-8710

GROMMET

$

$

Not available
