51216 (900) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

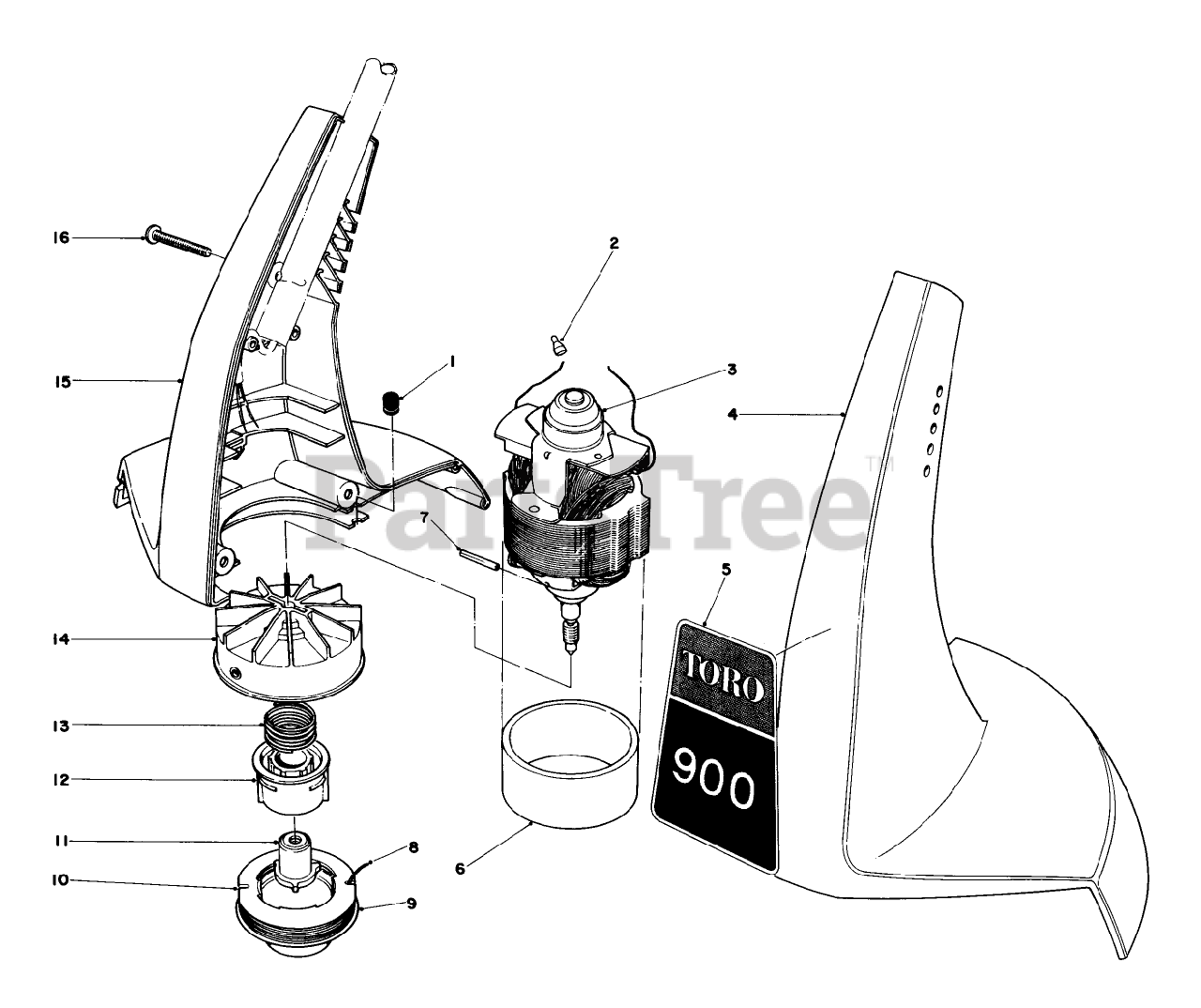

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 33-8710

GROMMET

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 34-4670

Motor

$

$

Not available

4

Toro 34-4730

Left Housing

$

$

Not available

5

Toro 34-4770

Decal-900 Toro

$

$

Not available

6

Toro 34-4290

DAMPENING SLEEVE

$

$

Not available

7

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

8

Toro 33-7900

.040" Cutting Line in Coil
(Superseded to 88002)

$

$

Not available

9

Toro 29-8110

SPOOL CAP

$

$

Not available

10

Toro 33-7920

Prewound Spool
(Superseded to 88004)

$

$

Not available

11

Toro 34-4200

Driver
(Superseded to 34-9100)

$18.99

$

In Stock, only 3 left!

0

12

Toro 29-8120

CORE - SPOOL

$29.99

$

Usually ships in 3-6 days

0

13

Toro 29-8230

SPRING-COMPRESSION

$8.99

$

In Stock, only 2 left!

0

14

Toro 33-8680

FAN HUB ASM

$

$

Not available

15

Toro 34-4480

Right Housing

$

$

Not available

16

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0
