51215 (900) - Toro String Trimmer, Electric (SN: 001000001 - 001999999) (1981) MOTOR & HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

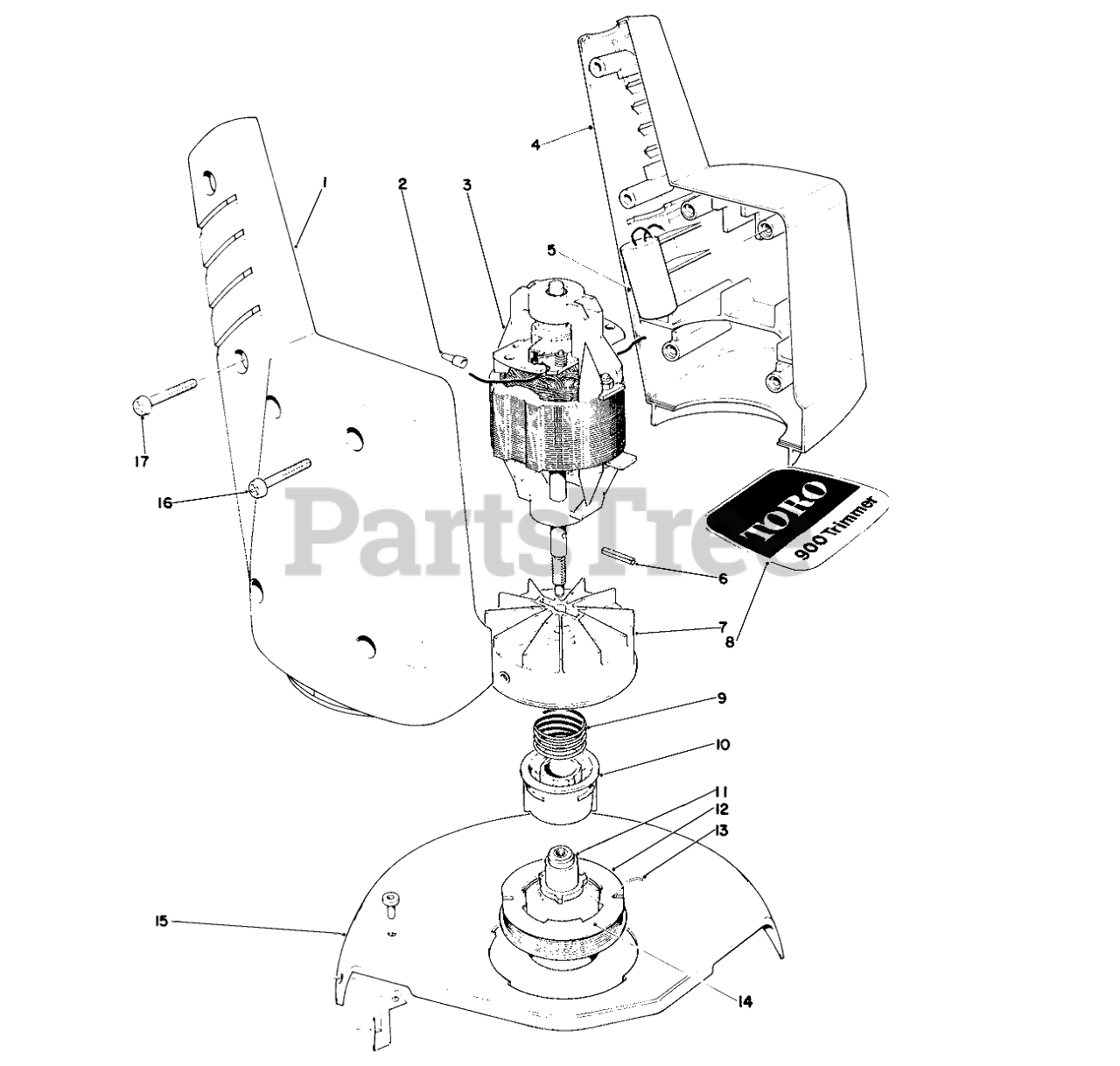

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 33-7300

Right Motor Housing

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 33-7770

Motor

$

$

Not available

4

Toro 33-7290

RH MOTOR HSG

$

$

Not available

5

Toro 33-9850

Suppressor

Note: Included with Wiring Harness 33-9840

$

$

Not available

6

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

7

Toro 33-8680

FAN HUB ASM

$

$

Not available

8

Toro 33-8220

Toro 900 Decal

$

$

Not available

9

Toro 29-8230

SPRING-COMPRESSION

$10.99

$

In Stock, only 2 left!

0

10

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

11

Toro 34-4200

Driver
(Superseded to 34-9100)

$21.99

$

In Stock, only 3 left!

0

12

Toro 29-8110

SPOOL CAP

$

$

Not available

13

Toro 33-7900

.040" Cutting Line in Coil
(Superseded to 88002)

$6.49

$

Usually ships in 3-6 days

0

14

Toro 33-7920

Prewound Spool
(Superseded to 88004)

$

$

Not available

15

Toro 29-8310

Shield with Cut-off Blade

$

$

Not available

16

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

17

$

$

Not available
