51200 (900) - Toro String Trimmer, Electric (SN: 000000001 - 000999999) (1980) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

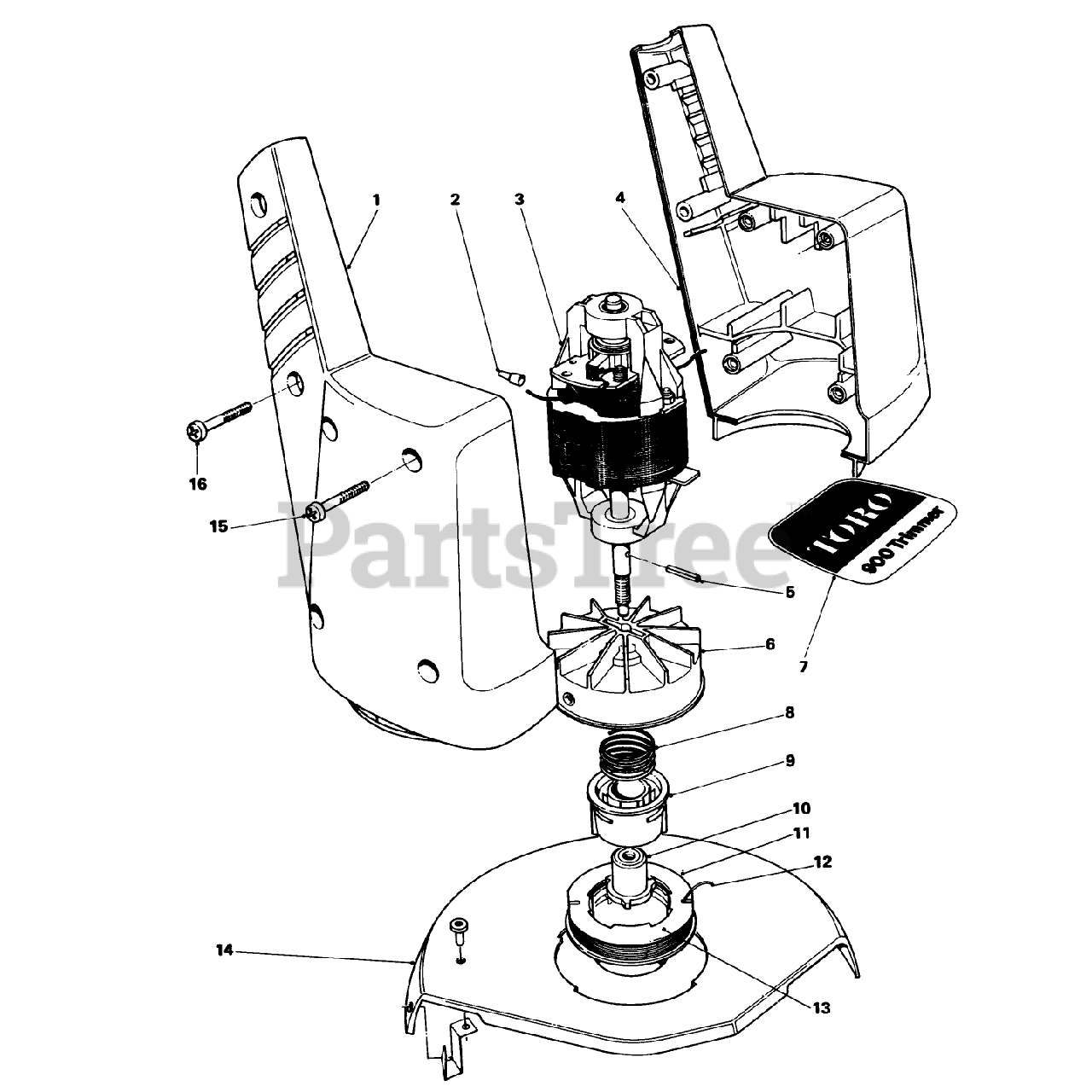

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 29-8170

Right Motor Housing

$

$

Not available

2

Toro 218496

Wire Connector

$

$

Currently unavailable

3

Toro 29-8150

Motor

$

$

Not available

4

Toro 29-8180

Left Motor Housing

$

$

Not available

5

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

6

Toro 29-8210

Fan Hub with Eyelet
(Superseded to 33-8680)

$

$

Not available

7

Toro 33-5870

Toro 900 Decal

$

$

Currently unavailable

8

Toro 29-8230

SPRING-COMPRESSION

$10.99

$

In Stock, only 2 left!

0

9

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

10

Toro 29-8130

Driver
(Superseded to 34-9100)

$21.99

$

In Stock, only 3 left!

0

11

Toro 29-8110

SPOOL CAP

$

$

Not available

12

Toro 33-7900

.040" Cutting Line in Coil
(Superseded to 88002)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 33-7920

Prewound Spool
(Superseded to 88004)

$

$

Not available

14

Toro 29-8310

Shield with Cut-off Blade

$

$

Not available

15

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

16

$

$

Not available
