512 H (1692057) - AGCO Lawn Tractor, 12.5hp Transmission & Rear Tire Group Parts Diagram

Lawn Tractor, 12.5hp

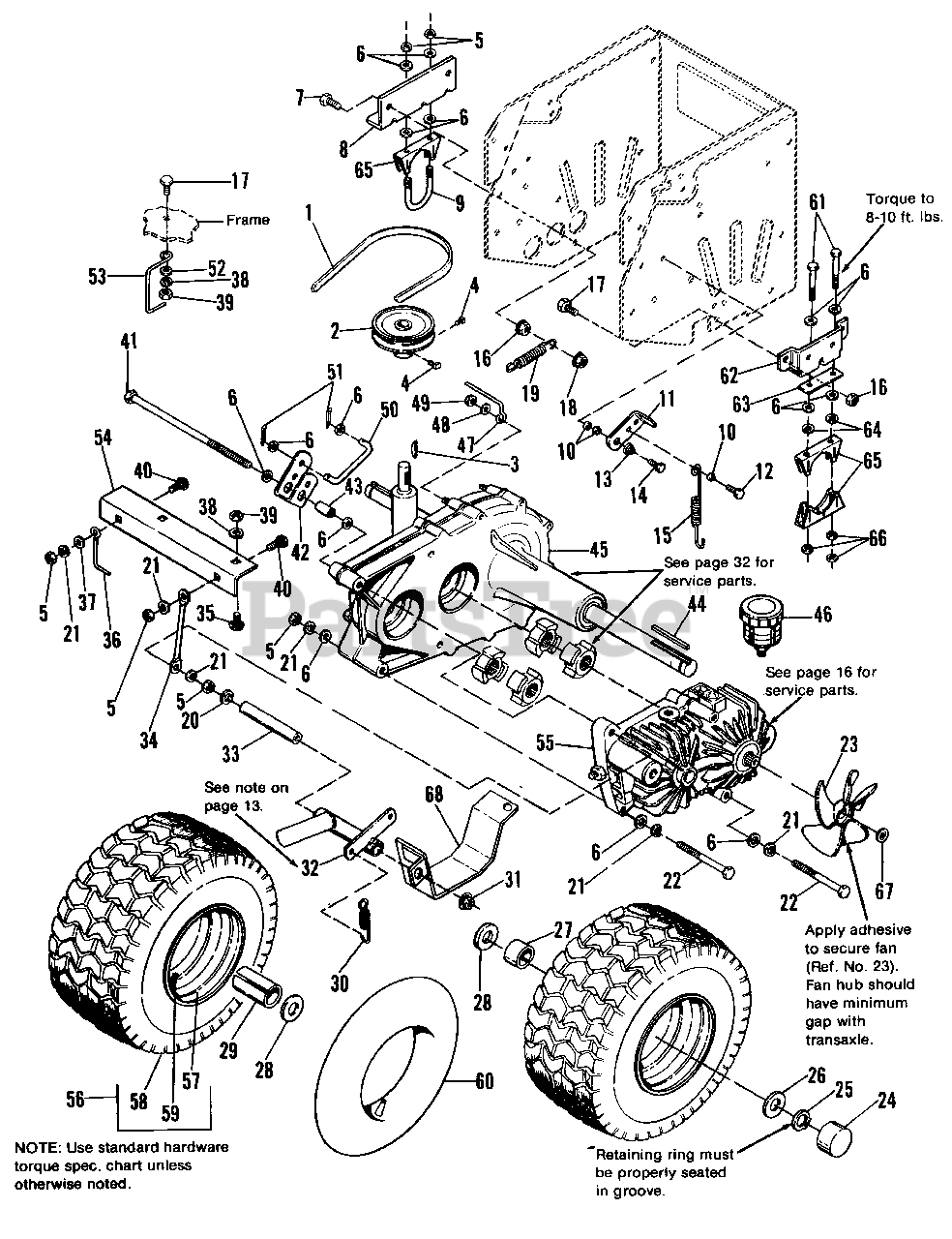

Transmission & Rear Tire Group Parts Diagram

  • Title

1

Simplicity 1656960SM

"V" BELT

$47.99

$

In Stock, only 1 left!

0

2

Simplicity 1705546SM

PULLEY ASSY.

$54.99

$

Usually ships in 2-12 days

0

3

Simplicity 2824819SM

KEY, Hi-Pro, 1/8 x 5/8, #5

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1960110SM

SET SCREW, Sq. Hd., 1/4-28

$7.99

$

In Stock, only 2 left!

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1919326SM

WASHER, 5/16 Std.

$4.49

$

In Stock, Qty 6

0

7

Simplicity 1921974SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

8

Simplicity 1705882

SUPPORT, Transmission

$

$

Not available

9

Simplicity 1705895

"U" BOLT

$

$

Not available

10

Simplicity 1702219SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 1705879ASM

LEVER, Hydro Release Valve

$10.99

$

Usually ships in 2-12 days

0

12

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

13

Simplicity 2157127SM

SPRING, Conical

$

$

Not available

14

Simplicity 1925592SM

SCREW, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

15

Simplicity 1705868SM

SPRING, Tension

$48.99

$

Usually ships in 2-12 days

0

16

Simplicity 1928352SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

18

Simplicity 1930645SM

NUT, Hex Flange, Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 2159106SM

SPRING
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

20

Simplicity 1924874SM

WASHER, 11/32
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1925692SM

CAPSCREW, Hex Hd., 5/16-18 x 4-1/2

$5.99

$

Usually ships in 2-12 days

0

23

Simplicity 1707054SM

FAN, Blade, 5"

$32.99

$

Usually ships in 2-12 days

0

24

Simplicity 1673333SM

CAP, Hub, Threaded

$5.49

$

In Stock, Qty 5

0

25

Simplicity 2827794SM

"E" RING

$3.49

$

In Stock, Qty 16

0

26

Simplicity 2860160

WASHER, 3/4

$

$

Not available

27

Simplicity 124044

SPACER

$

$

Not available

28

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1705880

SPACER

$

$

Not available

30

Simplicity 2121037SM

SPRING

$

$

Not available

31

Simplicity 1935048SM

NUT, Hex, Flange, Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1705842

TOW VALVE LEVER ASSY.

Note: If ordering replacement part Ref. No. 32, P/N 1705842, Tow Valve Lever, make sure Ref. No. 33, Pivot Tube, is over 5", not 4-7/8". If not, also order new Pivot Tube, Part No. 1706087.

$

$

Not available

33

Simplicity 1706087

TUBE, Pivot, Internal

Note: If ordering replacement part Ref. No. 32, P/N 1705842, Tow Valve Lever, make sure Ref. No. 33, Pivot Tube, is over 5", not 4-7/8". If not, also order new Pivot Tube, Part No. 1706087.

$

$

Not available

34

Simplicity 1705515

TORQUE STRAP

$

$

Not available

35

Simplicity 1931349SM

CARRIAGE BOLT, 3/8-16 x 7/8

$

$

Not available

36

Simplicity 1705872

STOP, Belt

$

$

Not available

37

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

38

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

39

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

41

Simplicity 1960416

CAPSCREW, Hex Hd., 5/16-18 x 11

$

$

Not available

42

Simplicity 1705803

PIVOT, Brake

$

$

Not available

43

Simplicity 1705906

SPACER

$

$

Not available

44

Simplicity 1729279SM

KEY, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

45

Simplicity 1705770SM

TRANSAXLE

$1481.99

$

Usually ships in 2-12 days

0

46

Simplicity 1705881SM

RESERVOIR, Expansion
(Superseded to 7016727YP)

$71.99

$

Usually ships in 2-12 days

0

47

Simplicity 1702970SM

BELT GUIDE
(Superseded to 2167032SM)

$31.99

$

Usually ships in 2-12 days

0

48

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

49

Simplicity 1930642SM

NUT, Hex, Flange, Two-Way Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, Qty 6

0

50

Simplicity 1705810

ROD, Brake

$

$

Not available

51

Simplicity 2818447

PIN, Cotter

$

$

Not available

52

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

53

Simplicity 1673106SM

STOP, Belt

$16.99

$

In Stock, only 2 left!

0

54

Simplicity 1705874

BRACKET, Support

$

$

Not available

55

Simplicity 1705771SM

TRANSMISSION, Hydro

$1481.99

$

Usually ships in 2-12 days

0

56

Simplicity 1673244

WHEEL & TIRE ASSY., 18 x 8.50-8

$

$

Not available

57

Simplicity 1716132SM

WHEEL ASSY.

$

$

Not available

58

Simplicity 1713170SM

TIRE, Turf Saver, 18 x 8.50-8

$

$

Not available

59

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

60

Simplicity 2164247SM

TUBE

$40.99

$

Usually ships in 2-12 days

0

61

Simplicity 1925690SM

CAPSCREW, Hex Hd., 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

62

Simplicity 1706381

BRACKET, Transmission Support

$

$

Not available

63

Simplicity 1706371

PLATE, Shim

$

$

Not available

64

Simplicity 2834953

NUT, Push

$

$

Not available

65

Simplicity 1706383

CLAMP, "U" Bracket

$

$

Not available

66

Simplicity 1914438

NUT, Esna, Hex Lk., 5/16-18

$

$

Not available

67

Simplicity 1706616SM

RING, Self-Locking

$

$

Not available

68

Simplicity 1707031

GUARD, Fan

$

$

Not available
