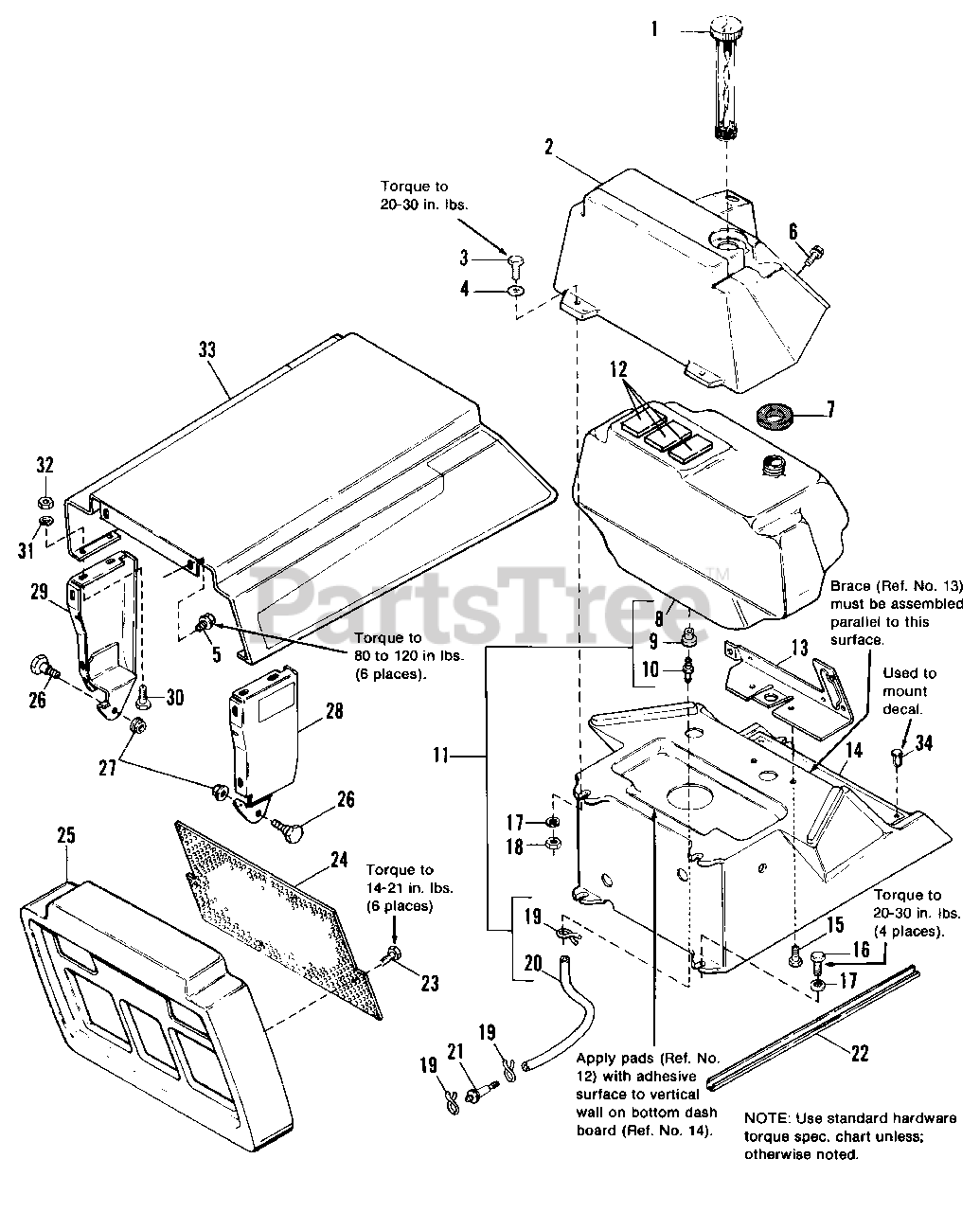

512 H (1692057) - AGCO Lawn Tractor, 12.5hp Hood, Grille & Dash Group Parts Diagram

Lawn Tractor, 12.5hp

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

2

Simplicity 1672630

DASHBOARD, Top

$

$

Not available

3

Simplicity 1921961SM

CAPSCREW, Hex, 1/4-20 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1960106SM

SCREW, Plastite, 1/4 x 1

$2.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960498SM

SCREW, Hex Washer Hd., 1/4-20 x 5/8

$3.49

$

In Stock, Qty 13

0

7

Simplicity 1664897SM

WASHER, Foam

$90.99

$

Usually ships in 2-12 days

0

8

TANK, Fuel (See Ref. No. 11)

$

$

Not available

9

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

10

Simplicity 1666447SM

FITTING

$

$

Not available

11

Simplicity 1687038SM

TANK ASSY., Fuel (Incl. Ref. Nos. 8, 9, 10, 19 (Qty. 1) & 20)

$

$

Not available

12

Simplicity 2173335

PAD

$

$

Not available

13

Simplicity 1665301

BRACE

$

$

Not available

14

Simplicity 1707393SM

DASHBOARD, Bottom

$

$

Not available

15

Simplicity 1925592SM

SCREW, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

16

Simplicity 1933958SM

SCREW, Taptite, 1/4-20 x 1

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 1931704SM

LOCKWASHER, Dish, 1/4

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

21

Simplicity 2173206SM

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

22

Simplicity 1672123

EDGING, Lower Dash

$

$

Not available

23

Simplicity 1960001SM

SCREW, Plastite, #10-24 x 1/2
(Superseded to 703062)

$4.49

$

In Stock, Qty 8

0

24

Simplicity 1656793SM

SCREEN

$

$

Not available

25

Simplicity 1685241SM

GRILLE

$158.99

$

Usually ships in 2-12 days

0

26

Simplicity 1656792SM

BOLT, Shoulder, 5/16-18 x 7/8

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 1935048SM

NUT, Hex, Flange, Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

28

Simplicity 1656787

PANEL ASSY., L.H.

$

$

Not available

29

Simplicity 1656786

PANEL ASSY., R.H.

$

$

Not available

30

Simplicity 1921958SM

CAPSCREW, Hex, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

32

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1656774

HOOD

$

$

Not available

34

Simplicity 1667248SM

CLIP, Canoe

$3.49

$

Usually ships in 2-12 days

0
