512 G (1692167) - AGCO 36" Lawn Tractor, 12.5hp Hood, Grille & Dash Group Parts Diagram

36" Lawn Tractor, 12.5hp

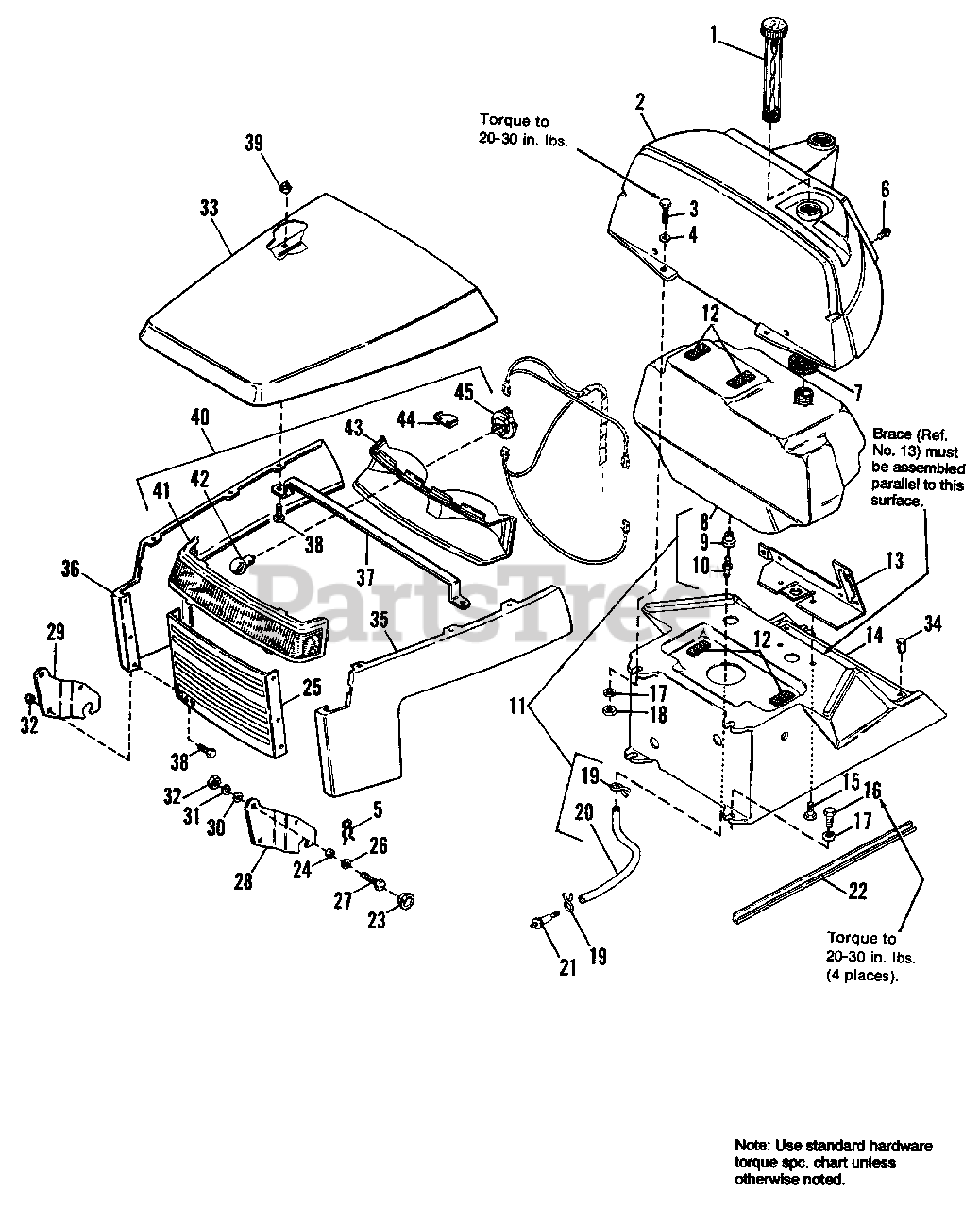

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

2

Simplicity 1708753SM

DASHBOARD, Top

$

$

Not available

3

Simplicity 1921961SM

CAPSCREW, Hex, 1/4-20 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 1921319SM

WASHER, 1/4, std.
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1704628SM

CUP, Hairpin

$4.49

$

In Stock, only 4 left!

0

6

Simplicity 1676880SM

SCREW, Hex, Washer Hd., 1/4-20 x 5/8

$207.99

$

Usually ships in 2-12 days

0

7

Simplicity 1664897SM

WASHER, Foam

$90.99

$

Usually ships in 2-12 days

0

8

TANK, Fuel (See Ref. No. 11)

$

$

Not available

9

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

10

Simplicity 1666447SM

FITTING

$

$

Not available

11

Simplicity 1687038SM

TANK ASSY., Fuel (Incl. Ref. Nos. 8, 9, 10, 19 (Qty. 1) & 20)

$

$

Not available

12

Simplicity 2173335

PAD

$

$

Not available

13

Simplicity 1665301

BRACE

$

$

Not available

14

Simplicity 1707393SM

DASHBOARD, Bottom

$

$

Not available

15

Simplicity 1925592SM

SCREW, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

16

Simplicity 1933958SM

SCREW, Taptite, 1/4-20 x 1

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 1931704SM

LOCKWASHER, Dish, 1/4

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1718678SM

HOSE, Fuel (12" long)

$

$

Not available

21

Simplicity 2173206SM

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

22

Simplicity 1672123

EDGING, Lower Dash

$

$

Not available

23

Simplicity 1704626SM

SPACER, Hood

$6.99

$

In Stock, only 2 left!

0

24

Simplicity 1705249SM

SPACER

$

$

Not available

25

Simplicity 1721203SM

GRILLE
(Superseded to 1721203ASM)

$

$

Not available

26

Simplicity 1705248SM

PIVOT, Hood

$

$

Not available

27

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

28

Simplicity 1708754SM

HINGE, L.H.

$

$

Not available

29

Simplicity 1708755SM

HINGE, R.H.

$

$

Not available

30

Simplicity 1919326SM

WASHER, Plain 5/16

$4.49

$

In Stock, Qty 6

0

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1708750SM

HOOD

$

$

Not available

34

Simplicity 1667248SM

CLIP, Canoe

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 1708751SM

SIDE PANEL, L.H.
(Superseded to 1708751CSM)

$72.99

$

Usually ships in 2-12 days

0

36

Simplicity 1708752SM

SIDE PANEL, R.H.
(Superseded to 1708752CSM)

$64.99

$

Usually ships in 2-12 days

0

37

Simplicity 1708756

BAR-TIE, Hood

$

$

Not available

38

Simplicity 1960295SM

SCREW, Hex, Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

39

Simplicity 1920397SM

NUT, Hex, Nylon-lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1703945SM

HEADLIGHT ASSY. (Incl. Ref. Nos. 41-45)

$164.99

$

In Stock, only 1 left!

0

41

Simplicity 1703248SM

LENS, Headlight

$50.99

$

In Stock, only 1 left!

0

42

Simplicity 1677371SM

BULB, Headlight, 12.8V

$30.99

$

In Stock, only 1 left!

0

43

Simplicity 1703249SM

BEZEL Headlight

$93.99

$

In Stock, only 1 left!

0

44

Simplicity 1703946SM

HEAT SHIELD, Headlight

$

$

Not available

45

Simplicity 1677370SM

SOCKET, Bulb, Headlight

$21.99

$

In Stock, only 2 left!

0
