51170 - Toro 20" Walk-Behind Mower, Electric (SN: 009000001 - 009999999) (1979) MOTOR AND HOUSING ASSEMBLY Parts Diagram

20" Walk-Behind Mower, Electric

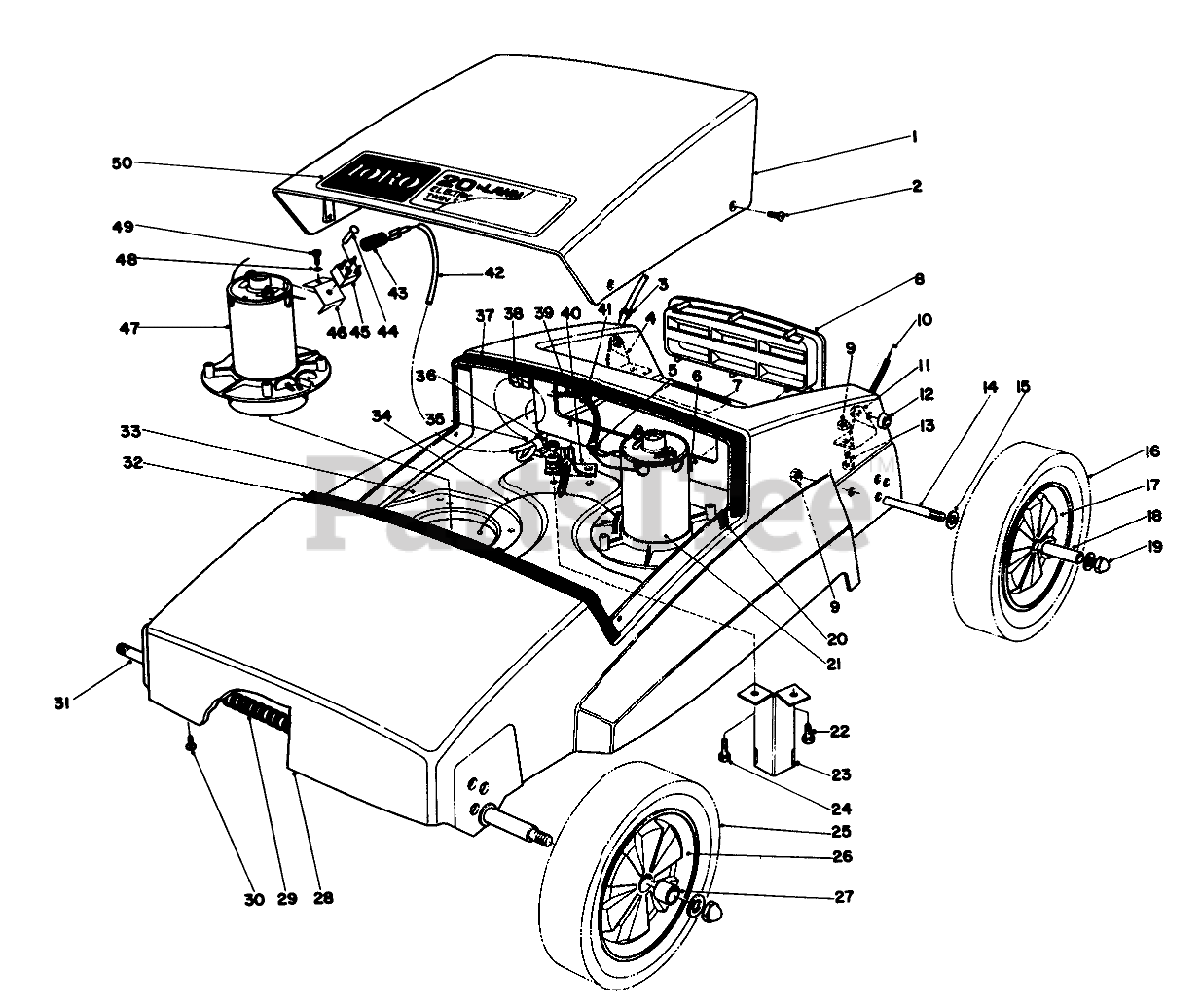

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 34-0040

Cover

$

$

Not available

2

Toro 32144-38

Screw

$

$

Currently unavailable

3

Toro 237-127

5/16 ID BSHG

$

$

Not available

4

Toro 34-1120

Handle Bracket R.H.

$

$

Not available

5

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

6

Toro 32115-3

Nut-Push On

$

$

Not available

7

Toro 42-2120

Decal-Warning

$

$

Not available

8

Toro 34-0440

Louver

$

$

Not available

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

Toro 33-9060

Control Cable-Upper

$

$

Not available

11

Toro 34-1110

Handle Bracket L.H.

$

$

Not available

12

Toro 34-1090

Spacer-Handle

$

$

Not available

13

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

14

Toro 34-0260

Axle-Rear

$

$

Not available

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 5-3543

TIRE

$

$

Not available

17

Toro 34-0390

Rear Wheel-8" (Incl. Ref. #16 & 27)
(Superseded to 27-6200)

$

$

Not available

18

Toro 34-0270

Spacer-Wheel

$

$

Not available

19

Toro 32111-11

Locknut

$

$

Not available

20

Toro 32115-4

Nut-Push On

$

$

Not available

21

Toro 41-9410

Motor L.H. (C.W.)
(Superseded to 43-5980)

$

$

Not available

22

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 42-0450

Blade-Cut Off

$

$

Not available

24

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 23-9250

Tire 7"
(Superseded to 27-6210)

$

$

Not available

26

Toro 34-0380

Front 7" (Incl. Ref. #25 & 27)
(Superseded to 27-6210)

$

$

Not available

27

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

28

Toro 34-0020

Housing-Mower

$

$

Not available

29

Toro 24-7920

COVER-SHAFT, DRIVE

$11.99

$

Usually ships in 3-6 days

0

30

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

31

Toro 34-0250

Axle-Front

$

$

Not available

32

Toro 34-0330

Cushion-Front

$

$

Not available

33

Toro 42-0200

Deck

$

$

Not available

34

Toro 33-9070

Control Cable-Lower

$

$

Not available

35

Toro 250-1

WIRE CLAMP

$

$

Not available

36

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

37

Toro 34-0280

Cushion-Rear

$

$

Not available

38

Toro 32115-7

Clip-Power Cord

$

$

Currently unavailable

39

Toro 34-1130

Sleeve-Motor Lead

$

$

Not available

40

Toro 34-1080

Bracket-Control

$

$

Not available

41

Toro 32115-10

Clip-Motor Lead

$

$

Currently unavailable

42

Toro 34-1060

Wire Harness

$

$

Not available

43

Toro 42-2130

Sleeve-Terminal Cover

$

$

Not available

44

Toro 3290-417

POP RIVET 3/16X.375LG

$

$

Not available

45

Toro 33-9000

Rectifier

$

$

Not available

46

Toro 34-0530

Bracket-Rectifier

$

$

Not available

47

Toro 41-9400

Motor R.H. (C.C.W.)

$

$

Not available

48

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

49

Toro 32144-37

Screw

$

$

Currently unavailable

50

Toro 33-9010

Decal-Cover

$

$

Currently unavailable
