51170 - Toro 20" Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

20" Walk-Behind Mower, Electric

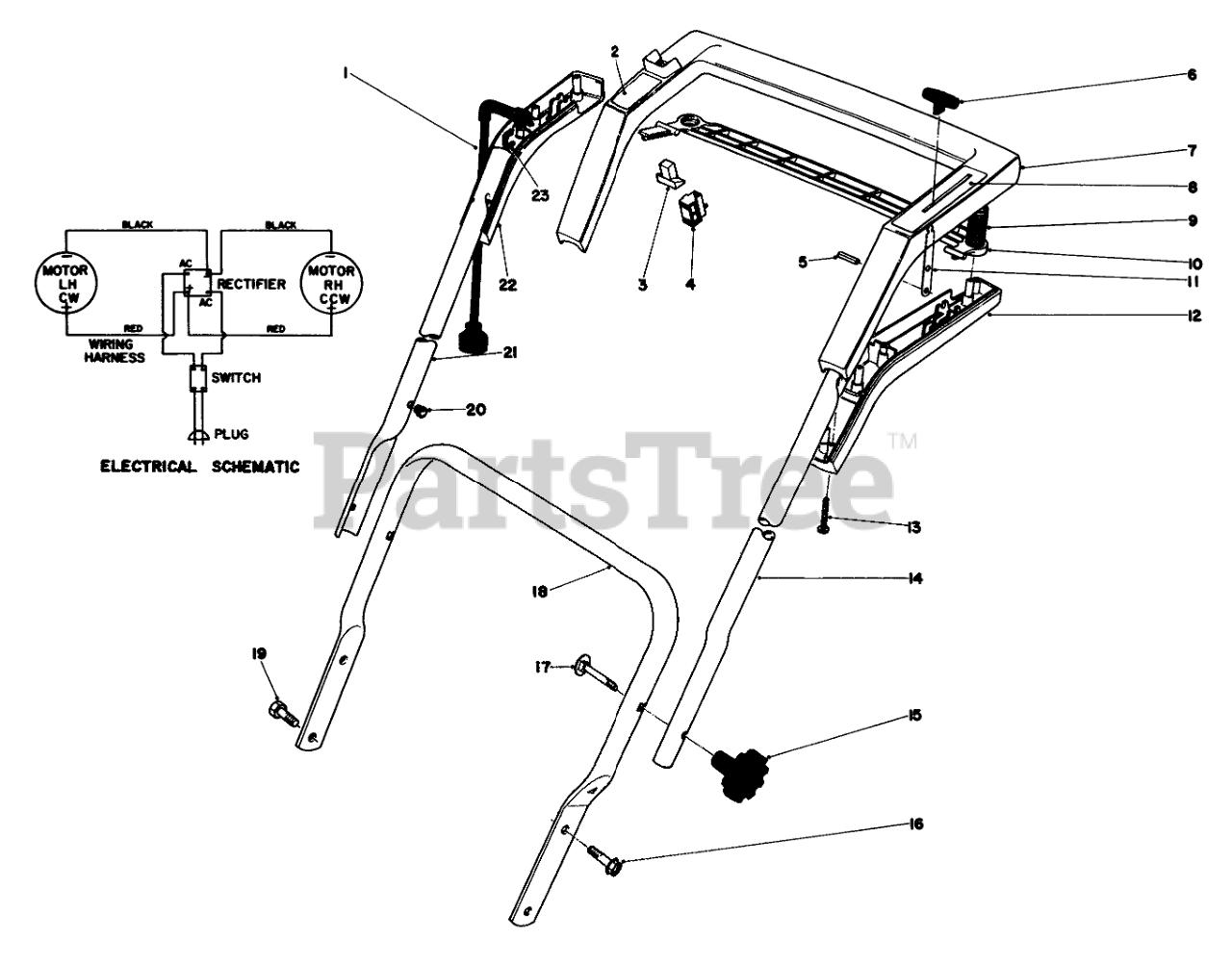

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 43-2340

Plug-Pig Tail

$

$

Not available

2

Toro 33-9040

Decal-On/Off

$

$

Not available

3

Toro 34-0320

SWITCH BUTTON

$

$

Not available

4

Toro 34-0300

Switch-On/Off

$

$

Not available

5

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

6

Toro 233-50

CONTROL KNOB

$3.49

$

In Stock, only 1 left!

0

7

Toro 43-1640

Handle Grip

$

$

Not available

8

Toro 33-9050

Gear

$

$

Not available

9

Toro 34-1030

COMP SPRING

$

$

Not available

10

Toro 34-0290

Squeeze Lever

$

$

Not available

11

Toro 34-1020

Control Lever

$

$

Not available

12

Toro 43-1660

LH HANDLE GRIP COVER

$

$

Not available

13

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

14

Toro 34-0060

Handle-Lower

$

$

Currently unavailable

15

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

16

Toro 32104-28

He Ha. Screw

$

$

Not available

17

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

18

Toro 34-0050

Handle-Lower,

$

$

Not available

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 237-128

Bushing

$

$

Not available

21

Toro 34-0190

Handle-Upper R.H.

$

$

Not available

22

Toro 43-1650

Cover-Handle Grip R.H.

$

$

Not available

23

Toro 218-526

Clamp-Wire

$

$

Not available
