51138 T - Toro 35cm Power Plex 40V MAX Chainsaw (SN: 317000001 - 317999999) (2017) 35CM CORDLESS CHAINSAW ASSEMBLY Parts Diagram

35cm Power Plex 40V MAX Chainsaw

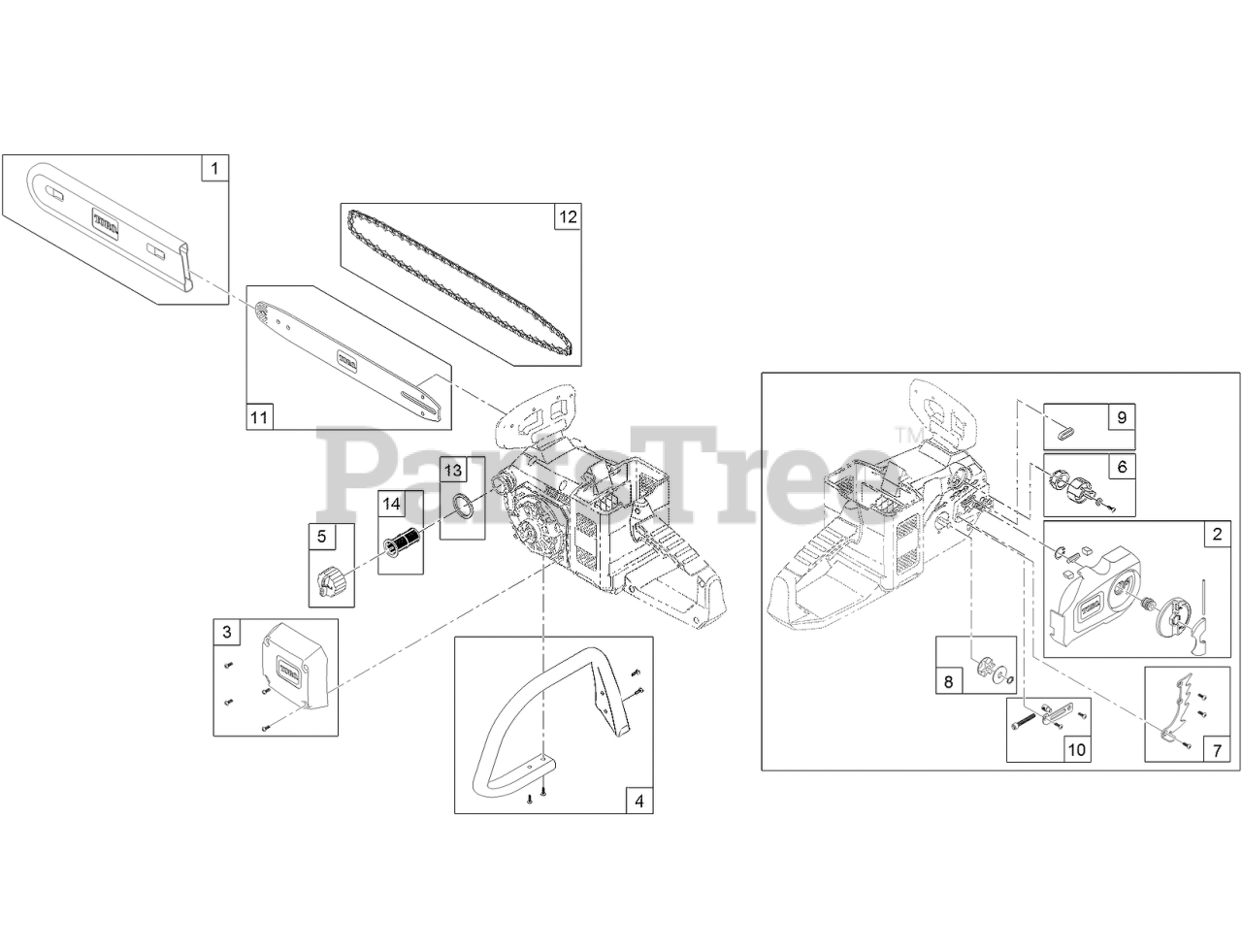

35CM CORDLESS CHAINSAW ASSEMBLY Parts Diagram

  • Title

1

Toro 136-2564

SLEEVE-Bar/CHAIN

$7.49

$

Usually ships in 3-6 days

0

2

Toro 136-2565

CHAIN Bar PANEL ASM

$18.99

$

Usually ships in 3-6 days

0

3

Toro 136-2566

COVER-MOTOR

$10.99

$

Usually ships in 3-6 days

0

4

Toro 136-2567

HANDLE

$14.99

$

Usually ships in 3-6 days

0

5

Toro 136-2642

Cap-Oil, Bar

$3.99

$

Usually ships in 3-6 days

0

6

Toro 136-2569

KNOB-ADJUSTER, Bar AND CHAIN

$14.99

$

Usually ships in 3-6 days

0

7

Toro 136-2570

BUCKING TEETH BRACKET ASM

$11.99

$

Usually ships in 3-6 days

0

8

Toro 136-2583

SPROCKET-DRIVE, CHAIN

$4.99

$

Usually ships in 3-6 days

0

9

Toro 136-2584

GASKET-OIL, Bar/HOUSING

$0.99

$

Usually ships in 3-6 days

0

10

Toro 136-2585

ADJUSTER-Bar PIN AND SCREW

$19.99

$

Usually ships in 3-6 days

0

11

Toro 88580

Bar-REPLACEMENT

$51.99

$

Usually ships in 3-6 days

0

12

Toro 88581TE

CHAIN

$

$

Currently unavailable

13

Toro 136-2643

Gasket-Oil Cap, Bar

$1.49

$

Usually ships in 3-6 days

0

14

Toro 136-2644

Strainer-Oil, Bar

$

$

Not available
