5111 - Troy-Bilt Pony IV Rear-Tine Tiller (SN: S164133 - S186071) HOOD & DEPTH REGULATOR Parts Diagram

Pony IV Rear-Tine Tiller

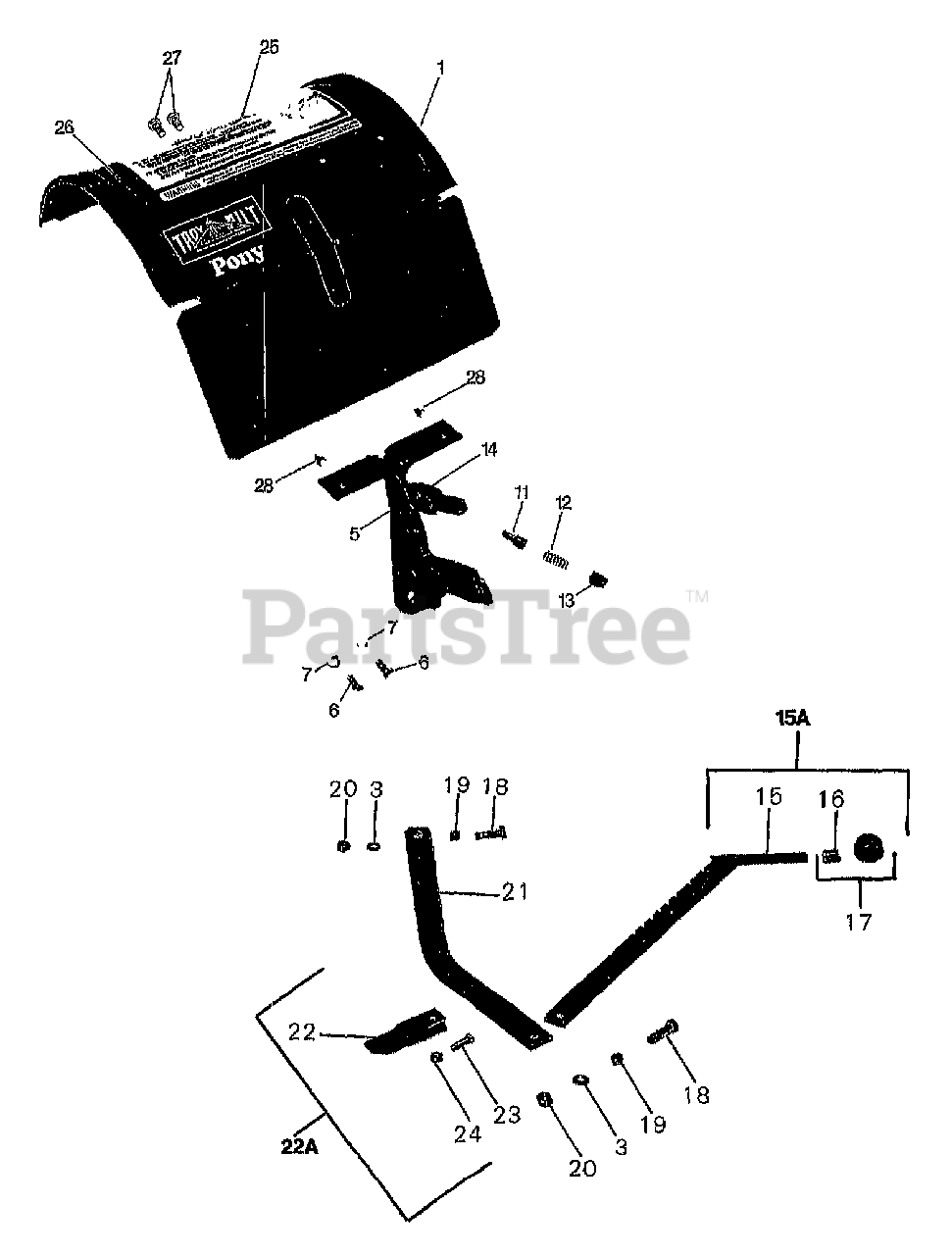

HOOD & DEPTH REGULATOR Parts Diagram

  • Title
1

Troy-Bilt 20732

HOOD W/DECALS (INCL. DECALS #20733 & #20401)

$

$

Currently unavailable

3

Troy-Bilt 9913

WASHER-LK .375

$

$

Currently unavailable

5

Troy-Bilt 2255

KIT-REAR HOOD BRKT (INCL. ROLL PIN #9308)

$

$

Currently unavailable

6

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 (BRACKET TO BEARING CAP)

$

$

Currently unavailable

7

Troy-Bilt 9912

WASHER-LK .312

$

$

Currently unavailable

11

Troy-Bilt 1119

PLUNGER

$

$

Currently unavailable

12

Troy-Bilt 1120

SPRING .406 X 1.25

$

$

Currently unavailable

13

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

14

Troy-Bilt 9308

PIN-ROLL .25 X 1 (SPIRAL)
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

15

0

BAR - NOT AVAIL. SEPARATELY (SEE INDEX 15A)

$

$

Not available

15A

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB (INCL. 15-17)
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 9119

KNOB-CONTROL (INCL. 16)
(Superseded to GW-9119)

$11.99

$

In Stock, Qty 8

0

18

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

19

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 9802

NUT-HEX 3/8-16

$

$

Currently unavailable

21

Troy-Bilt 2121

BAR-DRAG RED

$

$

Currently unavailable

22A

Troy-Bilt 1307

SOD POINT - COMPLETE

$

$

Currently unavailable

22

0

SOD POINT - NOT AVAIL. SEP. (SEE INDEX 22A)

$

$

Not available

23

Troy-Bilt 9701

SCR-HH 1/4-20X.75 G5

$

$

Currently unavailable

24

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

25

Troy-Bilt 20733

DECAL-OPER INST

$

$

Currently unavailable

26

Troy-Bilt 20401

DECAL-HOOD LOGO PONY OPC (MODEL NAME DECAL)

$

$

Currently unavailable

27

Troy-Bilt 9553

SCR-HWH 5/16-18 X .5 STH
(Superseded to 710-0607)

$6.99

$

In Stock, Qty 11

0

28

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
