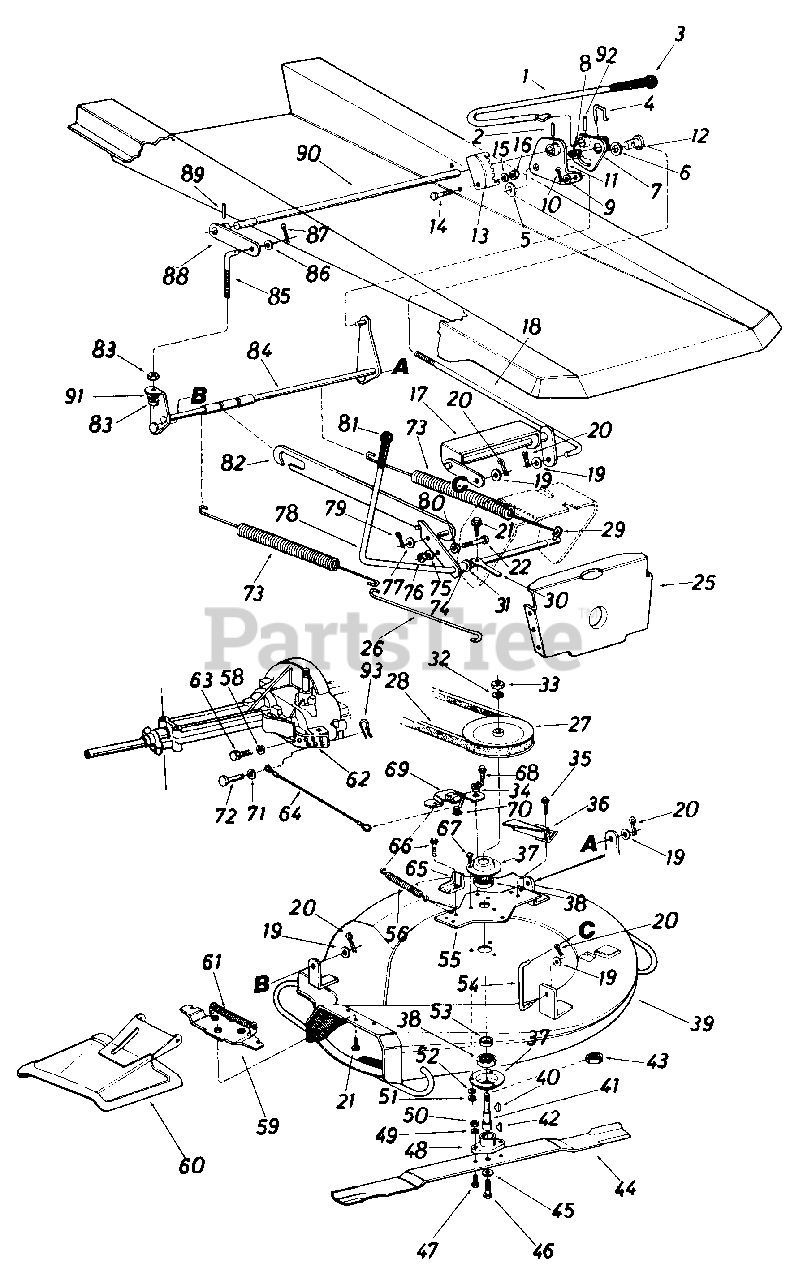

511 (511135) - Cub Cadet Rear-Engine Riding Mower (1985) Riding Mower Part 4 Parts Diagram

Rear-Engine Riding Mower

Riding Mower Part 4 Parts Diagram

  • Title

1

Cub Cadet 747-0418

HANDLE-DECK LIFT

$

$

Currently unavailable

2

Cub Cadet 715-0114

PIN-SPRING SPIRAL 1/4X1.5 HEAVY DT

$9.49

$

In Stock, Qty 5

0

3

Cub Cadet 720-0143

GRIP

$

$

Not available

4

Cub Cadet 714-0166

PIN

Note: (Special)

$

$

Not available

5

Cub Cadet 736-0162

WASHER-FL-.635 ID X .93 OD

$4.49

$

In Stock, Qty 14

0

6

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 15576

BRACKET ASSY-LIFT

$

$

Currently unavailable

8

Cub Cadet 732-0430

SPRING-COMPRESSION

$

$

Not available

9

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet 15578

BRACKET ASSY-LIFT-LH

$

$

Not available

12

Cub Cadet 711-0749

FERRULE

$

$

Not available

13

Cub Cadet 15581

BRACKET-INDEX

$

$

Not available

14

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 15573

LIFT ASSY-DECK-FR

$

$

Not available

18

Cub Cadet 747-0426

ROD-CONNECTING

$

$

Not available

19

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0805

SCREW-HEX
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 15613

BRACKET-PIVOT BAR

$

$

Not available

26

Cub Cadet 732-0439

SPRING-HOOK
(Superseded to 732-0451B)

$

$

Not available

27

Cub Cadet 756-0395

PULLEY

$

$

Not available

28

Cub Cadet 754-0264

BELT-V 1/2 X 52
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 711-0753

PIN-CLEVIS

$

$

Not available

30

Cub Cadet 732-0435

ACTUATOR-SWITCH

$

$

Not available

31

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 736-0158

WASHER-LOCK-5/8

$4.49

$

In Stock, Qty 11

0

33

Cub Cadet 712-0242

NUT-HEX CENTER L-5/8-11
(Superseded to 912-0261)

$

$

Not available

34

Cub Cadet 748-0234

SPACER-SHLD

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-0604

SCREW-HEX WASH HD 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 15653

EXTENSION-BELT COVER

$

$

Currently unavailable

37

Cub Cadet 08253

HOUSING-BRG
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

38

Cub Cadet 741-0919

BEARING-BALL
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

39

Cub Cadet 15628

DECK ASSEMBLY-26 IN

$

$

Currently unavailable

39

Cub Cadet 15630

DECK ASSY-26IN-COMP

Note: (Service Only)

$

$

Currently unavailable

39

Cub Cadet 15628

DECK ASSEMBLY-26 IN

Note: (Service Only)

$

$

Currently unavailable

40

Cub Cadet 714-0388

KEY-3/16 X 5/8
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

41

Cub Cadet 711-0405

SPINDLE-BLADE

$

$

Not available

42

Cub Cadet 714-0365

KEY-HI-PRO #6-5/32 X 5/8 DIA

$5.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 13703

SHIELD-BRG

$

$

Not available

44

Cub Cadet 742-0147

BLADE-26IN
(Superseded to 942-0147)

$

$

Not available

45

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, Qty 8

0

46

Cub Cadet 710-0459

SCREW-HEX 3/8-24 X 1.50 GR.5
(Superseded to 710-0459A)

Note: (Grade 5)

$6.99

$

In Stock, Qty 8

0

47

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

Note: (Grade 5)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 10769

KIT-BLADE ADAPTER

$

$

Not available

49

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

51

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 750-0142

SPACER
(Superseded to 950-0142)

$

$

Not available

54

Cub Cadet 747-0428

LINK-DECK

$

$

Currently unavailable

55

Cub Cadet 15658

GUARD ASSY-BELT

$

$

Currently unavailable

56

Cub Cadet 732-0157

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

59

Cub Cadet 11396

ADAPTER

$

$

Not available

60

Cub Cadet 11634

COVER-CHUTE-COMP

$

$

Not available

61

Cub Cadet 732-0261

SPRING-TORSION

$

$

Not available

62

Cub Cadet 15626

GUARD-BELT-LOWER
(Superseded to 15626B-0637)

$

$

Not available

63

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 727-0290

CABLE ASSY-BRAKE
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 10426

GUARD ASSY-BELT

$

$

Not available

66

Cub Cadet 710-0604

SCREW-HEX WASH HD 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0322

SCREW-HEX SEMS 5/16-18 X 1.00

$

$

Not available

68

Cub Cadet 710-0623

SCREW-HEX WASH SF TAPP 3/8 X 3/4

$4.49

$

In Stock, only 2 left!

0

69

Cub Cadet 16053

BRACKET ASSY

$

$

Not available

70

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

72

Cub Cadet 711-0701

PIN-CLEVIS-1/4X1/2
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

73

Cub Cadet 732-0440

SPRING-EXTENSION

$26.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 750-0515

SPACER

$4.49

$

In Stock, only 4 left!

0

75

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

76

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 15568

LEVER ASSY-BLADE ENG
(Superseded to 15568A)

$

$

Not available

79

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

80

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

81

Cub Cadet 720-0143

GRIP

$

$

Not available

82

Cub Cadet 15644

BRACKET ASSY-DECK DR

$

$

Not available

83

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

84

Cub Cadet 15600

LINK ASSY-RR

$

$

Currently unavailable

85

Cub Cadet 710-0866

SCREW-DECK ADJ 3/8-16 THD

$

$

Not available

86

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 714-0115

COTTER PIN 1/8" Dia X 1.00"

$3.99

$

In Stock, only 2 left!

0

88

Cub Cadet 15609

BRACKET ASSY-LIFT-RH

$

$

Not available

87

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

89

Cub Cadet 715-0114

PIN-SPRING SPIRAL 1/4X1.5 HEAVY DT

$9.49

$

In Stock, Qty 5

0

90

Cub Cadet 738-0550

SHAFT-HGT ADJ-RR

$

$

Not available

91

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

92

Cub Cadet 715-0134

PIN-SPRING SPIR 3/16 X 1.50
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

93

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0
