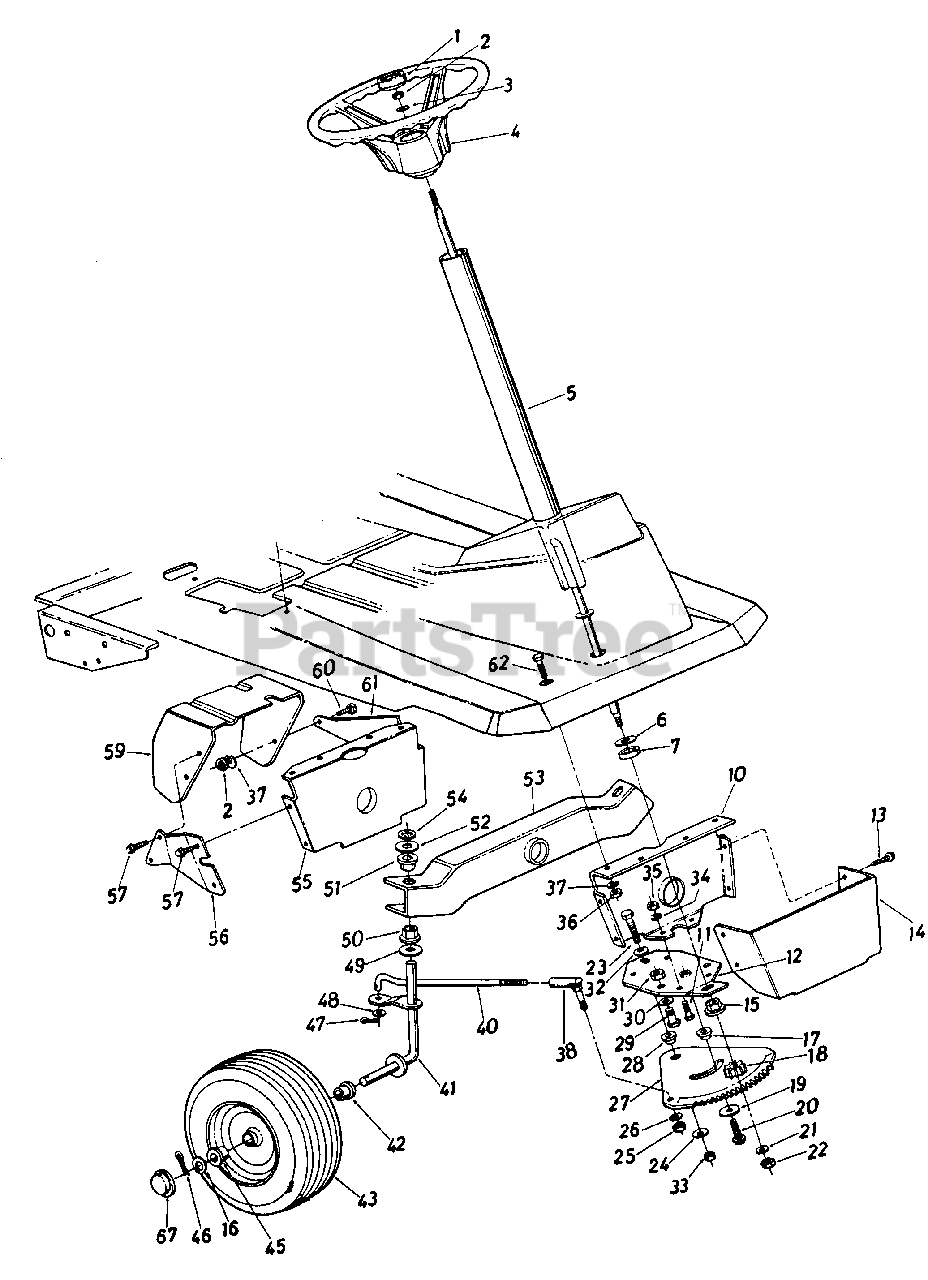

511 (511135) - Cub Cadet Rear-Engine Riding Mower (1985) Riding Mower Part 3 Parts Diagram

Rear-Engine Riding Mower

Riding Mower Part 3 Parts Diagram

  • Title

1

Cub Cadet 731-0220

CAP-STEER WHEEL
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 731-0219

STEERING WHEEL ASSY

$38.99

$

In Stock, only 1 left!

0

5

Cub Cadet 16042

SHAFT ASSY

$

$

Currently unavailable

6

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 750-0532

SPACER
(Superseded to 950-0532)

Note: (Plastic)

$

$

Not available

10

Cub Cadet 15613

BRACKET-PIVOT BAR

$

$

Not available

11

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 15614

BRACKET-ST GEAR SUP

$

$

Not available

13

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 15608

COVER-STEER GEAR

Variations

Cub Cadet 15608-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 15608-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15608-0637

COVER-STEE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15608-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 15608-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

Cub Cadet 15608-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

15

Cub Cadet 741-0225

BEARING-FLANGE
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

Cub Cadet ~UNKNOWN

UNKNOWN

$

$

Currently unavailable

17

Cub Cadet 738-0541

SPACER

$

$

Not available

18

Cub Cadet 748-0290

GEAR-PINION
(Superseded to 948-0290)

$

$

Not available

19

Cub Cadet 736-0320

WASHER

$6.99

$

In Stock, Qty 7

0

20

Cub Cadet 710-0502

SCREW-HEX SLF TAP 3/8 X 1 3/8
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

23

Cub Cadet 710-0191

SCREW 3/8-24X1.25 GR5

Note: (Grade 5)

$4.99

$

In Stock, Qty 9

0

24

Cub Cadet 736-0320

WASHER

$6.99

$

In Stock, Qty 7

0

25

Cub Cadet 712-0241

NUT-HEX 3/8-24

$4.49

$

In Stock, Qty 13

0

26

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 717-0472

SEGMENT-STEERING
(Superseded to 917-0472A)

$

$

Not available

28

Cub Cadet 738-0541

SPACER

$

$

Not available

29

Cub Cadet 710-0689

SCREW-NYLON

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0206

NUT-HEX 1/2-13

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0241

NUT-HEX 3/8-24

$4.49

$

In Stock, Qty 13

0

34

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

UNKNOWN

$

$

Not available

37

UNKNOWN

$

$

Not available

38

Cub Cadet 723-0156

JOINT ASSY-BALL
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

40

Cub Cadet 747-0417

ROD-STEER TIE

$

$

Not available

41

Cub Cadet 15616

AXLE ASSY-RH
(Superseded to 983-0012)

Note: (Not Shown)

$141.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 15617

AXLE ASSY-LH
(Superseded to 983-0011)

Note: (Not Shown)

$

$

Not available

42

Cub Cadet 741-0313

BEARING-FLANGE
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 734-1000

WHEEL ASSY W/TIRE-10.5 X 3.5

$

$

Not available

43

Cub Cadet 737-0146

FITTING-GREASE

$5.49

$

Usually ships in 3-6 days

0

45

UNKNOWN

$

$

Not available

46

Cub Cadet 714-0470

PIN-COTTER-1/8 DIA X 1.25

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0156

WASHER-FL-.635 ID X 1.12 OD X .090

$4.49

$

In Stock, Qty 12

0

50

Cub Cadet 741-0225

BEARING-FLANGE
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

51

UNKNOWN

$

$

Not available

52

Cub Cadet 736-0156

WASHER-FL-.635 ID X 1.12 OD X .090

$4.49

$

In Stock, Qty 12

0

53

Cub Cadet 15610

BAR ASSY-PIVOT
(Superseded to 15610C-0637)

$224.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 726-0159

NUT-PUSH-SPEED
(Superseded to 926-0159B)

$

$

Not available

55

Cub Cadet 15613

BRACKET-PIVOT BAR

$

$

Not available

56

Cub Cadet 15694

BRACKET-REINF-RH

$

$

Not available

57

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 15562

PEDAL ASSY-BRAKE

$

$

Not available

60

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 15699

BRACKET-REINF-LH

$

$

Not available

62

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 731-0484

HUB CAP
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0
