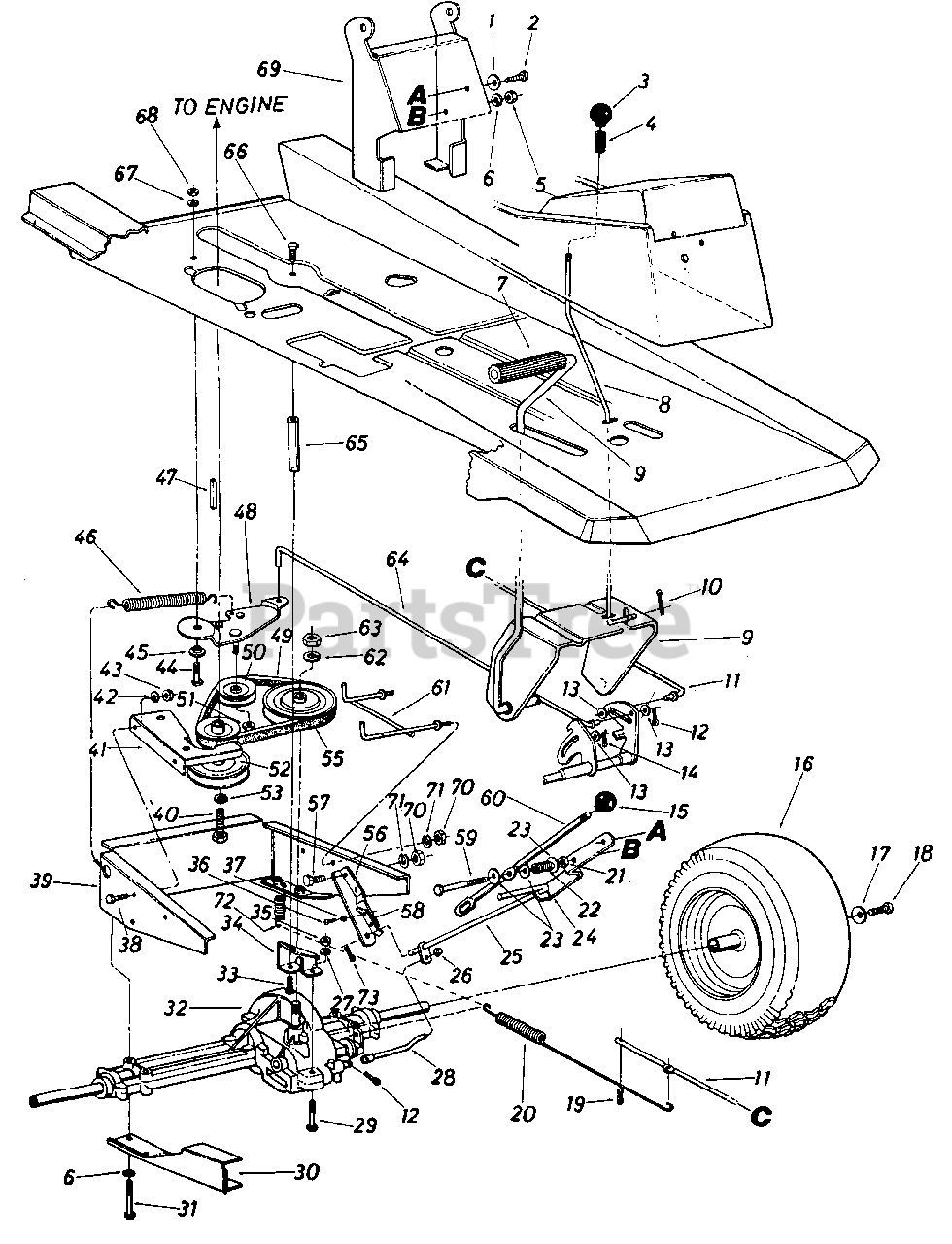

511 (511135) - Cub Cadet Rear-Engine Riding Mower (1985) Riding Mower Part 2 Parts Diagram

Rear-Engine Riding Mower

Riding Mower Part 2 Parts Diagram

  • Title

1

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0187

KNOB

$10.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 732-0437

SPRING-COMPRESSION

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 735-0196

PAD-FOOT
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

8

Cub Cadet 747-0450

ROD-BRAKE LOCK

$

$

Not available

9

Cub Cadet 15562

PEDAL ASSY-BRAKE

$

$

Not available

10

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet 747-0431

ROD-BRAKE

$

$

Not available

12

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 736-0275

WASHER-FL (#46041)

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 720-0165

KNOB-BALL 1-3/8 " DIA.
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

16

Note: REAR WHEEL ASSEMBLY

$

$

Not available

Cub Cadet 734-0523

WHEEL ASSY W/TIRE-13.0 X 5.0 TURF

$

$

Not available

Cub Cadet 734-0517

WHEEL RIM-RR 6.0 X 3.25

$

$

Currently unavailable

Cub Cadet 734-0298

TIRE-TUBELESS-13 X 5.00-6
(Superseded to 734-0298-0901)

Variations

Cub Cadet 734-0298-0901

Tubeless Tire, 13 - Carlisle (0901)

$41.99

$

In Stock, Qty 6

0

Cub Cadet 734-0298-0902

Tubeless Tire, 13 - Dico (0902)

$41.99

$

In Stock, Qty 6

0

Cub Cadet 734-0298-0905

Tubeless Tire, 13 - Duro (0905)

$41.99

$

In Stock, Qty 6

0

$41.99

$

In Stock, Qty 6

0

Cub Cadet 734-0255

VALVE-TUBELESS AIR
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0627

SCREW-CAP LOCK 5/16-24 X .75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0470

PIN-COTTER-1/8 DIA X 1.25

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 732-0389

SPRING-EXTENSION

$

$

Not available

21

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0369

SPRING
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 15659

BRACKET-SHIFT LEVER

$

$

Currently unavailable

25

Cub Cadet 15637

LEVER ASSY-SHIFT

$

$

Not available

26

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

28

Cub Cadet 747-0421

ROD-SHIFT

$

$

Currently unavailable

29

Cub Cadet 710-0136

SCREW-HEX 1/4-20 X 1.75

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 15625

GUARD-BELT-LOWER

$

$

Not available

31

Cub Cadet 710-0176

SCREW-HEX 5/16-18 X 2.75

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 717-0775

TRANSAXLE-1 SP
(Superseded to 753-0537)

$

$

Not available

33

Cub Cadet 710-0180

SCREW-HEX 3/8-24 X .75

$6.99

$

In Stock, only 3 left!

0

34

Cub Cadet 15564

BRACKET-TORQUE ROD

$

$

Not available

35

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

36

Cub Cadet 710-0789

SCREW-C SINK #8X.50

$

$

Currently unavailable

37

Cub Cadet 726-0206

NUT-PUSH

$

$

Currently unavailable

38

Cub Cadet 710-0252

SCREW-HEX 1/4-20 X .75
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 15552

SUPPORT ASSY-TRANS

Variations

Cub Cadet 15552-0637

SUPPORT ASSEMBLY-TRANSPOWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 710-0314

SCREW-HEX 7/16-20 X 1.00

$4.49

$

In Stock, Qty 13

0

39

Cub Cadet 15552

SUPPORT ASSY-TRANS

Variations

Cub Cadet 15552-0637

SUPPORT ASSEMBLY-TRANSPOWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 710-0314

SCREW-HEX 7/16-20 X 1.00

$4.49

$

In Stock, Qty 13

0

41

Cub Cadet 15646

GUARD-ENG BELT-UPR

$

$

Currently unavailable

42

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

43

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

44

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 748-0234

SPACER-SHLD

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 732-0383

SPRING-EXTENSION

$

$

Currently unavailable

47

Cub Cadet 714-0114

KEY-SQ 1/4 X 2.00
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 15651

BRACKET ASSY-IDLER

$

$

Currently unavailable

49

Cub Cadet 754-0249

BELT-V 5/8 X 30

$

$

Not available

50

Cub Cadet 756-0116

PULLEY-V-BELT IDLER
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

52

Cub Cadet 756-0391

PULLEY

$157.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 736-0171

WASHER-LOCK-7/16

$4.49

$

In Stock, Qty 5

0

55

Cub Cadet 756-0394

PULLEY

Note: (Straight)

$

$

Not available

56

Cub Cadet 15624

SUPPORT-SHIFT LEVER

$

$

Currently unavailable

57

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 732-0420

SPRING-SWITCH

$

$

Not available

59

Cub Cadet 710-0395

SCREW-HEX 5/16-18 X 2.25

$4.99

$

In Stock, only 1 left!

0

60

Cub Cadet 747-0430

KIT-SHIFT LEVER

$

$

Currently unavailable

61

Cub Cadet 747-0429

GUARD-BELT

$

$

Currently unavailable

62

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.49

$

In Stock, only 2 left!

0

63

Cub Cadet 712-0206

NUT-HEX 1/2-13

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 747-0423

ROD-CLUTCH

$

$

Not available

65

Cub Cadet 711-0544

ROD-TORQUE

$

$

Currently unavailable

66

Cub Cadet 710-0180

SCREW-HEX 3/8-24 X .75

Note: (Grade 5)

$6.99

$

In Stock, only 3 left!

0

67

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

68

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 15897

BRACKET-SEAT

$

$

Currently unavailable

70

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

71

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

72

Cub Cadet 732-0303

SPRING-EXTENSION
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 11

0

73

Cub Cadet 714-0111

PIN-COTTER-3/32 DIA X 1.00

$4.99

$

In Stock, Qty 13

0
