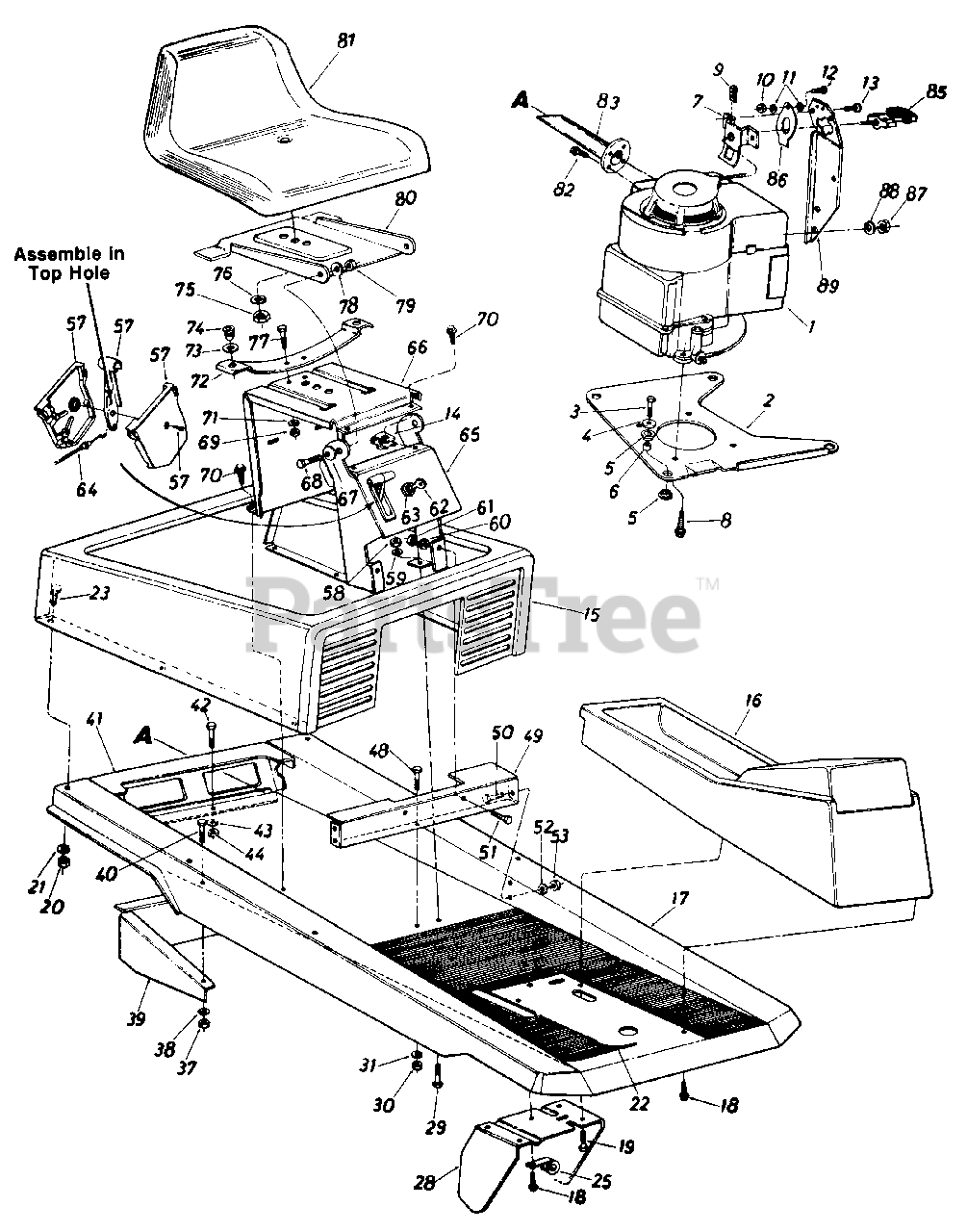

511 (511135) - Cub Cadet Rear-Engine Riding Mower (1985) Riding Mower Part 1 Parts Diagram

Rear-Engine Riding Mower

Riding Mower Part 1 Parts Diagram

  • Title

1

Note: Engine

$

$

Not available

2

Cub Cadet 15572

PLATE-ENGINE MTG
(Superseded to 15572A-0637)

$

$

Not available

3

Cub Cadet 710-0158

SCREW-HEX 5/16-24 X 1.25
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 19

0

4

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.99

$

In Stock, Qty 11

0

5

Cub Cadet 722-0153

MOUNT-ENGINE

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 750-0539

SPACER
(Superseded to 950-0539)

$

$

Not available

7

Cub Cadet 11053

BRACKET ASSY-SWITCH

$

$

Currently unavailable

8

Cub Cadet 710-0502

SCREW-HEX SLF TAP 3/8 X 1 3/8
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 712-0147

NUT-SPEED-10-24

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0121

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0338

WASHER-FIBER

$

$

Not available

12

Cub Cadet 710-0425

SCREW-TRUSS MACH #10-24 X .62

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0351

SCREW-TRUSS MACH

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 726-0211

NUT-U

$4.49

$

In Stock, only 1 left!

0

15

Cub Cadet 15975

COVER ASSY

Note: Color Code 499

$

$

Not available

16

Cub Cadet 731-0717

CONSOLE-FR

$

$

Currently unavailable

17

Cub Cadet 15978

FRAME

Note: Color Code 499

$

$

Not available

18

Cub Cadet 710-0906

SCREW-PLASTIC-5/16X1.0
(Superseded to 710-0323)

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

22

Cub Cadet 735-0220

MAT-FLOOR

$

$

Not available

23

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

25

Cub Cadet 726-0175

CLAMP

$

$

Not available

28

Cub Cadet 15562

PEDAL ASSY-BRAKE

$

$

Not available

29

Cub Cadet 710-0759

SCREW-HEX 5/16-18 X .62

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 15552

SUPPORT ASSY-TRANS

Variations

Cub Cadet 15552-0637

SUPPORT ASSEMBLY-TRANSPOWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 15571

PANEL-FRAME-RR

Variations

Cub Cadet 15571-0498

PANEL-FRAM - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15571-0629

PANEL-FRAM - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15571-0638

PANEL-FRAM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

Cub Cadet 710-0621

SCREW-HEX 5/16-18 X .52
(Superseded to 710-3039)

$

$

Not available

43

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 15604

BRACKET-SEAT SUP

$

$

Not available

50

Cub Cadet 710-0621

SCREW-HEX 5/16-18 X .52
(Superseded to 710-3039)

$

$

Not available

51

Cub Cadet 710-0621

SCREW-HEX 5/16-18 X .52
(Superseded to 710-3039)

$

$

Not available

52

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 831-0692

CONTROL-THROTTLE
(Superseded to 831-0796A)

$21.99

$

In Stock, only 2 left!

0

58

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 725-0201

KEY-IGN (SET OF TWO)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

63

Cub Cadet 725-0464

SWITCH-KEY TYPE
(Superseded to 925-1425)

$35.99

$

In Stock, only 1 left!

0

64

Cub Cadet 746-0503

WIRE-CONTROL
(Superseded to 946-0503)

$

$

Not available

65

Cub Cadet 15897

BRACKET-SEAT

$

$

Currently unavailable

66

Cub Cadet 15606

KIT-SEAT BRKT ASSY

$

$

Not available

67

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 710-0601

SCREW-HEX WASH SF TAPP
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 736-0267

WASHER-FL-.40 X .88 X .060

$4.49

$

In Stock, only 1 left!

0

72

Cub Cadet 732-0431

SPRING-SEAT

$

$

Currently unavailable

73

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$4.49

$

In Stock, only 2 left!

0

74

Cub Cadet 731-0555

GROMMET

$

$

Not available

75

Cub Cadet 712-0206

NUT-HEX 1/2-13

$4.49

$

In Stock, Qty 20+

0

76

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.49

$

In Stock, Qty 5

0

77

Cub Cadet 710-0759

SCREW-HEX 5/16-18 X .62

$6.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

80

Cub Cadet 15607

BRACKET-SEAT PIVOT
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 757-0264

SEAT

$

$

Not available

82

Cub Cadet 710-0407

SCREW-SL HEX SLF EX

$

$

Not available

83

Cub Cadet 751-0341

PIPE ASSY-EXHAUST

$

$

Not available

85

Cub Cadet 11263

HANDLE-PLASTIC

Note: (Starter Rope)

$

$

Not available

86

Cub Cadet 732-0257

SPRING-SWITCH

$

$

Not available

87

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

88

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

89

Cub Cadet 15655

BRACKET-ROPE HDLE

$

$

Not available
