511-059N400 - MTD Walk-Behind Mower (1991) Transmission Parts Diagram

Walk-Behind Mower

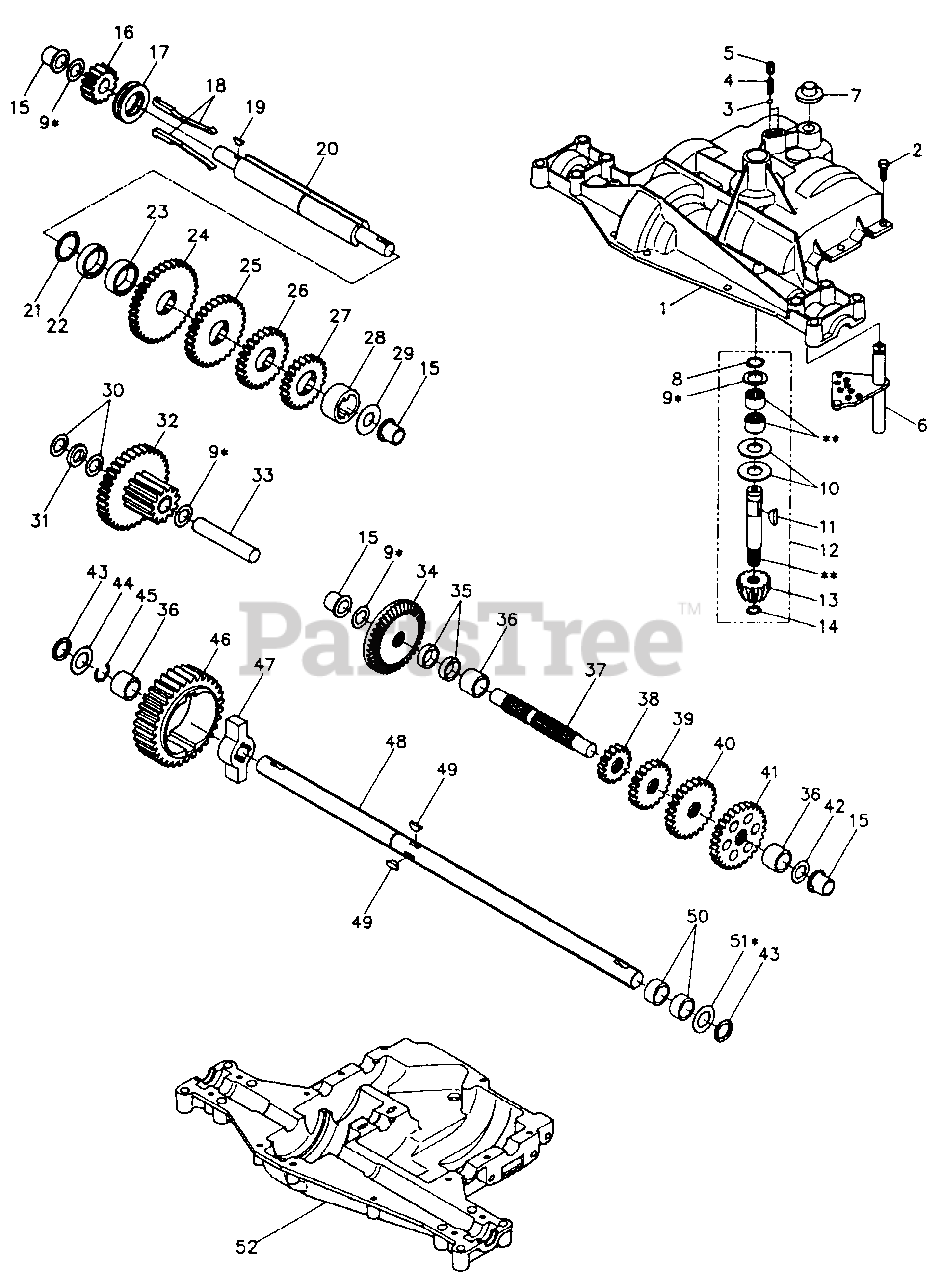

Transmission Parts Diagram

  • Title

1

MTD BN-PL4807

Housing, Upper 3865A

$

$

Currently unavailable

2

MTD BN-PL4759

Screw, Tapping, 1/4 - 20 x .734 LG. 1919

$

$

Not available

3

MTD BN-PL4745

Ball, Detent 1151

$

$

Currently unavailable

4

MTD BN-PL4782

Spring, Detent 3626

$

$

Currently unavailable

5

MTD BN-PL4779

Screw, Set 3623

$

$

Currently unavailable

6

MTD BN-PL4819

Shifter Assembly 4265

$

$

Currently unavailable

7

MTD BN-PL4856

Boot, Shiner 5024

$

$

Not available

8

MTD BN-PL4743

Ring, Retaining 1099

$

$

Not available

9

MTD BN-PL4763

Washer, Plain, .632 x 1.00 x .010 1959

$

$

Currently unavailable

MTD BN-PL4756

Washer, Plain, .632 x 1.00 x .020 1441
(Superseded to 936-0349)

$4.49

$

In Stock, Qty 20+

0

MTD BN-PL4744

Washer, Plain, .632 x 1.00 x .060 1145

$

$

Not available

MTD BN-PL4742

Washer, Plain, .632 x 1.00 x .031 1082
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

MTD BN-PL4758

Washer, Plain, .632 x 1.00 x .015 1708

$

$

Currently unavailable

MTD BN-PL4741

Washer, Plain, .632 x 1 00 x .041 1068
(Superseded to 936-0337)

$4.49

$

In Stock, Qty 9

0

MTD BN-PL4754

Washer, Plain, .632 x 1.00 x .036 1424

$

$

Not available

MTD BN-PL4746

Washer, Plain, .632 x 1.00 x .082 1319

$

$

Currently unavailable

MTD BN-PL4752

Washer, Plain, .632 x 1.00 x .026 1423

$

$

Not available

MTD BN-PL4747

Washer, Plain, .632 x 1.00 x .050 1358

$

$

Not available

MTD BN-PL4755

Washer, Plain, .632 x 1.00 x .046 1425

$

$

Not available

10

MTD BN-PL4816

Washer, Plain, .632 x 1.38 x .046 3876

$

$

Currently unavailable

11

MTD BN-PL4749

Key, Woodruff, #9 1374
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

12

MTD BN-PL4830

Input Shatt Kit Assembly 4559

$

$

Not available

13

MTD BN-PL4778

Pinion, Bevel, 14T 3590

$

$

Not available

14

MTD BN-PL4781

Ring, Retaining 3624

$

$

Currently unavailable

15

MTD BN-PL4757

Bearing, Flange 1542

$

$

Not available

16

MTD BN-PL4800

Gear, Spur, 14T 3773

$

$

Currently unavailable

17

MTD BN-PL4786

Collar, Clutch 3631

$

$

Currently unavailable

18

MTD BN-PL4803

Key, Clutch 3828

$

$

Currently unavailable

19

MTD BN-PL4748

Key, Woodruff, #3 1369
(Superseded to 914-0112)

$

$

Not available

20

MTD BN-PL4817

Shaft, Intermediate 3883

$

$

Currently unavailable

21

MTD BN-PL4783

Ring, Retaining 3627

$

$

Currently unavailable

22

MTD BN-PL4858

Spacer, 1.134 x 1.45 x .375 5029

$

$

Currently unavailable

23

MTD BN-PL4805

Spacer, 1.134 x 1.45 x .494 3841

$

$

Currently unavailable

24

MTD BN-PL4802

Gear, Spur, 35T 3785

$

$

Currently unavailable

25

MTD BN-PL4809

Gear, Spur, 30T 3867

$

$

Currently unavailable

26

MTD BN-PL4801

Gear, Spur, 25T 3783

$

$

Currently unavailable

27

MTD BN-PL4815

Gear, Spur, 22T 3869

$

$

Currently unavailable

28

MTD BN-PL4857

Spacer, 1.133 x 1.50 x .750 5026

$

$

Currently unavailable

29

MTD BN-PL4784

Washer, Plain, .640 x 1.37 x .061 3628

$

$

Currently unavailable

30

MTD BN-PL4752

Washer, Plain, .632 x 1.00 x .026 1423

$

$

Not available

31

MTD BN-PL4777

Spacer, .630 x 1.00 x .169 3422

$

$

Currently unavailable

32

MTD BN-PL4822

Gear. Comb. 12T & 35TAssembly 4286

$

$

Currently unavailable

33

MTD BN-PL4818

Shatt, Idler 3967

$

$

Currently unavailable

34

MTD BN-PL4834

Gear, Bevel, 42T 5012

$

$

Not available

35

MTD BN-PL4785

Spacer .781 x 1.00 x .281 3630

$

$

Currently unavailable

36

MTD BN-PL4791

Spacer .781 x 1.00 x .750 3684

$

$

Not available

37

MTD BN-PL4838

Shaft Drive 5015

$

$

Currently unavailable

38

MTD BN-PL4792

Gear Spur, 15T 3707

$

$

Currently unavailable

39

MTD BN-PL4808

Gear, Spur, 20T 3866

$

$

Currently unavailable

40

MTD BN-PL4793

Gear, Spur, 25T 3719

$

$

Currently unavailable

41

MTD BN-PL4810

Gear, Spur, 28T 3868

$

$

Currently unavailable

42

MTD BN-PL4744

Washer, Plain, .632 x 1.00 x .060 1145

$

$

Not available

43

MTD BN-PL4774

Seal, Felt 3191

$

$

Not available

44

MTD BN-PL4775

Washer, Plain, .758 x 1.25 x .040 3198

$

$

Not available

45

MTD BN-PL4860

Ring, Retaining 5031

$

$

Currently unavailable

46

MTD BN-PL4804

Gear, Spur, 32T 3839

$

$

Currently unavailable

47

MTD BN-PL4864

Cross, Axle 5032

$

$

Not available

48

MTD BN-PL4859

Axle 5030

$

$

Currently unavailable

49

MTD BN-PL4750

Key, Wocdruff, #61 1375

$

$

Not available

50

MTD BN-PL4854

Spacer, .781 x 1.00 x .494 5016

$

$

Currently unavailable

51

MTD BN-PL4776

Washer, Plain, .758 x 1.25 x .020 3408

$

$

Currently unavailable

MTD BN-PL4766

Washer, Plain, .758 x 1.25 x .062 3180

$

$

Not available

MTD BN-PL4775

Washer, Plain, .758 x 1.25 x .040 3198

$

$

Not available

MTD BN-PL4795

Washer, Plain, .758 x 1.25 x .035 3733

$

$

Currently unavailable

MTD BN-PL4799

Washer, Plain, .758 x 1.12 x .010 3749

$

$

Currently unavailable

MTD BN-PL4767

Washer, Plain, .758 x 1.25 x .031 3184

$

$

Currently unavailable

MTD BN-PL4790

Washer, Plain, .758 x 1.25 x .015 3652

$

$

Currently unavailable

MTD BN-PL4794

Washer, Plain, .758 x 1.25 x .025 3732

$

$

Currently unavailable

MTD BN-PL4797

Washer, Plain, .758 x 1.25 x .050 3735

$

$

Currently unavailable

MTD BN-PL4798

Washer, Plain, .758 x 1.25 x .055 3736

$

$

Currently unavailable

MTD BN-PL4796

Washer, Plain, .758 x 1.25 x .045 3734

$

$

Currently unavailable

52

MTD BN-PL4806

Housing, Lower 3864B

$

$

Currently unavailable

MTD BN-PL4826

Grease 4300

$

$

Currently unavailable
