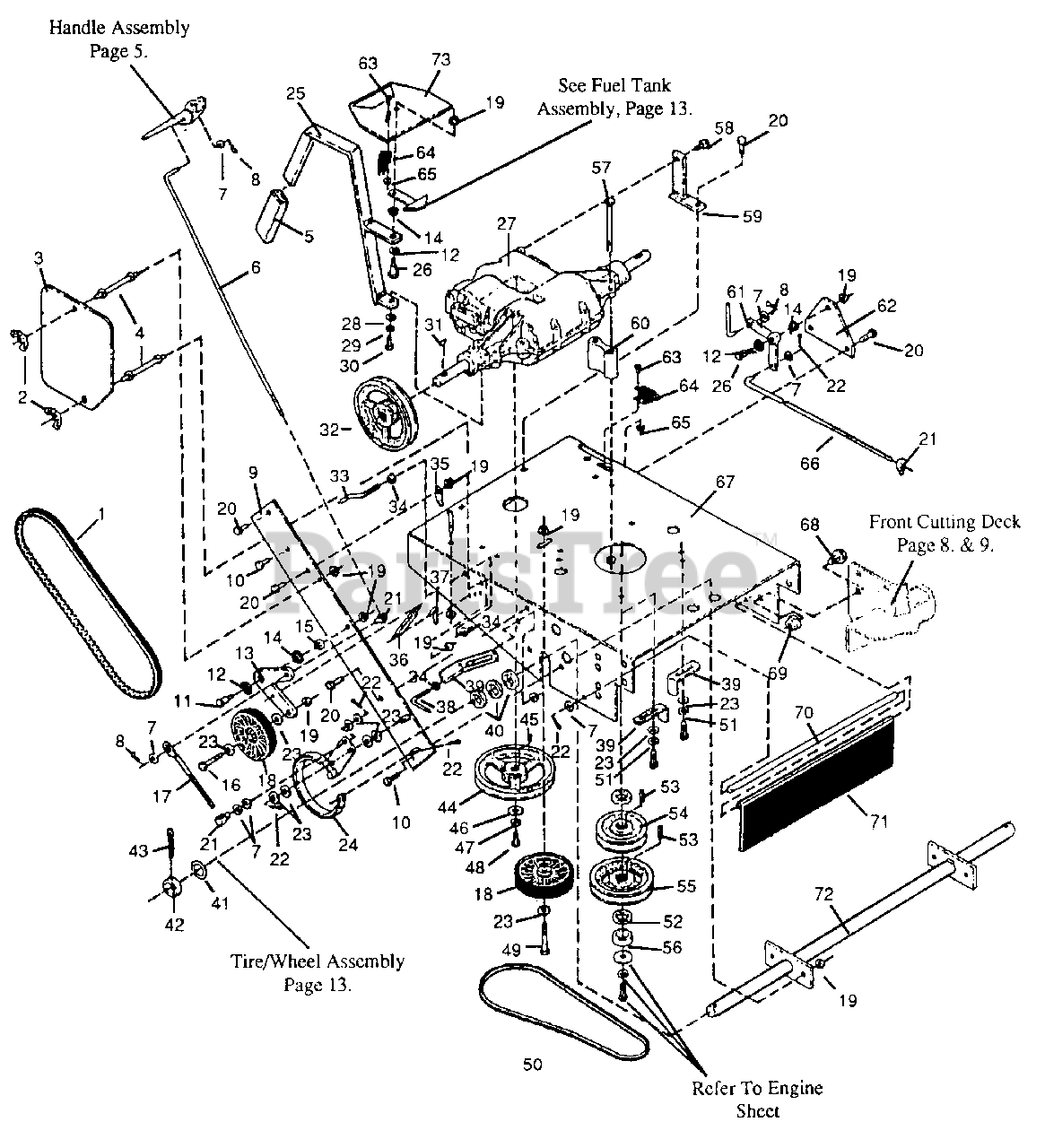

511-059N400 - MTD Walk-Behind Mower (1991) Rear Parts Diagram

Walk-Behind Mower

Rear Parts Diagram

  • Title

1

MTD BN-PL8153

Belt, Traction

$

$

Not available

2

MTD BN-PL8060

Wing Nut

$

$

Currently unavailable

3

MTD BN-PL4704

Tracbon Guard

$

$

Currently unavailable

4

MTD BN-PL8053

Stud, Traction Guard

$

$

Not available

5

MTD BN-PG771

Gnp, Flat Handle

$

$

Currently unavailable

6

MTD BN-PL5038

Traction Control Rod

$

$

Currently unavailable

7

MTD BN-Z34003

5/16- Flat Washer

$

$

Currently unavailable

8

MTD BN-Z49001

Hair Pin Clip

$

$

Currently unavailable

9

MTD BN-PL4702WL

Lower Handle, Left

$

$

Not available

MTD BN-PL4703WR

Lower Handle, Right

$

$

Not available

10

MTD BN-Z24006

3/8"-16 x 1 Hex Hd Cap Screw
(Superseded to 910-0253)

$4.49

$

In Stock, Qty 20+

0

11

MTD BN-PL4507

Shoulder Bolt

$

$

Currently unavailable

12

MTD BN-PL5031

Belleville Disc Washer

$

$

Not available

13

MTD BN-PL5024

Bellaank - Acute Angle

$

$

Currently unavailable

14

MTD BN-PL5023

Snap-ln Bushing

$

$

Not available

15

MTD BN-PL5008

Spacer - Shoulder

$

$

Currently unavailable

16

MTD BN-Z24014

3/8 -16 x 2- Hex Hd Cap Screw
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

17

MTD BN-PL1035

Rod, Brake

$

$

Currently unavailable

18

MTD BN-PL8037A

Idler Pulley

$

$

Currently unavailable

19

MTD BN-Z30004

3/8 -16 Flange Nut

$

$

Currently unavailable

20

MTD BN-Z24004

3/8"- 16 x 3v4 Hex Hd Cap Screw
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

21

MTD BN-PL0355

Swivel

$

$

Not available

22

MTD BN-Z50001

3/32 x 1/2- Cotter Pin
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

23

MTD BN-Z34004

3/8 Flat Washer

$

$

Currently unavailable

24

MTD BN-PL8041WL

Brahe, Traction Wheel, Left

$

$

Not available

MTD BN-PL8042WR

Brake, Traction Wheel, Right

$

$

Not available

25

MTD BN-PL4709W

Gear Shift Lever

$

$

Not available

26

MTD BN-PL5013

Shoulder Bolt

$

$

Not available

27

MTD BN-PL4714

Transmission

$

$

Not available

28

MTD BN-Z34002

1/4- Flat Washer

$

$

Currently unavailable

29

MTD BN-Z37002

1/4 Spring Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

MTD BN-Z14102

1/4 - 28 x 1/2' Hex Hd Cap Screw
(Superseded to 710-0230)

$

$

Not available

31

MTD BN-PL8606

Woodruff Key

$

$

Currently unavailable

32

MTD BN-PL4715

Sheave, Transmission Output

$

$

Not available

33

MTD BN-PL0112

Belt guide

$

$

Currently unavailable

34

MTD BN-Z30003

5/16 -18 Flange Nut

$

$

Not available

35

MTD BN-PL0445

Support Rod

$

$

Currently unavailable

36

MTD BN-PL0031

Spnng

$

$

Not available

37

MTD BN-PL0032

Clip

$

$

Currently unavailable

38

MTD BN-PL1124

Scrapper

$

$

Currently unavailable

39

MTD BN-PL1125

Beltguide

$

$

Not available

40

MTD BN-Z34012

7/8 Flat Washer

$

$

Currently unavailable

41

MTD BN-Z35012

7/8' Machinery Bushing

$

$

Currently unavailable

42

MTD BN-PL1157

Collar, Axle

$

$

Currently unavailable

43

MTD BN-Z51030

3/16' x 2' Cotter Pin

$

$

Currently unavailable

44

MTD BN-PL4716

Sheave, Transmission Input

$

$

Currently unavailable

45

MTD BN-PL4749

#9 Woodnuff Key
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

46

MTD BN-PL8150

Washer, Special

$

$

Currently unavailable

47

MTD BN-Z37002

1/4' Spring Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

48

MTD BN-Z14003

1/4' - 20 x 5/8' Hex. Hd. Cap Screw
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

49

MTD BN-Z24012

3/8' -16 x 1-3/4' Hex. Hd. Cap Screw
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

50

MTD BN-PL8001

Belt. Transmission Input

$

$

Not available

51

MTD BN-Z37004

3/8' Spring Lock Washer
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

52

MTD BN-PL8110

1/4' Engine Sheave Spacer

$

$

Currently unavailable

53

MTD BN-PL0596

1/4' x 1/4' x 1' Square Key

$

$

Not available

54

MTD BN-PL8118

Pulley, Engine To Transmission

$

$

Not available

55

MTD BN-PL4727

Pulley, Engine To Blade

$

$

Not available

56

MTD BN-PL8109

7/16' Engine Sheave Spacer

$

$

Currently unavailable

57

MTD BN-Z19036

5/16' -18 x 4-3/4' Hex. Hd. Cap Screw
(Superseded to 710-0974)

$11.99

$

Usually ships in 3-6 days

0

58

MTD BN-Z61004

5/16' -18 x 3/4' Self-Tapping Screw

$

$

Currently unavailable

59

MTD BN-PL4706

Transmission Support

$

$

Currently unavailable

60

MTD BN-PL8019

Spacer, Transmission Mount

$

$

Currently unavailable

61

MTD BN-PL5026

Bellaank- 90 Degree Legs

$

$

Currently unavailable

62

MTD BN-PL4705

Brkt., Blade Engagement Bellcrank

$

$

Currently unavailable

63

MTD BN-Z11002

10 - 24 x 1/2' Pan Hd. Mach. Screw

$

$

Currently unavailable

64

MTD BN-PL4518

Interlock Switch

$

$

Currently unavailable

65

MTD BN-Z30001

10 - 24 Keps Nut

$

$

Not available

66

MTD BN-PL0955

Rod, Blade Engagement

$

$

Currently unavailable

67

MTD BN-PL4701

Frame, Power Deck Unit

$

$

Currently unavailable

68

MTD BN-Z62006

1/2' -13 x 1' Hex. Hd. Cap Screw

$

$

Currently unavailable

69

MTD BN-Z30006

1/2' -13 Flange Nut

$

$

Currently unavailable

70

MTD BN-PL5018

Rod, Safety Flap

$

$

Currently unavailable

71

MTD BN-PL5017

Safety Flap

$

$

Not available

72

MTD BN-PL4708W

Axle

$

$

Currently unavailable

73

MTD BN-PL4722A

Gear Selector Plate W/Decal

$

$

Currently unavailable
