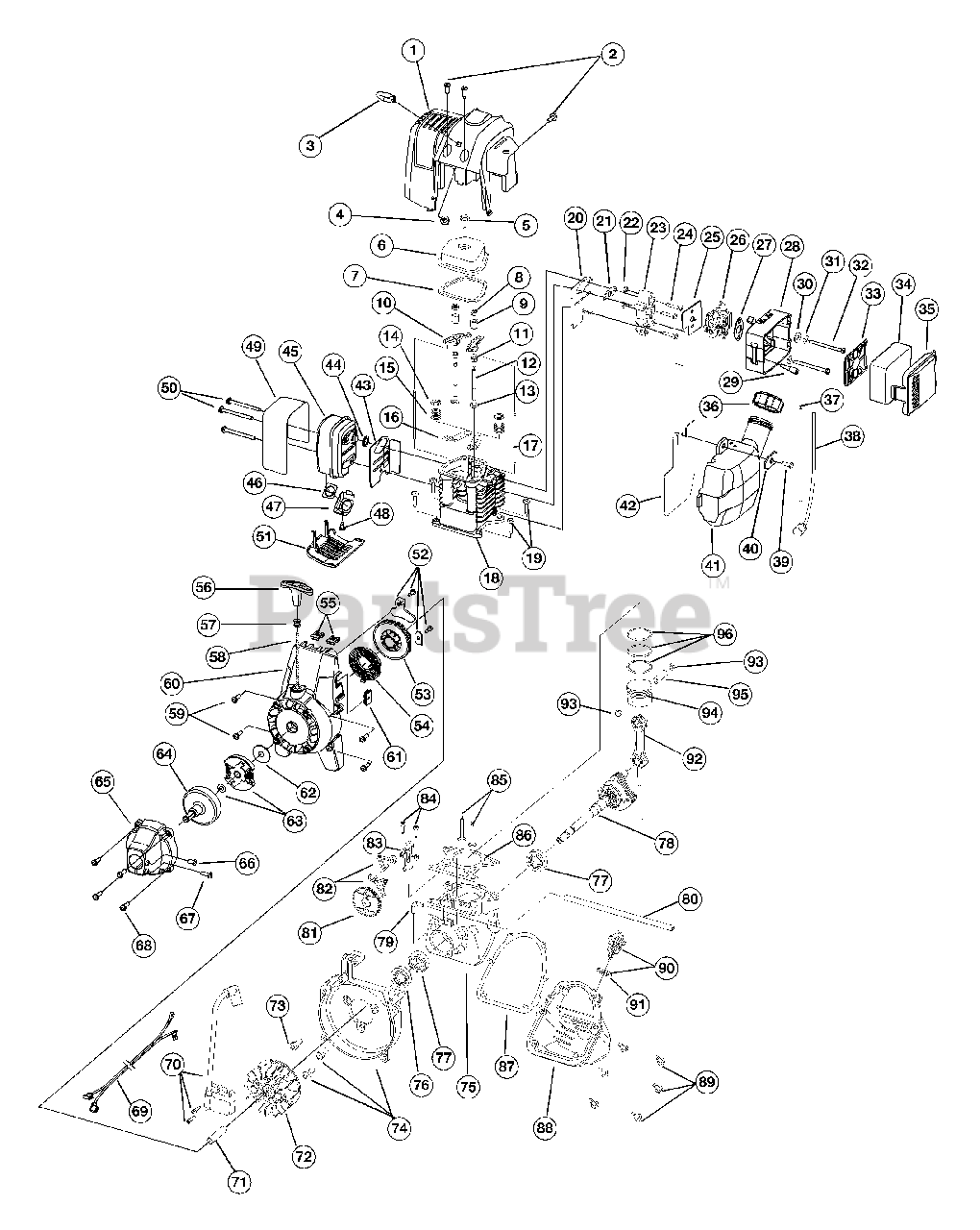

510r (21AK515G034) - Ryobi Tiller Engine Parts Parts Diagram

Tiller

Engine Parts Parts Diagram

  • Title

1

MTD 182650

Engine Cover

$

$

Currently unavailable

2

MTD 182339

Engine Cover Screws

$

$

Currently unavailable

3

MTD 182651

Starter Rope Eyelet

$

$

Currently unavailable

4

MTD 182652

Eyelet Nut

$

$

Currently unavailable

5

MTD 181025

Valve Cover Screw

$

$

Currently unavailable

6

MTD 182098

Valve Cover

$

$

Currently unavailable

7

MTD 182099

Valve Cover Gasket

$

$

Currently unavailable

8

MTD 182340

Rocker Adjustment Nut

$

$

Currently unavailable

9

MTD 182101

Rocker Arm Pivot

$

$

Currently unavailable

10

MTD 182100

Rocker Arm

$

$

Currently unavailable

11

MTD 181034

Hex Nut

$

$

Currently unavailable

12

MTD 182341

Rocker Arm Stud

$

$

Currently unavailable

13

MTD 181035

Washer

$

$

Currently unavailable

14

MTD 182103

Valve Spring Retainer

$

$

Currently unavailable

15

MTD 181038

Valve Spring

$

$

Currently unavailable

16

MTD 182102

Push Rod Guide

$

$

Currently unavailable

17

MTD 181033

Push Rod

$

$

Currently unavailable

18

MTD 182653

Cylinder Head

$

$

Currently unavailable

19

MTD 182344

Cylinder Screw

$

$

Currently unavailable

20

MTD 182345

Intake Baffle

$

$

Currently unavailable

21

MTD 182749

Carburetor Mount Gasket

$

$

Currently unavailable

22

MTD 181034

Nut

$

$

Currently unavailable

23

MTD 182347

Carburetor Mount

Note: (includes 22)

$

$

Currently unavailable

24

MTD 182348

Carburetor Mount Screw

$

$

Currently unavailable

25

MTD 182732

Carburetor Gasket

$

$

Currently unavailable

26

MTD 182654

Carburetor with Primer

$

$

Currently unavailable

27

MTD 181056

Air Filter Gasket

$

$

Currently unavailable

28

MTD 182655

Air Filter Cover Assembly

Note: (includes 29, 30, 33-35)

$

$

Currently unavailable

29

MTD 182097

Breather Tube Assembly

$

$

Currently unavailable

30

MTD 182656

Grommet Washer

$

$

Currently unavailable

31

MTD 182409

Washer

$

$

Currently unavailable

32

MTD 181750

Air Filter Mounting Screw

$

$

Currently unavailable

33

MTD 182657

Air Filter Plate

$

$

Currently unavailable

34

MTD 182658

Air Filter

$

$

Currently unavailable

35

MTD 182659

Air Filter Cover

$

$

Currently unavailable

36

MTD 182271

Fuel Cap

$

$

Currently unavailable

37

MTD 182352

Fuel Return Line

$

$

Currently unavailable

38

MTD 182353

Fuel Pick-Up Line with Filter

$

$

Currently unavailable

39

MTD 181080

Screw

$

$

Currently unavailable

40

MTD 182354

Washer

$

$

Currently unavailable

41

MTD 182660

Fuel Tank Assembly

Note: (includes 36-38)

$

$

Currently unavailable

42

MTD 182356

Fuel Tank Shield

$

$

Currently unavailable

43

MTD 182358

Muffler Baffle

$

$

Currently unavailable

44

MTD 181048

Muffler Gasket

$

$

Currently unavailable

45

MTD 182359

Muffler

Note: (includes 44)

$

$

Currently unavailable

46

MTD 180890

Spark Arrestor Screen

$

$

Currently unavailable

47

MTD 181045

Screen Cover

$

$

Currently unavailable

48

MTD 181046

Screw

$

$

Currently unavailable

49

MTD 182360

Muffler Shield
(Superseded to TC-30727)

$7.49

$

In Stock, only 2 left!

0

50

MTD 182361

Muffler Mounting Screw

$

$

Currently unavailable

51

MTD 182362

Muffler Cover

$

$

Currently unavailable

52

MTD 182363

Pulley Retainer Assembly

$

$

Currently unavailable

53

MTD 182748

Recoil Pulley

$

$

Currently unavailable

54

MTD 613102

Recoil Spring

$

$

Currently unavailable

55

MTD 182366

Nut Clip

$

$

Currently unavailable

56

MTD 181079

Pull Handle

$

$

Currently unavailable

57

MTD 611061

Rope Guide

$

$

Currently unavailable

58

MTD 613103

Rope

$

$

Currently unavailable

59

MTD 181020

Starter Housing Screw

$

$

Currently unavailable

60

MTD 182662

Starter Housing Assembly

Note: (includes 52-59)

$

$

Currently unavailable

61

MTD 182537

Wire Grommet

$

$

Currently unavailable

62

MTD 182368

Clutch Washer

$

$

Currently unavailable

63

MTD 182369

Clutch with Washer

$

$

Currently unavailable

64

MTD 153592

Clutch Drum

$

$

Currently unavailable

65

MTD 182364

Clutch Cover

$

$

Currently unavailable

66

MTD 145569

Anti-Rotation Screw

$

$

Currently unavailable

67

MTD 181345

Screw

$

$

Currently unavailable

68

MTD 181080

Clutch Cover Screw

$

$

Currently unavailable

69

MTD 182665

Switch Wire Assembly

$

$

Currently unavailable

70

MTD 182725

Ignition Module with Screws

$

$

Currently unavailable

71

MTD 181065

Spacer

$

$

Currently unavailable

72

MTD 182736

Flywheel

$

$

Currently unavailable

73

MTD 181861

Screw

$

$

Currently unavailable

74

MTD 182743

Shroud Assembly with Screws

Note: (includes 72)

$

$

Currently unavailable

75

MTD 182376

Crankcase Assembly

Note: (includes 75-79)

$

$

Currently unavailable

76

MTD 610309

Oil Seal

$

$

Currently unavailable

77

MTD 182372

Bearing

$

$

Currently unavailable

78

MTD 182380

Crankshaft

$

$

Currently unavailable

79

MTD 182375

90° Elbow

$

$

Currently unavailable

80

MTD 182379

Breather Hose

$

$

Currently unavailable

81

MTD 181015

Cam Gear

$

$

Currently unavailable

82

MTD 182667

Cam Follower

$

$

Currently unavailable

83

MTD 181013

Cam Bracket

$

$

Currently unavailable

84

MTD 181012

Cam Bracket Screw

$

$

Currently unavailable

85

MTD 181040

Valves, Intake and Exhaust

$

$

Currently unavailable

86

MTD 182374

Cylinder Gasket

$

$

Currently unavailable

87

MTD 181018

Oil Pan Gasket

$

$

Currently unavailable

88

MTD 182377

Oil Pan

Note: (includes 86 & 88)

$

$

Currently unavailable

89

MTD 181020

Oil Pan Screw

$

$

Currently unavailable

90

MTD 182378

Dipstick Assembly

Note: (includes 90)

$

$

Currently unavailable

91

MTD 182290

O-Ring

$

$

Currently unavailable

92

MTD 181009

Connecting Rod

$

$

Currently unavailable

93

MTD 181008

Wrist Pin Button

$

$

Currently unavailable

94

MTD 182381

Piston

$

$

Currently unavailable

95

MTD 181006

Wrist Pin

$

$

Currently unavailable

96

MTD 181005

Piston Ring Set

$

$

Currently unavailable

MTD 180852

Spark Plug

Note: not shown

$

$

Currently unavailable

MTD 182744

Short Block Assembly

Note: (includes 5-19, 74-95); not shown

$

$

Currently unavailable

MTD 182745

Cylinder Assembly

Note: (includes 11-13, 16, 18 & 85); not shown

$

$

Currently unavailable

MTD 180142

Starter Pawl Repair Kit

Note: not shown

$

$

Currently unavailable

MTD 182670

Carburetor Repair Kit

Note: not shown

$

$

Currently unavailable
