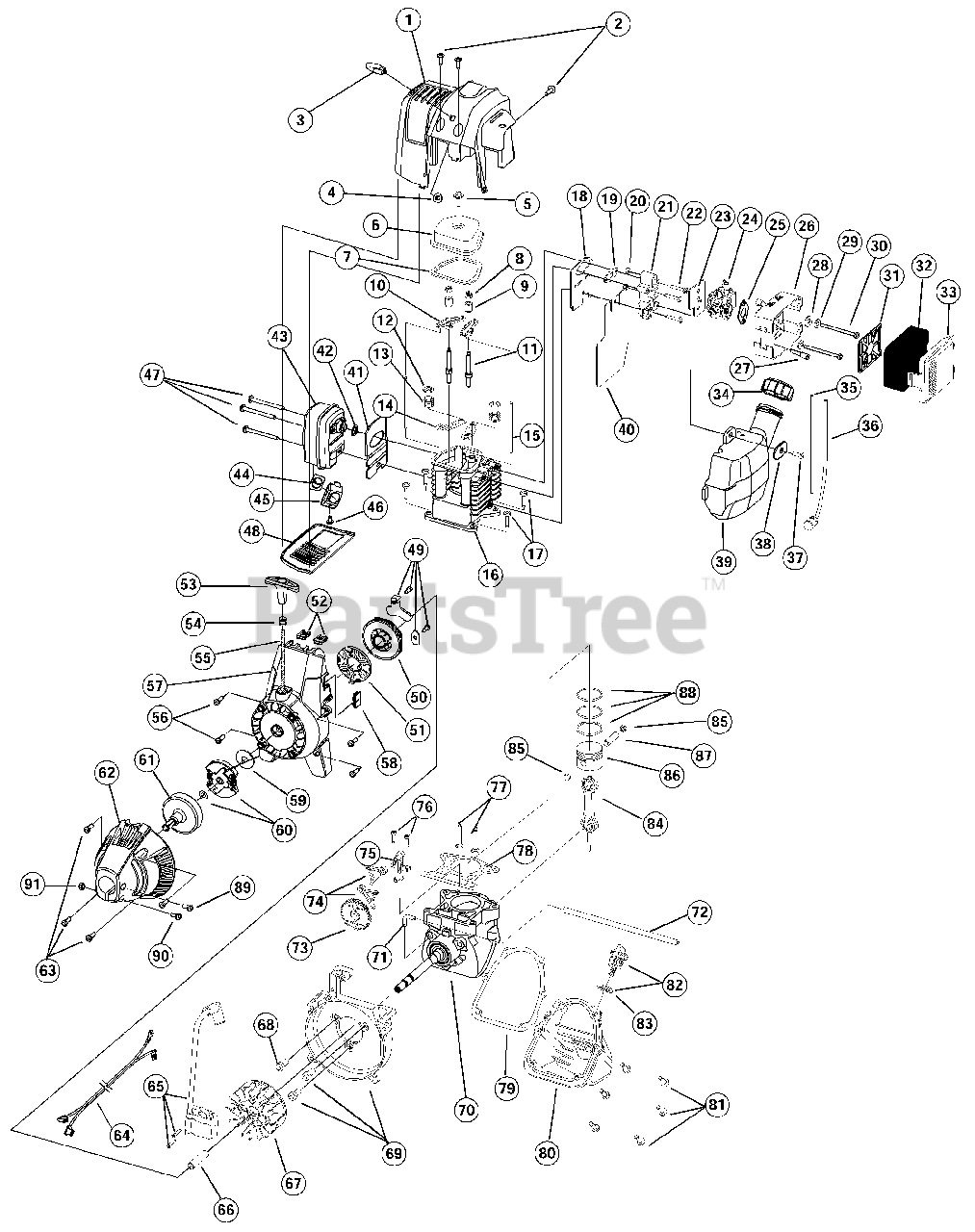

510r (21AK510G034) - Ryobi Tiller Engine Parts Parts Diagram

Tiller

Engine Parts Parts Diagram

  • Title

1

MTD 791-182650

Engine Cover

$

$

Not available

2

MTD 791-182339

Engine Cover Screws
(Superseded to 753-04994)

$6.99

$

In Stock, only 1 left!

0

3

MTD 791-182651

Starter Rope Eyelet

$

$

Not available

4

MTD 791-182652

Eyelet Nut

$

$

Not available

5

MTD 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

6

MTD 791-182098

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

7

MTD 791-182099

Valve Cover Gasket

$9.99

$

Usually ships in 3-6 days

0

8

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

9

MTD 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

10

MTD 791-182100

Rocker Arm

$

$

Not available

11

MTD 791-182341

Rocker Arm Stud

$

$

Not available

12

MTD 791-182103

Valve Spring Retainer

$

$

Not available

13

MTD 791-181038

Valve Spring

$

$

Not available

14

MTD 791-182102

Push Rod Guide

$

$

Not available

15

MTD 791-181033

Push Rod

$

$

Not available

16

MTD 791-182745

Cylinder Assembly
(Superseded to 753-04816)

Note: (includes 11-14)

$

$

Not available

17

MTD 791-182344

Cylinder Screw
(Superseded to 791-181003)

$

$

Not available

18

MTD 792-182345

Intake Baffle

$

$

Currently unavailable

19

MTD 791-182749

Carburetor Mount Gasket

$9.49

$

In Stock, only 1 left!

0

20

MTD 791-181034

Nut
(Superseded to 9072)

$

$

Not available

21

MTD 753-04029

Carburetor Mount

Note: (includes 20)

$

$

Not available

22

MTD 791-182348

Carburetor Mount Screw

$

$

Not available

23

MTD 791-182732

Carburetor Gasket

$

$

Not available

24

MTD 791-182654

Carburetor with Primer

$93.99

$

In Stock, only 1 left!

0

25

MTD 753-04030

Air Filter Gasket

$10.99

$

In Stock, Qty 5

0

26

MTD 791-182655

Air Filter Cover Assembly

Note: (includes 27, 28, 31-33)

$

$

Not available

27

MTD 791-182097

Breather Tube Assembly

$10.99

$

In Stock, only 1 left!

0

28

MTD 791-182656

Grommet Washer

$

$

Not available

29

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

30

MTD 753-04031

Air Filter Mounting Screw
(Superseded to 792-9973)

$

$

Not available

31

MTD 791-182657

Air Filter Plate

$

$

Not available

32

MTD 791-182658

Air Filter

$10.99

$

In Stock, only 1 left!

0

33

MTD 791-182659

Air Filter Cover

$15.99

$

Usually ships in 3-6 days

0

34

MTD 791-182271

Fuel Cap

$21.99

$

Usually ships in 3-6 days

0

35

MTD 791-182352

Fuel Return Line

$7.99

$

In Stock, Qty 20+

0

36

MTD 791-182353

Fuel Pick-Up Line with Filter

$10.99

$

In Stock, Qty 10

0

37

MTD 791-181080

Screw

$6.49

$

Usually ships in 3-6 days

0

38

MTD 791-182354

Washer

$

$

Not available

39

MTD 791-182660

Fuel Tank Assembly

Note: (includes 34-36)

$

$

Not available

40

MTD 791-182356

Fuel Tank Shield

$

$

Not available

41

MTD 791-182358

Muffler Baffle

$

$

Not available

42

MTD 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.99

$

Usually ships in 3-6 days

0

43

MTD 791-181047

Muffler

Note: (includes 42, 44-46)

$

$

Not available

44

MTD 791-180890

Spark Arrestor Screen

$

$

Not available

45

MTD 791-181045

Screen Cover

$

$

Not available

46

MTD 791-181046

Screw

$

$

Not available

47

MTD 791-182361

Muffler Mounting Screw

$

$

Not available

48

MTD 791-182362

Muffler Cover

$

$

Not available

49

MTD 791-182363

Pulley Retainer Assembly

$

$

Not available

50

MTD 791-182748

Recoil Pulley

$

$

Currently unavailable

51

MTD 753-1236

Recoil Spring

$

$

Not available

52

MTD 791-182366

Nut Clip

$5.99

$

In Stock, only 1 left!

0

53

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

54

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

55

MTD 791-182661

Rope

$

$

Not available

56

MTD 791-181020

Starter Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

57

MTD 791-182662

Starter Housing Assembly
(Superseded to 791-182367)

Note: (includes 49-56)

$

$

Not available

58

MTD 791-182537

Wire Grommet

$7.99

$

In Stock, only 1 left!

0

59

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

60

MTD 753-1238

Clutch with Washer

$45.99

$

In Stock, Qty 13

0

61

MTD 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

62

MTD 791-182664

Clutch Cover

$

$

Not available

63

MTD 791-181345

Clutch Cover Screw

$4.49

$

In Stock, only 4 left!

0

64

MTD 791-182665

Lead Wire
(Superseded to 9681)

$7.49

$

Usually ships in 3-6 days

0

65

MTD 753-04040

Ignition Module with Screws

$102.99

$

Usually ships in 3-6 days

0

66

MTD 791-181065

Spacer

$

$

Not available

67

MTD 791-182736

Flywheel
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

68

MTD 791-181861

Screw

$4.49

$

Usually ships in 3-6 days

0

69

MTD 791-182743

Shroud Assembly with Screws

Note: (includes 68)

$

$

Not available

70

MTD 791-182376

Crankcase Assembly

Note: (includes 71 & 72)

$

$

Not available

71

MTD 791-182375

90° Elbow

$

$

Not available

72

MTD 791-182379

Breather Hose

$4.99

$

In Stock, only 1 left!

0

73

MTD 791-181015

Cam Gear

$

$

Not available

74

MTD 753-1242

Cam Follower

$

$

Not available

75

MTD 791-181013

Cam Bracket

$

$

Not available

76

MTD 791-181012

Cam Bracket Screw

$

$

Not available

77

MTD 791-181040

Valves, Intake and Exhaust

$

$

Not available

78

MTD 791-182374

Cylinder Gasket

$

$

Not available

79

MTD 791-181018

Oil Pan Gasket

$

$

Not available

80

MTD 791-182377

Oil Pan

Note: (includes 79 & 81)

$

$

Not available

81

MTD 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

82

MTD 791-182378

Dipstick Assembly

Note: (includes 83)

$10.99

$

Usually ships in 3-6 days

0

83

MTD 791-182290

O-Ring

$4.99

$

In Stock, Qty 11

0

84

MTD 791-181009

Connecting Rod

$

$

Not available

85

MTD 791-181008

Wrist Pin Button

$9.99

$

Usually ships in 3-6 days

0

86

MTD 753-1243

Piston
(Superseded to 753-04878)

$

$

Not available

87

MTD 791-181006

Wrist Pin

$5.99

$

In Stock, only 1 left!

0

88

MTD 791-181005

Piston Ring Set
(Superseded to 753-04801)

$

$

Not available

89

MTD 791-145569

Anit-Rotation Screw

$9.99

$

In Stock, Qty 7

0

90

MTD 753-1240

Screw

$

$

Not available

91

MTD 753-1241

Nut

$

$

Not available

MTD 791-180852

Spark Plug
(Superseded to 794-00082)

Note: Part not shown

$7.49

$

In Stock, only 4 left!

0

MTD 753-04087

Short Block Assembly

Note: (includes 5-17, 70-88); Part not shown

$

$

Not available

MTD 791-180142

Starter Pawl Repair Kit
(Superseded to 753-05240)

Note: Part not shown

$76.99

$

In Stock, only 2 left!

0

MTD 753-04014

Carburetor Repair Kit

Note: Part not shown

$38.99

$

In Stock, Qty 5

0

MTD 753-1248

Gasket/Diaphragm Repair Kit

Note: Part not shown

$45.99

$

Usually ships in 3-6 days

0
