51070 - Toro 34" Big Red Lawn Tractor (SN: 100001 - 199999) (1971) STARTER NO. 590420 (ELECTRIC START MODEL) Parts Diagram

34" Big Red Lawn Tractor

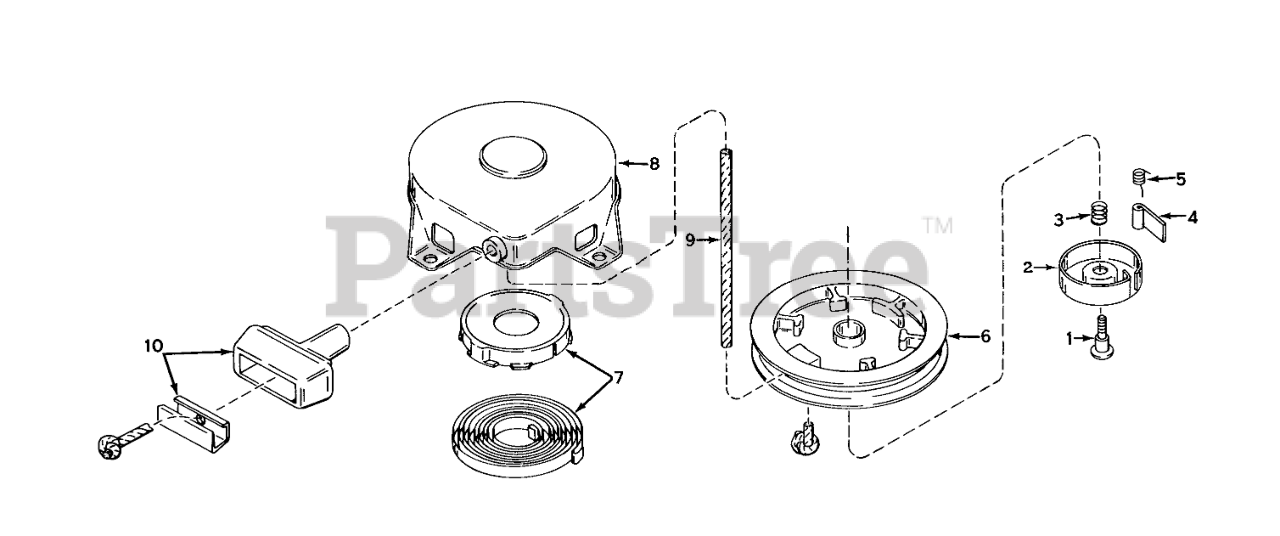

STARTER NO. 590420 (ELECTRIC START MODEL) Parts Diagram

  • Title
1

Tecumseh 590409

Screw
(Superseded to 590409A)

$3.99

$

In Stock, only 1 left!

0

2

Tecumseh 590410

Retainer

$7.99

$

In Stock, only 2 left!

0

3

Tecumseh 590411

Spring-Brake

$3.49

$

In Stock, only 3 left!

0

4

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 7

0

5

Tecumseh 590412

Spring-Dog

$8.49

$

In Stock, only 2 left!

0

6

Tecumseh 590413

Pulley
(Superseded to 590413A)

$29.99

$

In Stock, only 2 left!

0

7

Tecumseh 590414

Spring & Keeper Assy

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590415

STARTER HOUSING ASSY
(Superseded to 590536)

$

$

Not available

9

Tecumseh 590386

Rope Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 12

0

10

Tecumseh 590387

Assy., Starter

$3.99

$

In Stock, only 1 left!

0
