51070 - Toro 34" Big Red Lawn Tractor (SN: 100001 - 199999) (1971) IMPULSE STARTER NO. 30051 Parts Diagram

34" Big Red Lawn Tractor

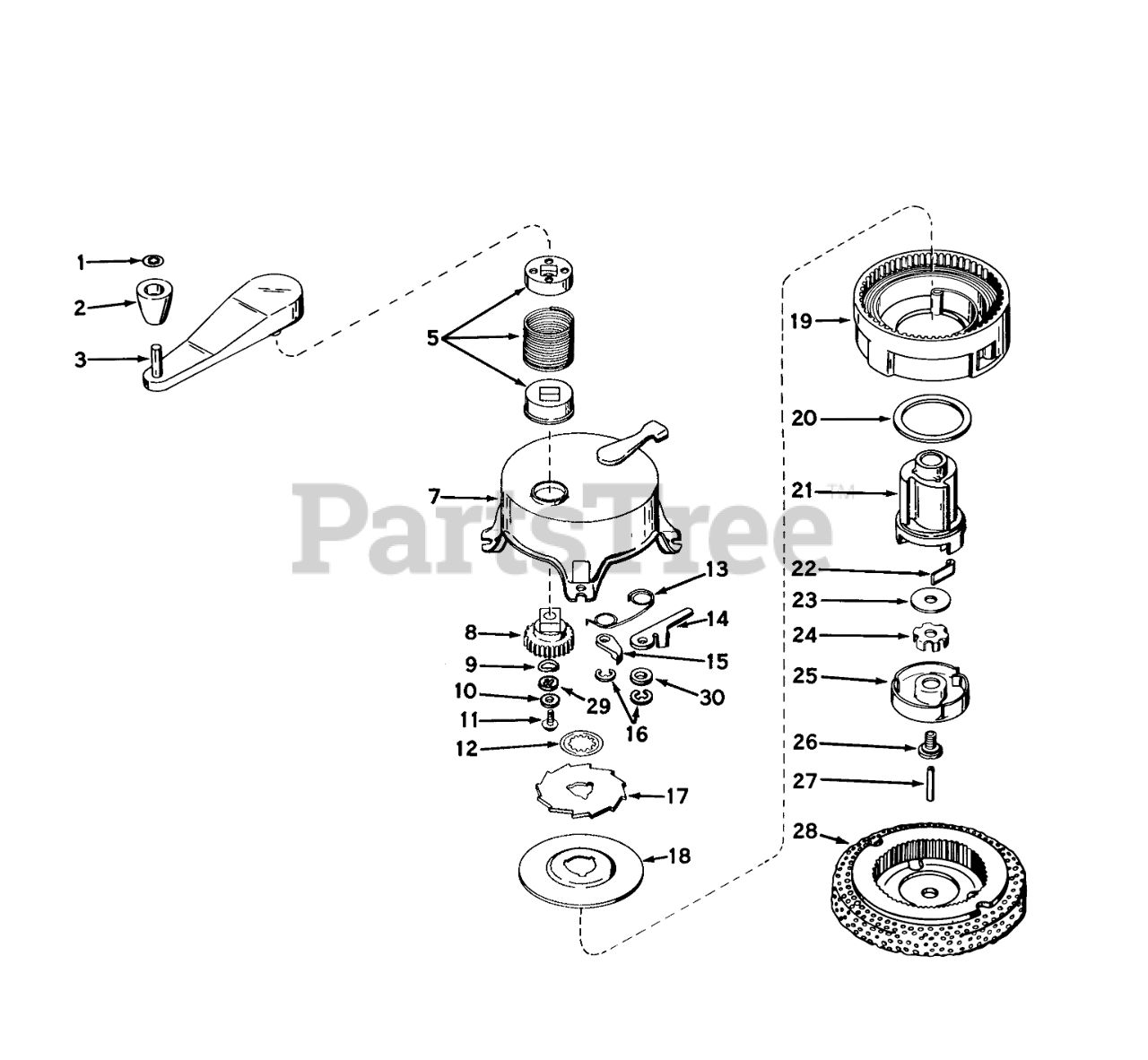

IMPULSE STARTER NO. 30051 Parts Diagram

  • Title

1

Tecumseh 29227

Fastener, Handle

$

$

Currently unavailable

2

Tecumseh 29228

Knob, Starter handle

$

$

Currently unavailable

3

Tecumseh 29738

Handle Assy.

$

$

Currently unavailable

5

Tecumseh 30525

Clutch Assy.

$

$

Currently unavailable

7

Tecumseh 29737

Housing Assy.

$

$

Currently unavailable

8

Tecumseh 29724

Gear, Wind

$

$

Currently unavailable

9

Tecumseh 29727

Washer, Wave

$

$

Currently unavailable

10

Tecumseh 28780

Washer, Brake

$

$

Currently unavailable

11

Tecumseh 29728

Screw

$0.99

$

Usually ships in 3-12 days

0

12

Tecumseh 29723

Ring, Retaining

$

$

Currently unavailable

13

Tecumseh 29731

Spring, Release dog

$

$

Currently unavailable

14

Tecumseh 29732

Dog, Release

$

$

Currently unavailable

15

Tecumseh 29729

Dog, Lock

$

$

Currently unavailable

16

Tecumseh 28776

Retainer, Dog pivot

$

$

Currently unavailable

17

Tecumseh 29722

Gear Release

$

$

Currently unavailable

18

Tecumseh 29721

Cover, Spring

$

$

Currently unavailable

19

Tecumseh 29754

Spring and Keeper Assy.

$

$

Currently unavailable

20

Tecumseh 29720

Washer, Hub

$

$

Currently unavailable

21

Tecumseh 29719

Hub, Starter

$

$

Currently unavailable

22

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 7

0

23

Tecumseh 29734

Washer, Brake

$

$

Currently unavailable

24

Tecumseh 29717

Brake

$

$

Currently unavailable

25

Tecumseh 29735

Retainer
(Superseded to 29942)

$

$

Currently unavailable

26

Tecumseh 29733

Screw, Brake (Left Hand Thread)

$

$

Currently unavailable

27

Tecumseh 29755

Pin, Centering

$

$

Currently unavailable

28

Tecumseh 29709

Hub & Screen

$

$

Not available

29

Tecumseh 29803

Washer

$

$

Currently unavailable

30

Tecumseh 29804

Ballast Box w/Brackets & Braces

$

$

Currently unavailable
