51070 - Toro 34" Big Red Lawn Tractor (SN: 100001 - 199999) (1971) ENGAGING ASSEMBLY Parts Diagram

34" Big Red Lawn Tractor

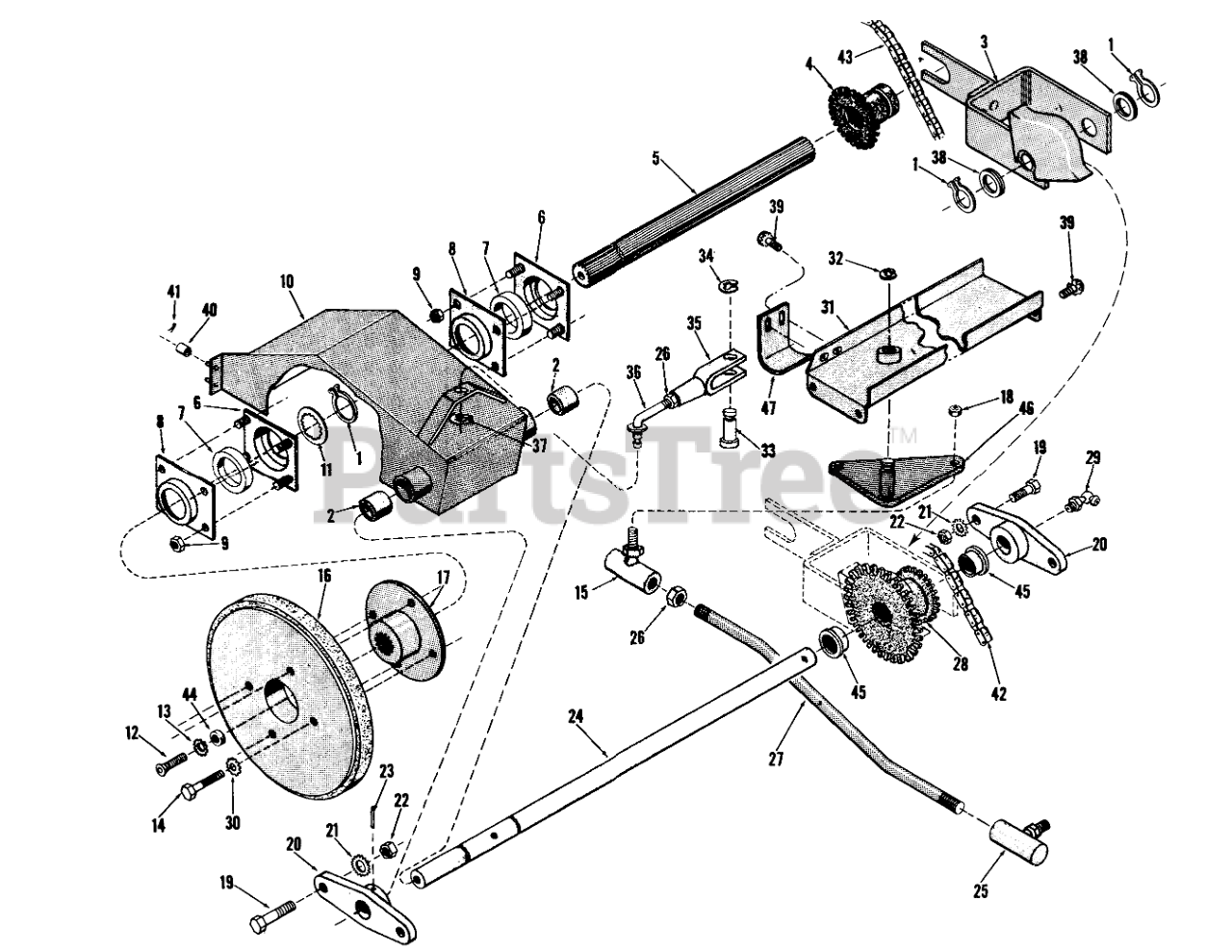

ENGAGING ASSEMBLY Parts Diagram

  • Title

1

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

2

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

3

Toro 3-7980

Bracket

$

$

Currently unavailable

4

Toro 3-5398

Sprocket

$

$

Currently unavailable

5

Toro 3-7777

Drive Shaft

$

$

Currently unavailable

6

Toro 3-7890

Bearing Retainer

$

$

Currently unavailable

7

Toro 251-172

Bearing

$

$

Not available

8

Toro 3-5403

Bearing Retainer

$

$

Not available

9

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

10

Toro 5-0090

Engaging Bracket

$

$

Currently unavailable

11

Toro 3-5467

Washer

$

$

Currently unavailable

12

Toro 3290-140

Screw

$

$

Currently unavailable

13

Toro 3255-12

Lockwasher

$

$

Not available

14

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

15

Toro 2411-11

Ball Socket

$

$

Not available

16

Toro 3-5461

Disc
(Superseded to 40-8170)

$85.99

$

In Stock, only 4 left!

0

17

Toro 3-7784

Hub Assy.

$

$

Currently unavailable

18

Toro 32146-4

NUT-LOCK NI

$

$

Not available

19

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

20

Toro 3-5458

Shaft Retainer

$

$

Currently unavailable

21

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

23

Toro 32121-12

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3-5462

Dead Shalt

$

$

Currently unavailable

25

Toro 2411-10

Ball Socket

$

$

Currently unavailable

26

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

27

Toro 3-5444

Connecting Rod

$

$

Currently unavailable

28

Toro 3-7880

Sprocket Assy. with Bushings

$

$

Not available

29

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

30

Toro 3290-244

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3-8850

Support

$

$

Currently unavailable

32

Toro 32151-5

Snap Ring

$

$

Not available

33

Toro 3-5772

Yoke Pin

$

$

Currently unavailable

34

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

35

Toro 282-2

YOKE

$31.99

$

Usually ships in 3-6 days

0

36

Toro 3-5433

Rod

$

$

Currently unavailable

37

Toro 32151-4

Nut-Lok

$

$

Currently unavailable

38

Toro 256-137

Nyliner

$

$

Currently unavailable

39

Toro 32140-42

1/4-20X1/2 THDG SEMS

$

$

Not available

40

Toro 3-5402

Roller Pivot

$

$

Currently unavailable

41

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

42

Toro 3-5514

Chain

$

$

Currently unavailable

43

Toro 3-5512

Chain

$

$

Not available

44

Toro 3-5578

Washer

$

$

Currently unavailable

45

Toro 256-136

3/4IDX1LG FLANGE BSHG

$

$

Not available

46

Toro 3-7781

Bell Crank Shift

$

$

Currently unavailable

47

Toro 3-5815

Chain Guard

$

$

Currently unavailable
