51070 - Toro 34" Big Red Lawn Tractor (SN: 100001 - 199999) (1971) 34" CUTTING UNIT PARTS LIST Parts Diagram

34" Big Red Lawn Tractor

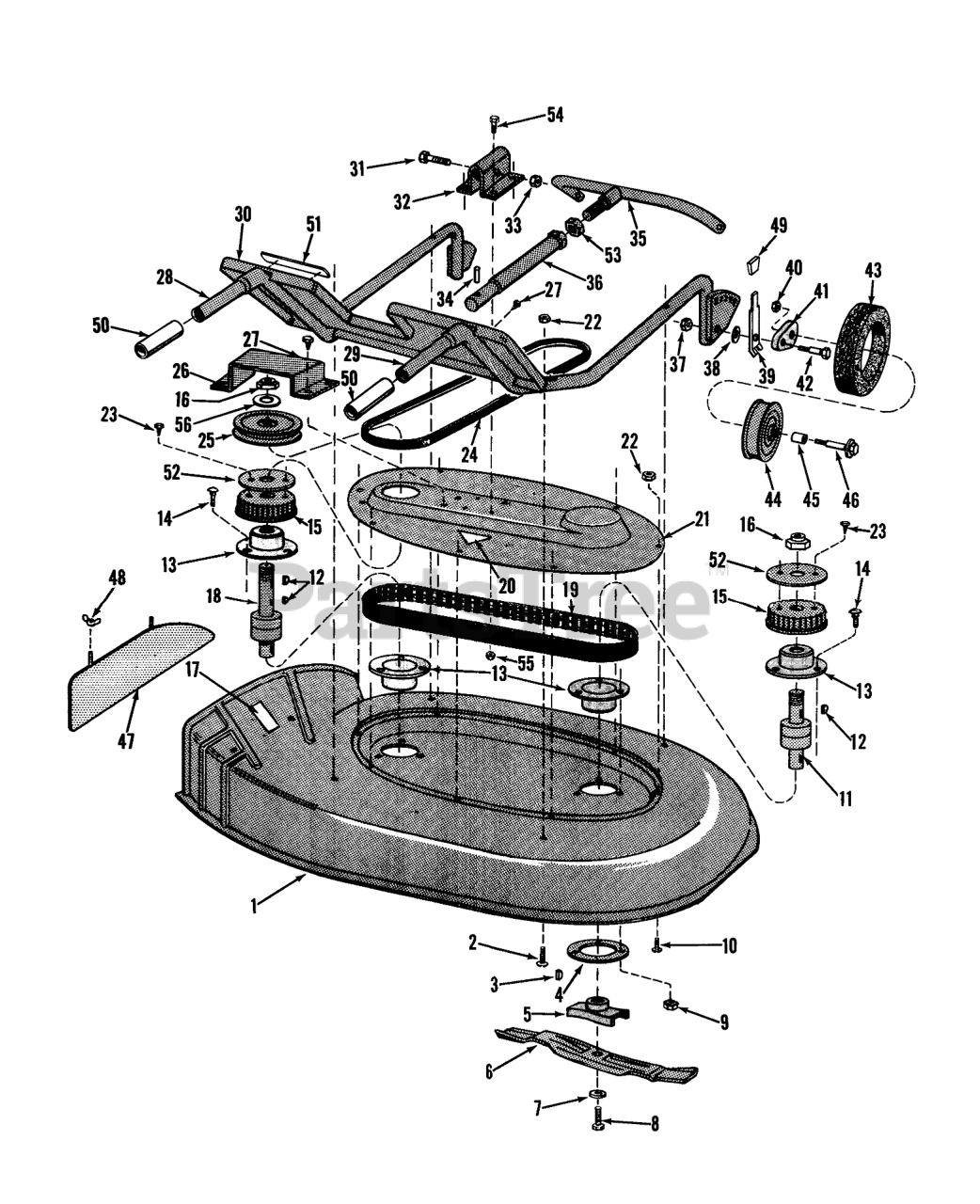

34" CUTTING UNIT PARTS LIST Parts Diagram

  • Title

1

Toro 3-7627

Housing

$

$

Currently unavailable

2

Toro 32122-35

SCREW

$

$

Currently unavailable

3

Toro 3-7681

Key

$

$

Currently unavailable

4

Toro 3-7692

Washer, Spindle

$

$

Currently unavailable

5

Toro 3-7682

Retainer, Blade W.A.

$

$

Not available

6

Toro 5-3526

Blade, 18"

$

$

Not available

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

8

Toro 3-7695

Bolt. Place

$

$

Currently unavailable

9

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

10

Toro 32122-33

5/16-18X5/8 TRS HD MS

$

$

Not available

11

Toro 3-7674

Bearing, Spindle

$

$

Not available

12

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

13

Toro 3-7693

Housing, Bearing

$

$

Currently unavailable

14

Toro 3-5861

Bolt
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

15

Toro 3-5877

Pulley, P.D.

$

$

Currently unavailable

16

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

17

Toro 3-5888

Decal

$

$

Currently unavailable

18

Toro 3-7694

Bearing, Spindle

$

$

Currently unavailable

19

Toro 3-7677

Belt

$

$

Not available

20

Toro 5-5510

Decal

$

$

Currently unavailable

21

Toro 3-7675

Shroud, Housing

$

$

Currently unavailable

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 3-4577

V-Belt

$

$

Not available

25

Toro 3-7686

Pulley

$

$

Not available

26

Toro 3-7685

Guard, Belt

$

$

Currently unavailable

27

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

28

Toro 3-7687

Tube, Support W.A.

$

$

Not available

29

Toro 3-7672

Tube, Support W.A.

$

$

Currently unavailable

30

Toro 3-7684

Foot Rest

$

$

Currently unavailable

31

Toro 329-7

SCREW-HH

$

$

Not available

32

Toro 3-7676

Bracket

$

$

Currently unavailable

33

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

34

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

35

Toro 3-7701

Tube, Push W.A.

$

$

Not available

36

Toro 3-7696

Tube, Tension W.A.

$

$

Currently unavailable

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 3-5956

Washer
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

39

Toro 3-2637

Spring Arm

$

$

Currently unavailable

40

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

41

Toro 5-0250

Pivot Arm Assembly "A"

$

$

Currently unavailable

Toro 5-0260

Pivot Arm Assembly "B"

Note: Not illustrated

$

$

Currently unavailable

42

Toro 3-5873

Pivot Screw

$

$

Currently unavailable

43

Toro 4-2610

Tires, 6"

$

$

Currently unavailable

44

Toro 3-2564

6" Wheel & Bushing Assy.

$

$

Currently unavailable

45

Toro 3-2664

Bushing

$

$

Not available

46

Toro 3-2652

Bolt

$

$

Not available

47

Toro 3-7704

Leaf Mulcher

$

$

Currently unavailable

48

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

49

Toro 5-0656

Knob

$

$

Not available

Toro 5-0657

ARM KNOB

Note: Not illustrated

$

$

Not available

50

Toro 3-6743

Sleeve

$

$

Currently unavailable

51

Toro 3-5961

Tread Pad

$

$

Currently unavailable

52

Toro 3-7647

Belt Guide

$

$

Currently unavailable

53

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

54

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

55

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

56

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

Toro 3-1779

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable
