51070 - Toro 34" Big Red Lawn Tractor (SN: 000001 - 099999) (1970) ELECTRIC STARTER Parts Diagram

34" Big Red Lawn Tractor

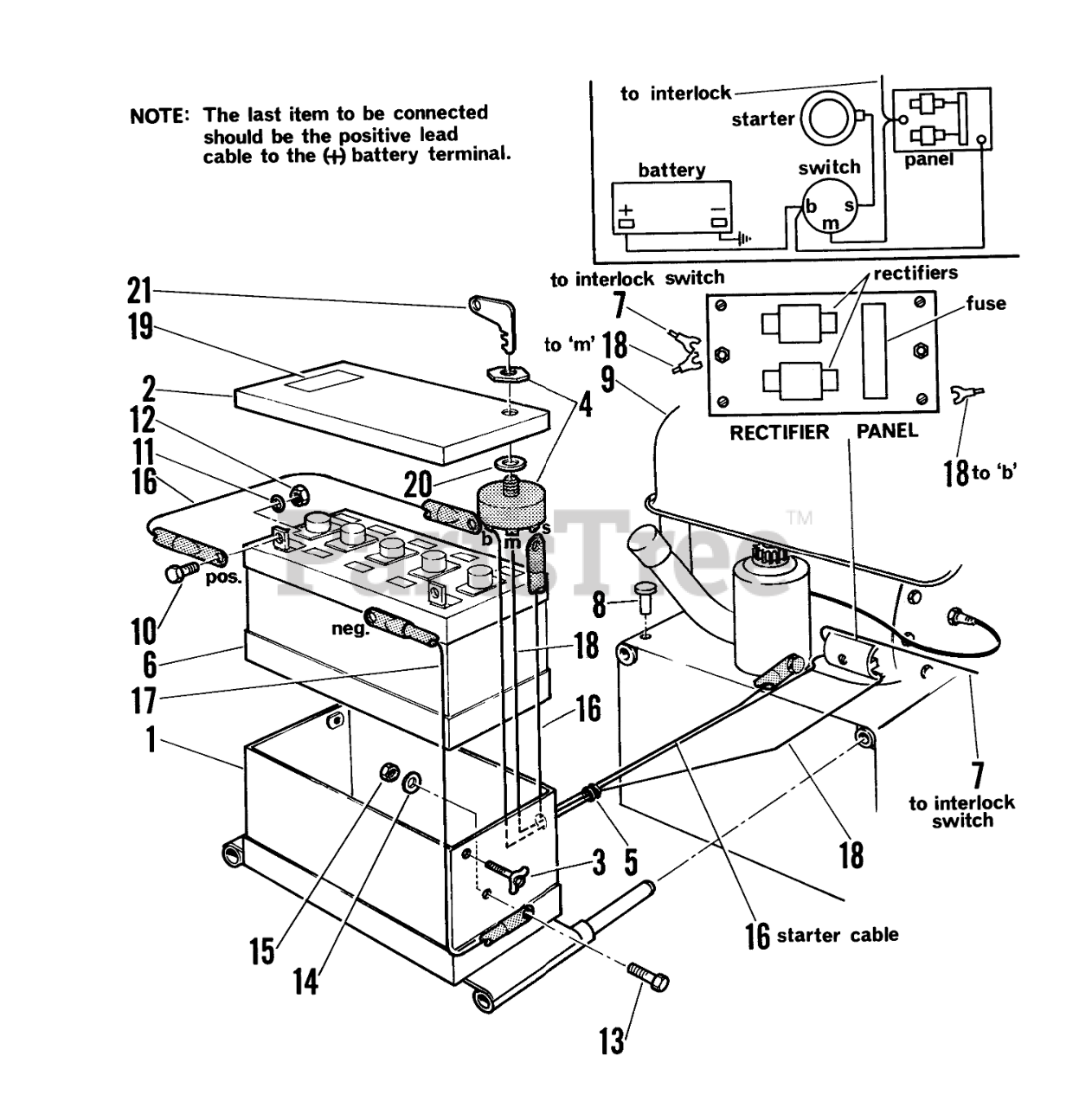

ELECTRIC STARTER Parts Diagram

  • Title

1

Toro 5-0270

Battery Box

$

$

Currently unavailable

2

Toro 3-6406

Cover-Batt. Box

$

$

Currently unavailable

3

Toro 3288-7

Thumb Screw

$

$

Currently unavailable

4

Toro 218-251

Switch

$

$

Currently unavailable

5

Toro 3-5975

Grommet

$

$

Currently unavailable

6

Battery-12 Volt

Note: Wico Num SP-12-50 or Equivalent

$

$

Not available

7

Toro 3-6416

Wire (To interlock switch)

$

$

Currently unavailable

8

Toro 3-2440

Pin

$

$

Not available

9

Toro 221-241

Engine 6 H.P. Elec. Start

$

$

Currently unavailable

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

13

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

14

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

16

Toro 3-6414

Wire

$

$

Currently unavailable

17

Toro 3-6417

Wire

$

$

Currently unavailable

18

Toro 3-6415

Wire

$

$

Currently unavailable

Toro 3-1058

Decal

Note: Not illustrated

$

$

Not available

19

Toro 3-7644

Decal

$

$

Not available

20

Toro 2-1640

Washer

$

$

Currently unavailable

21

Toro 7-1394

Key

$

$

Currently unavailable
