51060SR - Troy-Bilt 60" Side-Discharge Mower Deck (SN: 0100101 - 0199999) 60" S.D. MOWER ATTACHMENT Parts Diagram

60" Side-Discharge Mower Deck

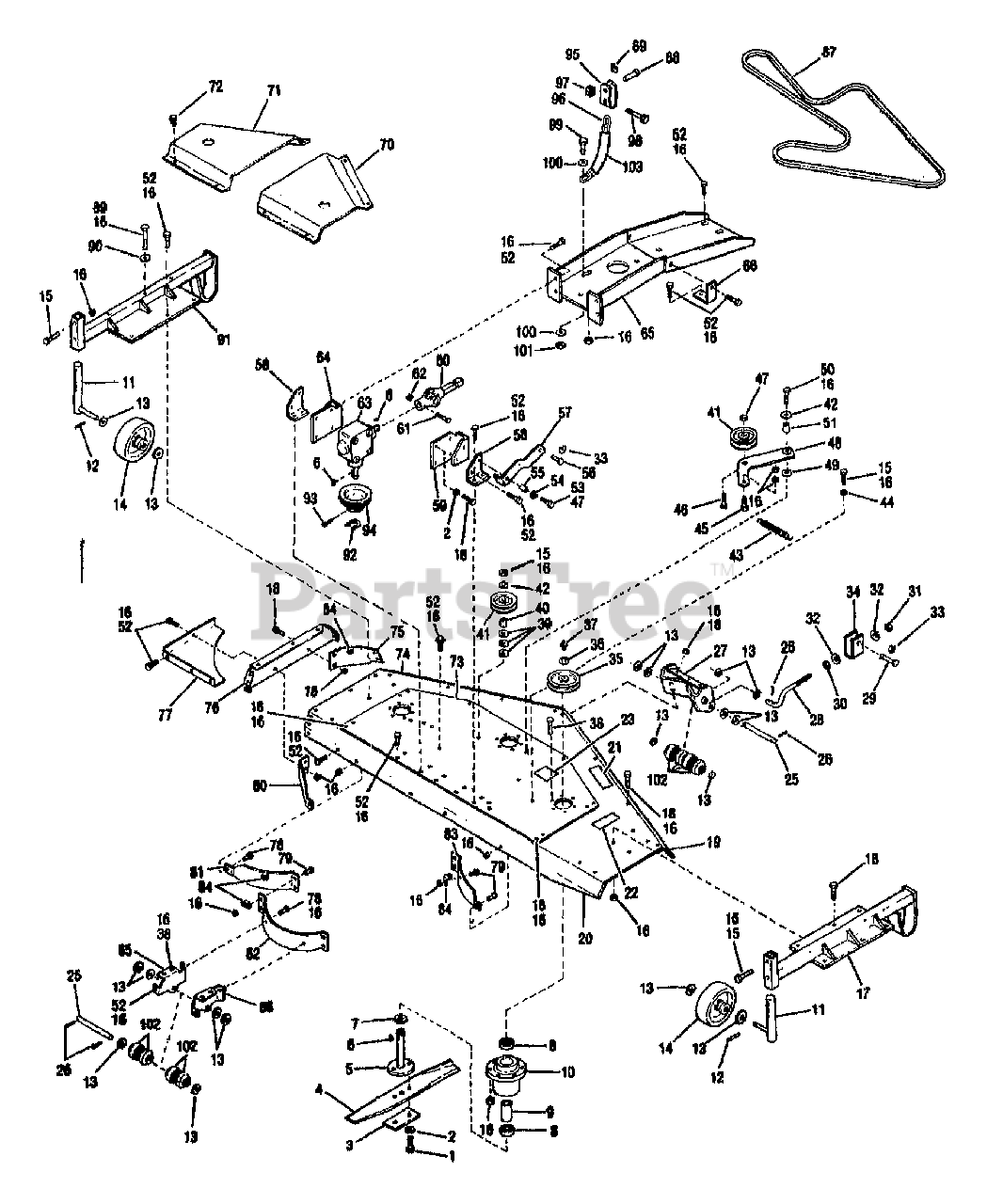

60" S.D. MOWER ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1100009

SCR-HH 3/8-24X1.0 G5 ZP
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

MTD 1738847

PLATE-BLADE

$

$

Not available

4

Troy-Bilt 1738742

BLADE

$

$

Not available

5

Troy-Bilt 1738806

ASSM-BLADE SHAFT

$

$

Currently unavailable

6

MTD 1186034

KEY-WOODRUFF .25X.875

$

$

Not available

7

Troy-Bilt 1701449

SHIM-1.25X1.01X.06

$

$

Currently unavailable

8

MTD 1185100

BEARING-BALL

$

$

Not available

9

MTD 1739484

SLEEVE

$

$

Not available

10

Troy-Bilt 1733686

HOUSING-SPINDLE

$

$

Currently unavailable

11

Troy-Bilt 1747783GAR

ASSM-REAR AXLE

$

$

Currently unavailable

12

Troy-Bilt 1185597

PIN-DRIVE
(Superseded to 715-0150)

$4.49

$

In Stock, Qty 15

0

13

MTD 1107387

WASHER-1.5X.812X.134 ZP

$

$

Not available

14

MTD 1747799

GAUGE-WHEEL

$

$

Not available

15

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

17

Troy-Bilt 1747777GAR

SUPT-GAGE WHEEL RH

$

$

Currently unavailable

18

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

19

Troy-Bilt 1747762GAR

BASE-FRONT RH

$

$

Currently unavailable

20

Troy-Bilt 1750198GAR

ASSM-BASE W/DECAL

$

$

Currently unavailable

21

Troy-Bilt 1750712

DECAL-OPEI CAUTION
(Superseded to 1739687)

$7.49

$

Usually ships in 3-6 days

0

22

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

23

MTD 1757419

DECAL-BELT DRIVE

$

$

Not available

25

MTD 1747787

SHAFT-ROLLER

$

$

Not available

26

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

27

Troy-Bilt 1748277GAR

ASSM-BRKT FRONT DRAG

$

$

Currently unavailable

28

Troy-Bilt 1746170GAR

HITCH LINK

$

$

Currently unavailable

29

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 1186236

NUT
(Superseded to 712-0301)

$7.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 1110113

NUT .750-10
(Superseded to 712-3107)

$11.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 1103977

WASHER-LK 1.264X.76X.188

$

$

Currently unavailable

33

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 1749640GAR

ASSM-HITCH BRKT

$

$

Currently unavailable

35

MTD 1748284

SHEAVE-BLADE

$

$

Not available

36

Troy-Bilt 1739384

NUT-SELF LOCK

$

$

Currently unavailable

37

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

38

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 1891733

WASHER-1.12X.378X.125
(Superseded to 936-0206)

$4.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 1740203

SPACER-.5X.385X.437

$

$

Currently unavailable

41

Troy-Bilt 1752354

PULLEY-IDLER

$84.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

43

MTD 1725367

SPRING-EXTENSION

$

$

Not available

44

MTD 1186259

NUT-HEX/JAM 3/8-16

$

$

Not available

45

MTD 1748374

SCR

$

$

Not available

46

Troy-Bilt 1748373

SCR

$

$

Currently unavailable

47

MTD 1734515

BRACKET-ACTUATOR

$

$

Not available

48

Troy-Bilt 1749769GAR

ASSM-IDLER ARM

$

$

Currently unavailable

49

MTD 1724929

WASHER

$

$

Not available

50

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

51

MTD 1185395

BRG

$

$

Not available

52

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

53

MTD 1100065

SCR-HH 1/2-13X1.75 G5 ZP

$

$

Not available

54

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

55

MTD 1746172

SPACER-TUBULAR

$

$

Not available

56

Troy-Bilt 1752309

PIN-CLEVIS .625X1.44
(Superseded to 711-0654)

$16.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 1755730GAR

LINK-DRAG

$

$

Currently unavailable

58

Troy-Bilt 1748273GAR

BRKT-MOUNTING

$

$

Currently unavailable

59

Troy-Bilt 1748271GAR

BRKT-GEAR BOX RH

$

$

Currently unavailable

60

Troy-Bilt 1756089GAR

ASSM-DRIVE

$

$

Currently unavailable

61

MTD 1100807

SCR-HH 1/4-20X2.0 G5 ZP

$

$

Not available

62

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

63

0

RIGHT ANGLE GEAR BOX ASSY

$

$

Not available

64

Troy-Bilt 1748272GAR

BRKT-GEAR BOX LH

$

$

Currently unavailable

65

Troy-Bilt 1753015GAR

ASSM-BASE BRIDGE

$

$

Currently unavailable

66

Troy-Bilt 1749044GAR

BRKT-SUPPORT

$

$

Currently unavailable

68

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 1748282GAR

COVER-BELT RH

$

$

Currently unavailable

71

Troy-Bilt 1747797GAR

COVER-BELT LH

$

$

Currently unavailable

72

Troy-Bilt 1723037

SCR
(Superseded to 710-0623)

$4.49

$

In Stock, Qty 20+

0

73

Troy-Bilt 1748280GAR

BASE-DOUBLE

$

$

Currently unavailable

74

Troy-Bilt 1747763GAR

BASE-FRONT LH

$

$

Currently unavailable

75

Troy-Bilt 1747775GAR

BAFFLE-FRONT CORNER

$

$

Currently unavailable

76

Troy-Bilt 1747764GAR

BASE-END

$

$

Currently unavailable

77

Troy-Bilt 1749634GAR

PLATE-BAFFLE

$

$

Currently unavailable

78

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

79

Troy-Bilt 1186126

BOLT-3/8-16 X 3/4
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

80

Troy-Bilt 1747774GAR

BAFFLE-REAR CORNER

$

$

Currently unavailable

81

Troy-Bilt 1747773GAR

BAFFLE-LH

$

$

Currently unavailable

82

Troy-Bilt 1747771GAR

BAFFLE-CENTER

$

$

Currently unavailable

83

Troy-Bilt 1747772GAR

BAFFLE-RH

$

$

Currently unavailable

84

MTD 1747770

BRKT-BAFFLE

$

$

Not available

?85

Troy-Bilt 1747768GAR

BRKT-ROLLER LH

$

$

Currently unavailable

?86

Troy-Bilt 1747767GAR

BRKT-ROLLER RH

$

$

Currently unavailable

87

MTD 1748274

BELT-V

$

$

Not available

89

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

90

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$6.49

$

Usually ships in 3-6 days

0

91

Troy-Bilt 1747778GAR

SUPT-GAGE WHEEL LH

$

$

Currently unavailable

92

Troy-Bilt 1118554

RING-RETAINING
(Superseded to 916-0102)

$5.49

$

In Stock, Qty 20+

0

93

MTD 1737419

SCR-SQ HD SET 5/16X3/4

$

$

Not available

94

Troy-Bilt 1748276

SHEAVE-DRIVE

$

$

Currently unavailable

95

Troy-Bilt 1752474

CLEVIS

$

$

Currently unavailable

96

Troy-Bilt 1752130

KIT-CHAIN

$

$

Currently unavailable

97

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

98

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

?99

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

100

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

101

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

102

Troy-Bilt 1754611

ROLLER
(Superseded to 1765851)

$22.99

$

Usually ships in 3-6 days

0

103

Troy-Bilt 1755800

SLEEVE-CHAIN

$

$

Not available
