51060S - Troy-Bilt 60" Side-Discharge Mower Deck Right Angle Gearbox Ass'y Parts Diagram

60" Side-Discharge Mower Deck

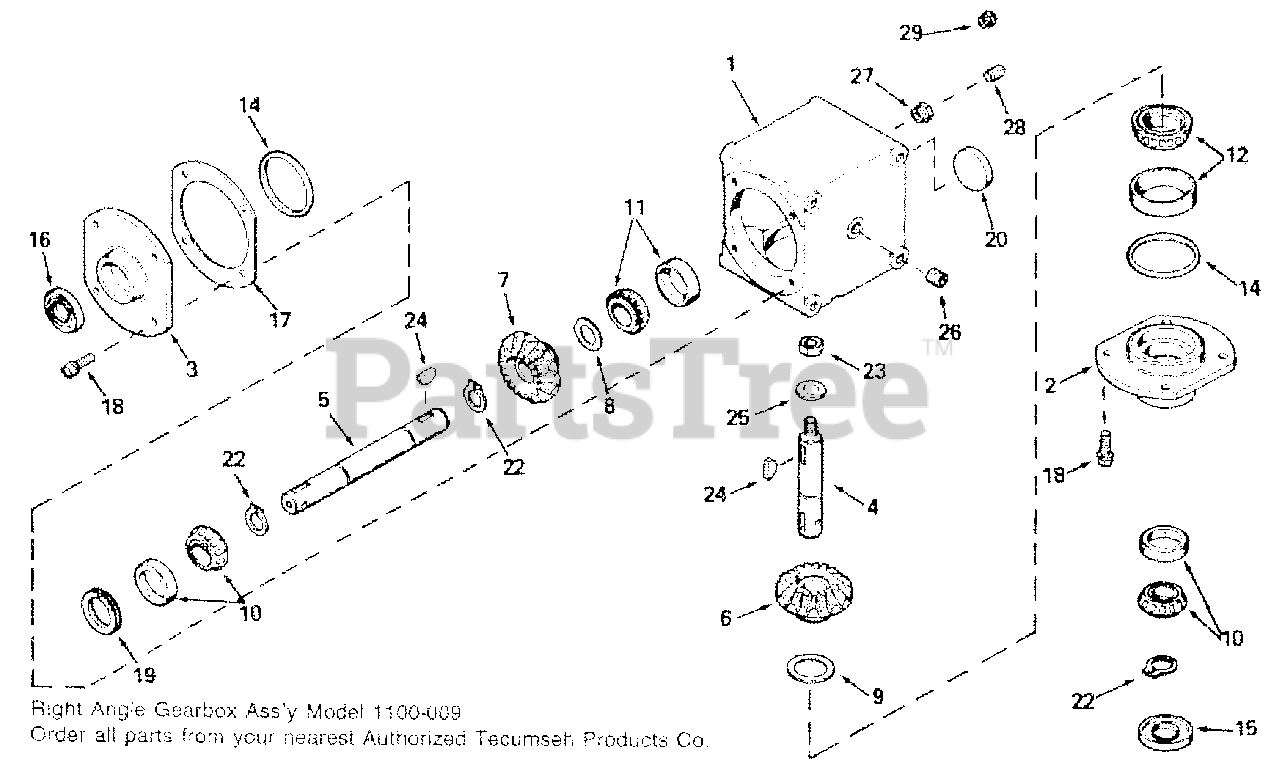

Right Angle Gearbox Ass'y Parts Diagram

  • Title
1

Troy-Bilt 770076

Housing, Right angle drive

$

$

Currently unavailable

2

Troy-Bilt 786104A

Cap, Retainer

$

$

Currently unavailable

3

Troy-Bilt 786105

Cap, Retainer

$

$

Currently unavailable

4

Troy-Bilt 776239

Shaft, Output

$

$

Currently unavailable

5

Troy-Bilt 776222

Shaft, Input

$

$

Currently unavailable

6

Troy-Bilt 778180

Gear, Bevel (20 teeth)

$

$

Currently unavailable

7

Troy-Bilt 778181

Gear, Bevel (27 teeth)

$

$

Currently unavailable

8

Troy-Bilt 780131

Shim (1-1/2" O.D. x 1-1/64" I.D. x .002 thick)

Note: (use as required)

$

$

Currently unavailable

9

Troy-Bilt 780138

Shim (2.000" O.D. x 1.531" I.D. x .002 thick)

Note: (use as required)

$

$

Currently unavailable

10

Troy-Bilt 780132

Bearing & Cup Ass'y.

Note: (This assembly may have a shim washer included. The shim washer is not required at this location.)

$

$

Currently unavailable

11

Troy-Bilt 780132

Bearing & Cup Ass'y.

Note: (This is a factory sized assembly and may or may not include Ref. No. 8 shim washer. If Ref. No. 8 shim washer is supplied, it must be used in this location. All old shim washers must be discarded.)

$

$

Currently unavailable

12

Troy-Bilt 780134

Bearing & Cup Ass'y

Note: (This is a factory sized assembly and may or may not include Ref. No. 9 shim washer. If Ref. No. 9 shim washer is included, it must be used in this location. All old shim washers must be discarded.)

$

$

Currently unavailable

14

Troy-Bilt 788063

"O" Ring

$

$

Currently unavailable

15

Troy-Bilt 788064

Seat, Oil

$

$

Currently unavailable

16

Troy-Bilt 788065

Seal, tail

$

$

Currently unavailable

17

Troy-Bilt 780136

Shim, Cap retainer

$

$

Currently unavailable

18

Troy-Bilt 792037

Screw, Hex Hd Sems, 5/16-18 x 1

$

$

Currently unavailable

19

Troy-Bilt 780137

Ring, Load

$

$

Currently unavailable

$

$

Currently unavailable

22

Troy-Bilt 792113

Ring, Retaining

$

$

Currently unavailable

23

Troy-Bilt 792110

Jam Nut, 3/4-16

$

$

Currently unavailable

24

Troy-Bilt 792114

Key, Woodruff

$

$

Currently unavailable

25

Troy-Bilt 792115

Washer, Flat

$

$

Currently unavailable

26

Troy-Bilt 792116

Plug, Pipe, 1/4-18

$

$

Currently unavailable

27

Troy-Bilt 792117

Reducer, Pipe (1/4-18 to 1/8-27)

$

$

Currently unavailable

28

Troy-Bilt 792039

Plug, Pipe

$

$

Currently unavailable

29

Troy-Bilt 792118

Valve, Relief

$

$

Currently unavailable
