51048SR - Troy-Bilt 48" Side-Discharge Mower Deck (SN: 0100101 - 0199999) 48" S.D. MOWER ATTACHMENT Parts Diagram

48" Side-Discharge Mower Deck

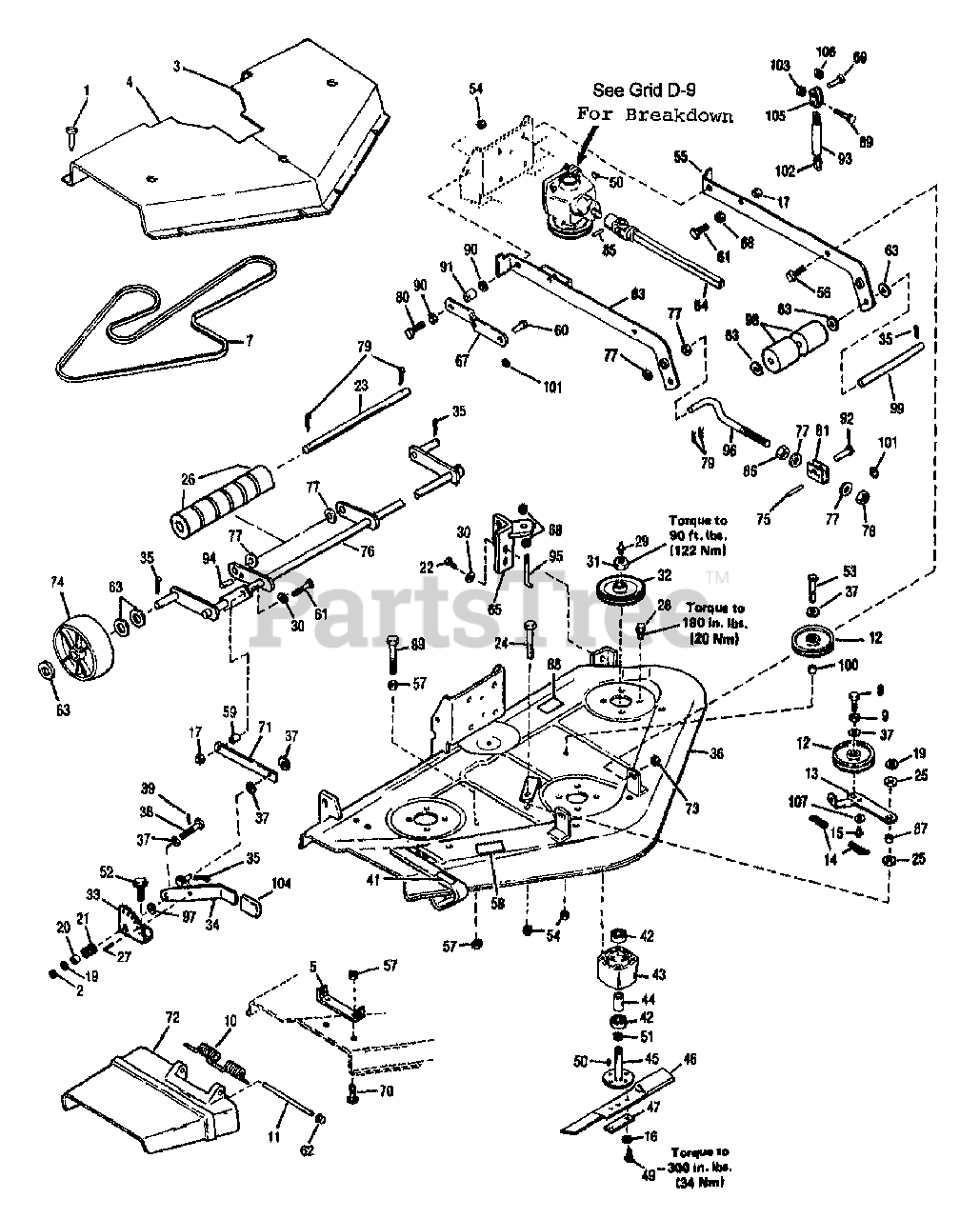

48" S.D. MOWER ATTACHMENT Parts Diagram

  • Title

1

MTD 1185750

SCR

$

$

Not available

2

MTD 1185496

NUT

$

$

Not available

3

Troy-Bilt 1742483GAR

COVER-LH

$

$

Currently unavailable

4

Troy-Bilt 1742482GAR

COVER-RH

$

$

Currently unavailable

5

Troy-Bilt 1728005GAR

BRKT-HINGE
(Superseded to 1728005001)

$

$

Not available

7

Troy-Bilt 1750842

BELT-V

$73.99

$

Usually ships in 3-6 days

0

8

MTD 1100015

SCR-HH 1/4-20X1.25 G5 ZP

$

$

Not available

9

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

10

Troy-Bilt 1756596

SPRING-TORSION

$

$

Not available

11

Troy-Bilt 1756760

ROD

$

$

Not available

12

Troy-Bilt 1752354

PULLEY-IDLER

$84.99

$

Usually ships in 3-6 days

0

13

MTD 1724923GAR

ARM

$

$

Not available

14

Troy-Bilt 1724822

SPRING
(Superseded to 1746769)

$16.99

$

Usually ships in 3-6 days

0

15

MTD 1724924

BUTTON-WEAR

$

$

Not available

16

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

19

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

20

MTD 1715387

SPACER-TUBULAR

$

$

Not available

21

MTD 1716583

SPRING

$

$

Not available

22

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1738111

AXLE-ROLLER

$

$

Not available

24

Troy-Bilt 1100064

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$6.99

$

In Stock, only 1 left!

0

25

MTD 1724929

WASHER

$

$

Not available

26

Troy-Bilt 1754611

ROLLER
(Superseded to 1765851)

$22.99

$

Usually ships in 3-6 days

0

27

MTD 1733103

PIN-.312X.75

$

$

Not available

28

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

30

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

31

Troy-Bilt 1185093

NUT-H/LK
(Superseded to 1762168)

$17.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 1752307

SHEAVE-BLADE

$103.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 1755876GAR

QUADRANT

$

$

Currently unavailable

34

Troy-Bilt 1755886GAR

ASSM-HANDLE

$

$

Currently unavailable

35

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 1757517

BASE-MOWER W/DECALS

$

$

Currently unavailable

37

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

38

Troy-Bilt 1755872

SCR-HH 1/2-13X2.5 SPECIAL

$

$

Currently unavailable

39

Troy-Bilt 1185256

PIN-ROLL

$

$

Currently unavailable

41

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

42

Troy-Bilt 1185828

BEARING-BALL

$46.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 1724029

HOUSING-SPINDLE

$176.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 1746889

SPACER

$

$

Currently unavailable

45

Troy-Bilt 1742606

SHAFT
(Superseded to 1742625)

$333.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 1738571

BLADE-CUTTER
(Superseded to 1772145)

$43.99

$

Usually ships in 3-6 days

0

47

MTD 1724051

PLATE

$

$

Not available

49

Troy-Bilt 1100009

SCR-HH 3/8-24X1.0 G5 ZP
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

50

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

51

MTD 1740627

WASHER-SPECIAL

$

$

Not available

52

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 1100067

SCR-HH 1/2-13X2.0 G5 ZP

$

$

Not available

54

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 8

0

55

MTD 1751721GAR

ASSM-SUPPORT LH

$

$

Not available

56

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 1750713

DECAL-OPEI CAUTION
(Superseded to 1739687)

$7.49

$

Usually ships in 3-6 days

0

59

MTD 1738160

SPACER-.625X.39X.343

$

$

Not available

60

Troy-Bilt 1752309

PIN-CLEVIS .625X1.44
(Superseded to 711-0654)

$16.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

62

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

63

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

65

MTD 1748097GAR

ASSM-SUPT

$

$

Not available

?66

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

67

Troy-Bilt 1746169GAR

LINK-DRAG

$

$

Currently unavailable

68

Troy-Bilt 1185506

NUT-HEX/JAM 3/8-16 ZP
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

69

Troy-Bilt 1708126

PIN-CLEVIS
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

70

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 1755887GAR

LINK-CONNECTING

$

$

Currently unavailable

72

MTD 1755750

DEFLECTOR-DISCHARGE

$

$

Not available

73

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

74

MTD 1740569

WHEEL-GAGE

$

$

Not available

75

Troy-Bilt 1185597

PIN-DRIVE
(Superseded to 715-0150)

$4.49

$

In Stock, Qty 17

0

76

Troy-Bilt 1748077GAR

ASSM-SHAFT

$

$

Currently unavailable

77

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

78

Troy-Bilt 1110113

NUT .750-10
(Superseded to 712-3107)

$11.99

$

Usually ships in 3-6 days

0

79

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

80

MTD 1100065

SCR-HH 1/2-13X1.75 G5 ZP

$

$

Not available

81

Troy-Bilt 1746171GAR

BRACKET

$

$

Currently unavailable

83

Troy-Bilt 1751722GAR

ASSM-SUPT RH

$

$

Currently unavailable

84

Troy-Bilt 1755803

ASSM-DRIVESHAFT

$

$

Currently unavailable

85

MTD 1185376

PIN-DRIVE

$

$

Not available

86

Troy-Bilt 1186236

NUT
(Superseded to 712-0301)

$7.99

$

In Stock, only 1 left!

0

87

MTD 1728030

SLEEVE-BEARING

$

$

Not available

88

MTD 1757419

DECAL-BELT DRIVE

$

$

Not available

89

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

90

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

91

MTD 1746172

SPACER-TUBULAR

$

$

Not available

92

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 1755800

SLEEVE-CHAIN

$

$

Not available

94

MTD 1177625

PIN-ROLL 1/8 X 3/4

$

$

Not available

95

MTD 1742328

BOLT-HOOK

$

$

Not available

96

Troy-Bilt 1746170GAR

HITCH LINK

$

$

Currently unavailable

97

Troy-Bilt 1724927

SPACER-.75X.515X.255

$

$

Not available

98

MTD 1751704

ROLLER

$

$

Not available

99

MTD 1751705

ROLLER

$

$

Not available

100

MTD 1730681

SPACER-TUBULAR

$

$

Not available

101

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

Usually ships in 3-6 days

0

102

MTD 1752129

KIT-CHAIN

$

$

Not available

103

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

104

MTD 1753978

GRIP-HANDLE

$

$

Not available

105

MTD 1753009

CLEVIS

$

$

Not available

106

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

107

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
