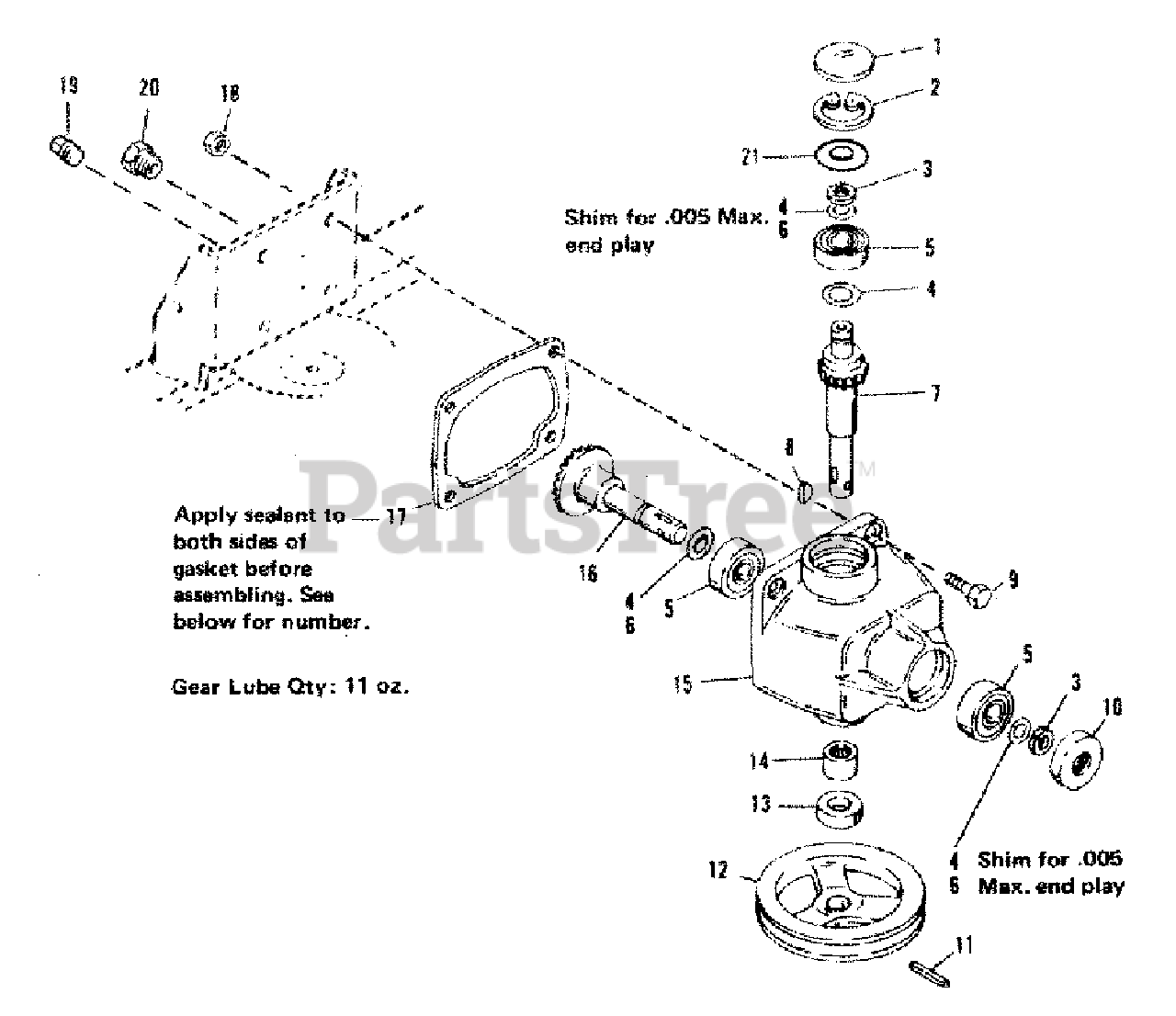

51048R - Troy-Bilt 48" Rear-Discharge Mower Deck Gear Case Assembly Parts Diagram

48" Rear-Discharge Mower Deck

Gear Case Assembly Parts Diagram

  • Title

1

Troy-Bilt 1711380

Expansion Plug

$

$

Not available

2

MTD 1118730

Retaining Ring

$

$

Not available

3

Troy-Bilt 1185649

Retaining Ring

$

$

Not available

4

MTD 1728832

Shim Washer .005

$

$

Not available

5

Troy-Bilt 1724813

Ball Bearing

$

$

Currently unavailable

6

MTD 1728833

Shim .010

$

$

Not available

7

Troy-Bilt 1724905

Output Shaft

$

$

Currently unavailable

8

Troy-Bilt 1104436

Woodruff Key, 3/16 x 3/4
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

9

MTD 1100808

Hex Hd. Capscrew, 5/16-18 x 1-1/4

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

10

Troy-Bilt 1723758

Oil Seal

$

$

Not available

11

MTD 1737419

Drive Pin, 1/4 x 1-1/2

$

$

Not available

12

Troy-Bilt 1744919

Drive Sheave

$

$

Currently unavailable

13

Troy-Bilt 1185296

Oil Seal
(Superseded to SU-5000174)

$37.99

$

In Stock, only 3 left!

0

14

MTD 1185280

Needle Bearing

$

$

Not available

15

MTD 1723754

Gear Case

$

$

Not available

16

Troy-Bilt 1724906

Bevel Gear, 26T

$

$

Not available

17

MTD 1745476

Gear Case Gasket

$

$

Not available

18

Troy-Bilt 1732499

Top Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

19

MTD 1105678

Square Plug, 3/8 NPT

$

$

Not available

20

MTD 1721442

Pressure Relief Valve

$

$

Not available

21

MTD 1718781

Shim .005

$

$

Not available

Troy-Bilt 1723456

Gear Lube, EP90 (8 oz.)

$

$

Currently unavailable

Troy-Bilt 1730118

Sealant 3 oz.

$

$

Currently unavailable
