51020 - Toro 13" Cordless String Trimmer (SN: 314000001 - 314999999) (2014) 13IN CORDLESS DUAL-LINE TRIMMER ASSEMBLY Parts Diagram

13" Cordless String Trimmer

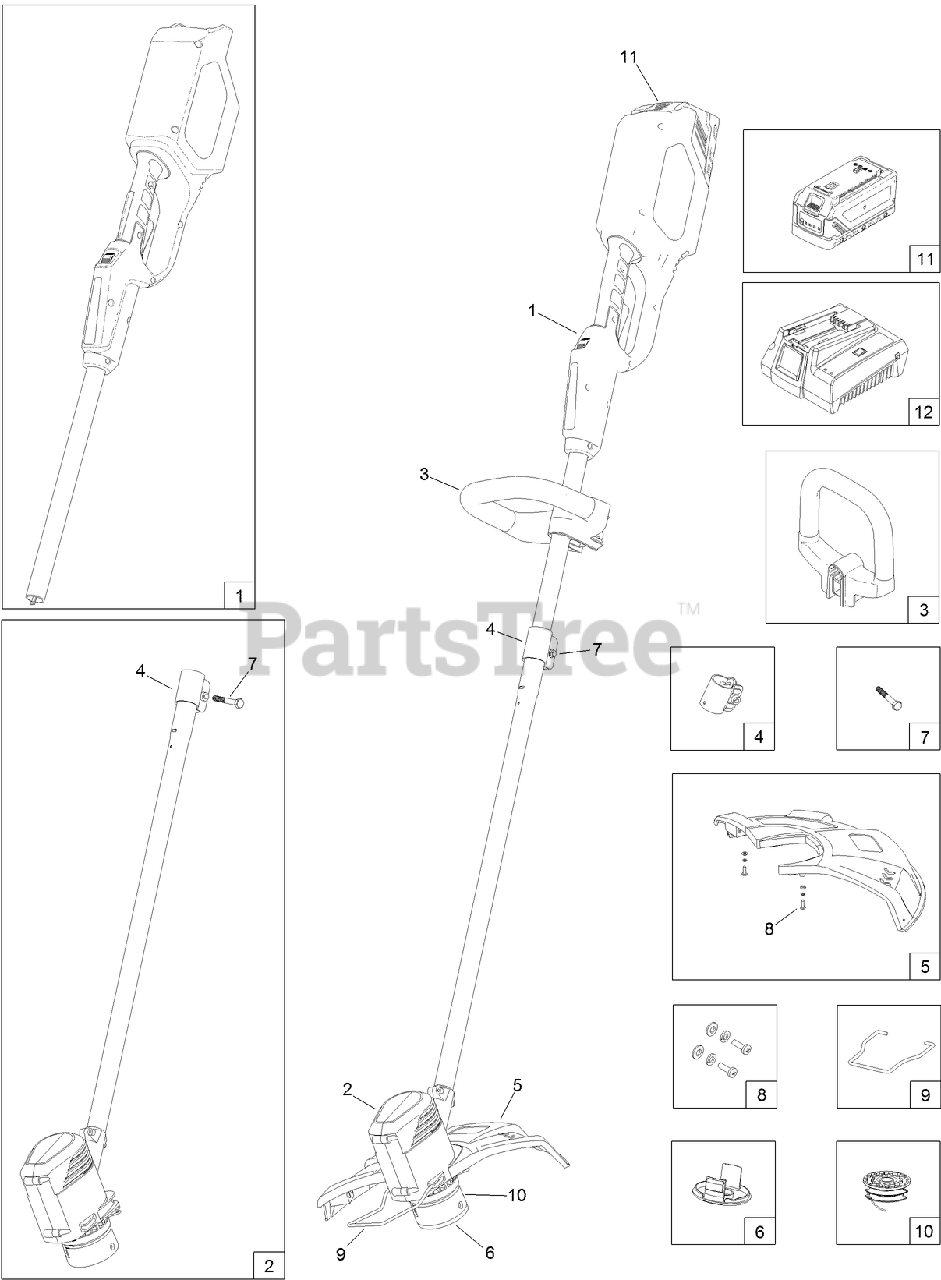

13IN CORDLESS DUAL-LINE TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 125-8315

UPPER HANDLE ASM

$

$

Currently unavailable

2

Toro 125-8316

HOUSING-MOTOR, LOWER

$

$

Currently unavailable

3

Toro 125-8282

HANDLE-ASSIST

$19.99

$

Usually ships in 3-6 days

0

4

Toro 125-8283

CLAMP-CONNECTION, SHAFT

$13.99

$

Usually ships in 3-6 days

0

5

Toro 125-8317

GRASS SHIELD ASM

$12.99

$

Usually ships in 3-6 days

0

6

Toro 125-8319

CAP-RETAINER, SPOOL

$9.99

$

Usually ships in 3-6 days

0

7

Toro 125-8286

SCREW

$0.99

$

Usually ships in 3-6 days

0

8

Toro 125-8318

SCREW WITH WASHERS ASM

$

$

Not available

9

Toro 125-8263

WIRE-GUIDE, STRING TRIMMER

$

$

Not available

10

Toro 88511

TRIMMER SPOOL-DUAL LINE, 1-PACK

$

$

Currently unavailable

11

Toro 88515

BATTERY-48V (2AH)

$

$

Currently unavailable

12

Toro 88517

CHARGER-48V

$

$

Currently unavailable
