51000 (24-G) - Gravely Lawn Tractor TRANSMISSION CONTROLS Parts Diagram

Lawn Tractor

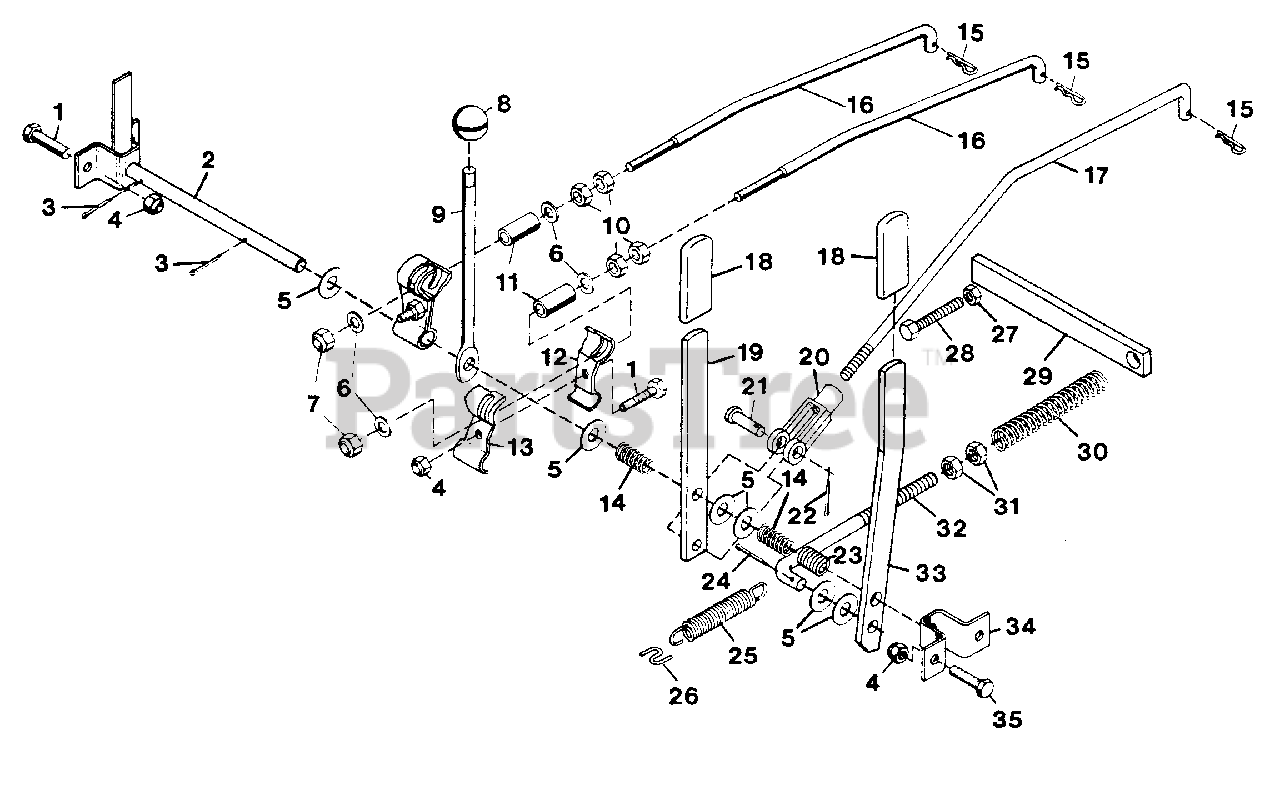

TRANSMISSION CONTROLS Parts Diagram

  • Title

1

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 045857

WELDMENT, CROSS SHAFT
(Superseded to 08771400)

$

$

Not available

3

Gravely 137185

PIN, COTTER .12X1.0
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

4

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120396

WASHER, FLAT .531X1.06X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120388

WASHER, FLAT .438X1.00X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 010670

KNOB, CONTROL
(Superseded to 07537600)

$13.99

$

Usually ships in 4-12 days

0

9

Gravely 018371

LEVER, SHIFT
(Superseded to 08653500)

$

$

Not available

10

Gravely 124829

NUT, JAM 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 033986

BUSH., ST. .396X.490X1.63 STL.
(Superseded to 08710300)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 033988

ARM, SHIFTER R.H.
(Superseded to 08735300)

$

$

Not available

13

Gravely 033989

ARM, SHIFTER L.H.
(Superseded to 08735400)

$

$

Not available

14

Gravely 018372

SPRING, COMP. 2.75X.625X34
(Superseded to 08328000)

$

$

Not available

15

Gravely 011860

PIN, COTTER HAIR
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 033994

ROD, SHIFT
(Superseded to 08654400)

$

$

Not available

17

Gravely 040143

ROD, 2-SPEED
(Superseded to 08657700)

$

$

Not available

18

Gravely 034067

GRIP, HANDLE
(Superseded to 07523000)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 033990

LEVER, HI-LO SHIFT
(Superseded to 08735500)

$

$

Not available

20

Gravely 018380

CLEVIS, 3/8-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 138078

PIN, CLEVIS .375X.948
(Superseded to 06811900)

$4.99

$

In Stock, Qty 5

0

22

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

23

Gravely 011779

SPRING, COMP. 1X.78X338
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

24

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 011263

SPRING, EXTENSION 5.5X.5X20 RATE
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

26

Gravely 011329

CLIP, SPRING
(Superseded to 08657900)

$

$

Not available

27

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 044609

BOLT, HEX 3/8-16X2.50
(Superseded to 05943100)

$3.49

$

In Stock, only 3 left!

0

29

Gravely 046174

SPRING, PTO CLUTCH
(Superseded to 08776553)

$

$

Not available

30

Gravely 046175

SPRING, COMP.(PTO LOADING)
(Superseded to 08342200)

Note: (PTO LOADING)

$

$

Not available

31

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 040815

ROD, LIFT
(Superseded to 08655500)

$

$

Not available

33

Gravely 047398

LEVER, PTO CONTROL
(Superseded to 08780500)

$

$

Not available

34

Gravely 011096

BRACKET, CROSS SHAFT
(Superseded to 08860700)

$

$

Not available

35

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0
