5100/72RCE (5900725) - Ferris 72" Rear-Discharge Mower Deck 72" Mower Deck - Deflector & Shield - Rear Discharge Parts Diagram

72" Rear-Discharge Mower Deck

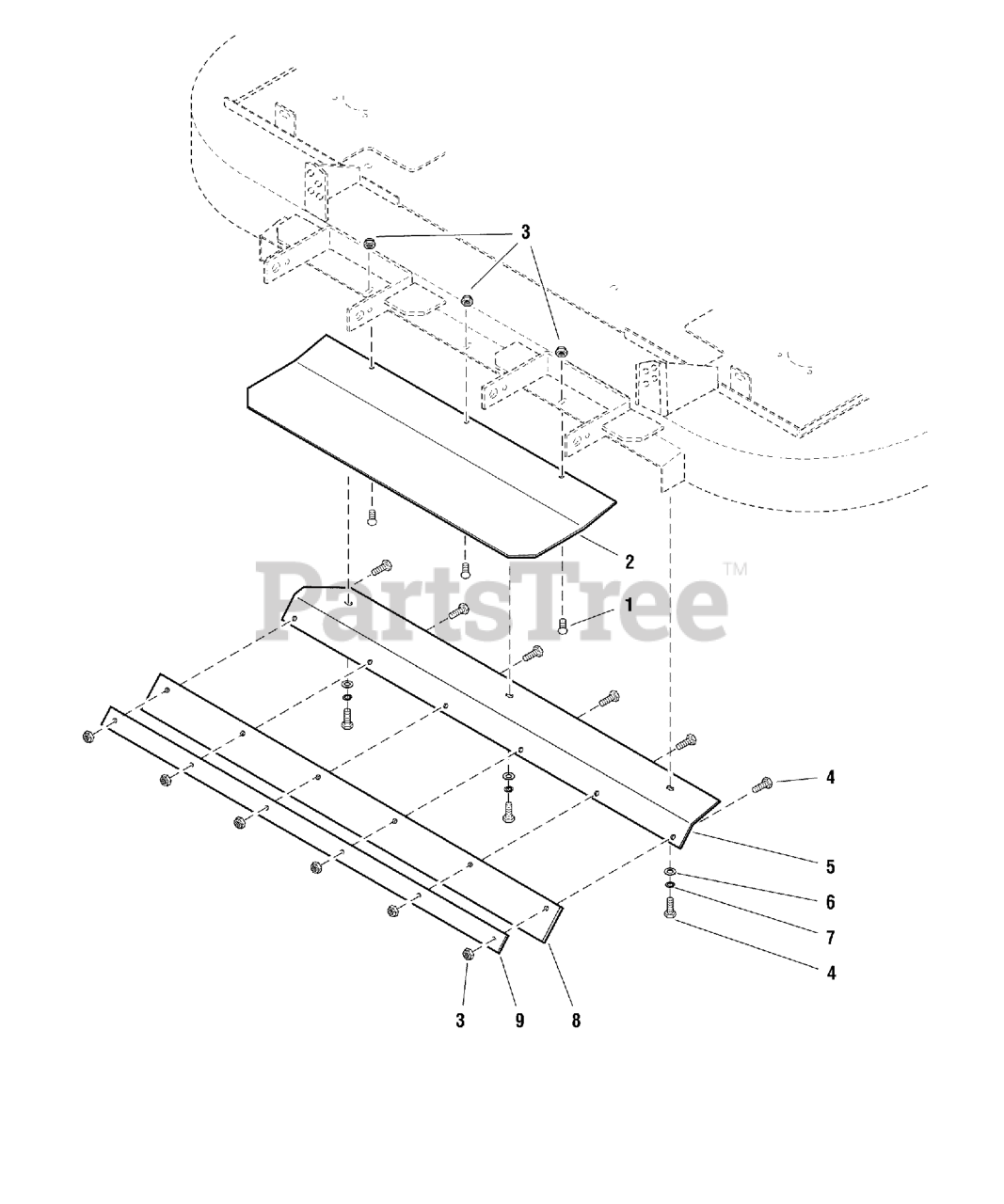

72" Mower Deck - Deflector & Shield - Rear Discharge Parts Diagram

  • Title

1

Ferris 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

2

Ferris 5401240B

PLATE, SHIELD - RED

$66.99

$

Usually ships in 2-12 days

0

3

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

5

Ferris 5048469B

PLATE, ANGLE DEFLECTOR

$45.99

$

Usually ships in 2-12 days

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5048470

DEFLECTOR

$78.99

$

Usually ships in 2-12 days

0

9

Ferris 5048471B

PLATE, RETAINING

$41.99

$

Usually ships in 2-12 days

0
