5100/72 (5900591) - Ferris 72" Side-Discharge iCD Mower Deck 72" Mower Deck - Housing, Covers & Spindles - Side Discharge Parts Diagram

72" Side-Discharge iCD Mower Deck

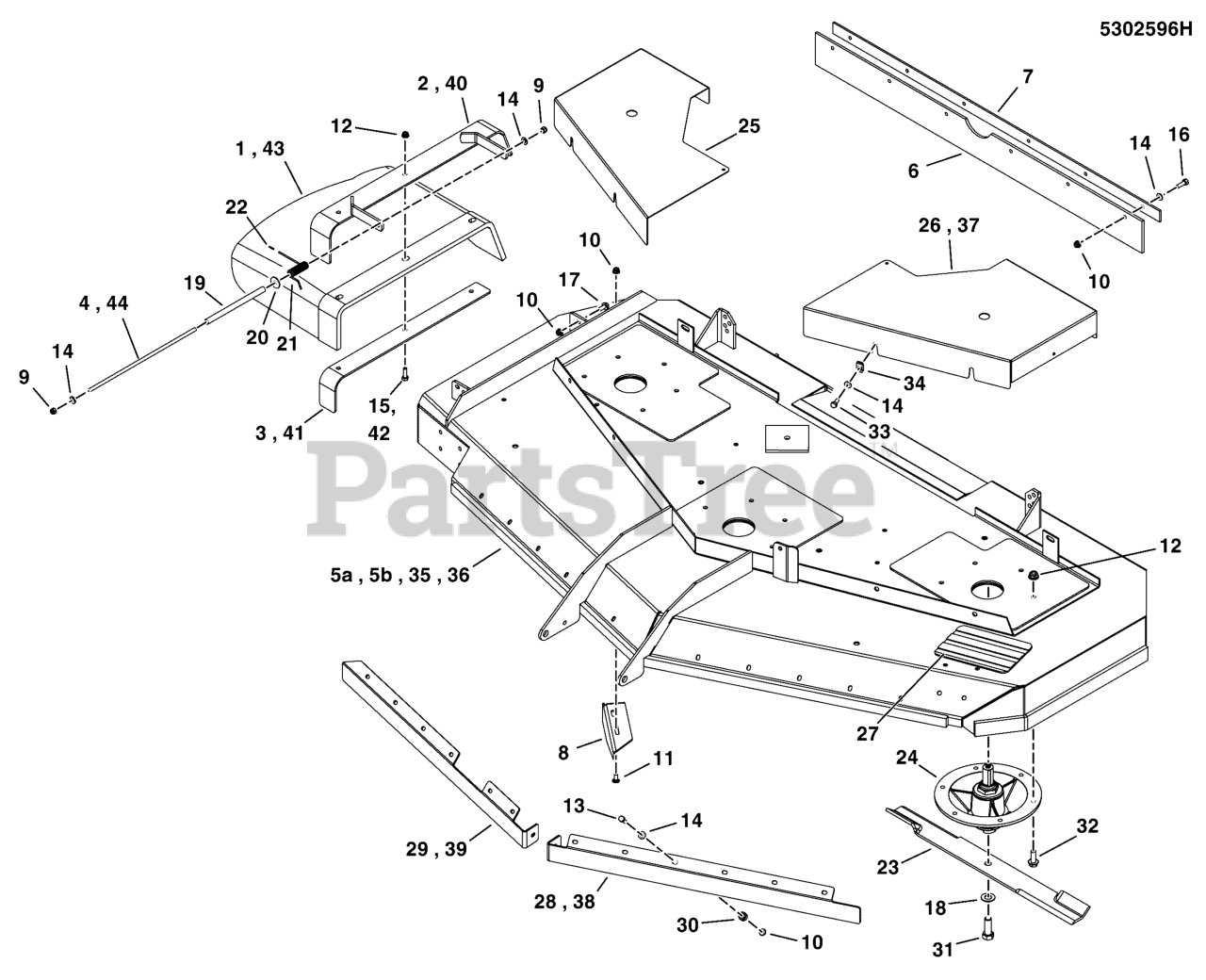

72" Mower Deck - Housing, Covers & Spindles - Side Discharge Parts Diagram

  • Title

1

Ferris 5402403

CHUTE, DISCHARGE, RUBBER, 61/72, BENT
(Superseded to 5402403SM)

Note: (S/N: 2017118253 & Below)

$186.99

$

Usually ships in 2-12 days

0

2

Ferris 5408016A

WELD, FRAME, CHUTE, 72 - BLK

Note: (S/N: 2017118253 & Below)

$76.99

$

Usually ships in 2-12 days

0

3

Ferris 5408018A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

Note: (S/N: 2017118253 & Below)

$22.99

$

Usually ships in 2-12 days

0

4

Ferris 5103045

ROD, MOUNT, CHUTE, 72, CZ

Note: (S/N: 2017118253 & Below)

$15.99

$

Usually ships in 2-12 days

0

5A

Ferris 5600509

* DECK SHELL W/ DECALS, 5100/72

Note: (Domestic Models - S/N: 2016893014 & Below)

$3248.99

$

Usually ships in 2-12 days

0

5B

Ferris 5600508

* DECK SHELL W/ DECALS, 5100/72 CE

Note: (Export Models - S/N: 2016893014 & Below)

$3248.99

$

Usually ships in 2-12 days

0

6

Ferris 5102621

FLAP, STRIPER, 72 DECK
(Superseded to 5102621YP)

$106.99

$

Usually ships in 2-12 days

0

7

Ferris 5406164A

PLATE, SUPPORT, 72" - BLK

$34.99

$

Usually ships in 2-12 days

0

8

Ferris 5407876A

PLATE, DEFLECTOR, 72 - BLK
(Superseded to 5407876AA)

$22.99

$

Usually ships in 2-12 days

0

9

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

12

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

Note: (Export Models)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

Note: (S/N: 2017118253 & Below)

$3.99

$

In Stock, Qty 12

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

17

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

18

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

19

Ferris 5050086X12P5

TUBE, 1/2 X 3/8 X 12.50 BLACK POLY
(Superseded to 5050086X12P5FS)

Note: (Export Models)

$31.99

$

Usually ships in 2-12 days

0

20

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

Note: (Export Models)

$3.99

$

In Stock, only 1 left!

0

21

Ferris 5023385

SPRING, TORSION
(Superseded to 5023385SM)

Note: (Export Models)

$8.49

$

Usually ships in 2-12 days

0

22

Ferris 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

Note: (Export Models)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5102227S

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

$110.99

$

In Stock, only 2 left!

0

24

Ferris 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$296.99

$

In Stock, only 1 left!

0

24

Ferris 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$351.99

$

In Stock, Qty 5

0

25

Ferris 5401136B

GUARD, DECK - RH - RED
(Superseded to 5401136BFS)

$78.99

$

Usually ships in 2-12 days

0

26

Ferris 5408055B

GUARD, DECK - LH - RED

Note: (S/N: 2016893014 & Below)

$86.99

$

Usually ships in 2-12 days

0

27

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

Note: (Not Shown)

$9.49

$

In Stock, only 1 left!

0

28

Ferris 5407874B

BAFFLE, BLOWOUT, IS5100Z CE, LH - RED

Note: (Export Models)

$43.99

$

Usually ships in 2-12 days

0

29

Ferris 5407875B

BAFFLE, BLOWOUT, IS5100Z CE, RH - RED

Note: (Export Models)

$44.99

$

Usually ships in 2-12 days

0

30

Ferris 5047408

SPACER, .39 X .75 X .50, CZ

Note: (Export Models - S/N: 2016893014 & Below)

$

$

Currently unavailable

31

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

33

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

34

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

35

Ferris 5600822

* DECK SHELL W/ DECALS, 72, 5100, DOM

Note: (Domestic Models - S/N: 2016893015 & Above)

$3248.99

$

Usually ships in 2-12 days

0

36

Ferris 5600824

* DECK SHELL W/ DECALS, 72, 5100, CE

Note: (Export Models - S/N: 2016893015 & Above)

$

$

Currently unavailable

37

Ferris 5412966B

GUARD, 72" LH - RED
(Superseded to 5412966BFS)

Note: (S/N: 2016893015 & Above)

$72.99

$

Usually ships in 2-12 days

0

38

Ferris 5413186B

PLATE, BLOWOUT BAFFLE IS5100Z CE, LH - RED
(Superseded to 5413186BFS)

Note: (Export Models - S/N: 2016893015 & Above)

$46.99

$

Usually ships in 2-12 days

0

39

Ferris 5413185B

PLATE, BLOWOUT BAFFLE IS5100Z CE, RH - RED
(Superseded to 5413185BFS)

Note: (Export Models - S/N: 2016893015 & Above)

$46.99

$

Usually ships in 2-12 days

0

40

Ferris 84008171

MOUNT

Note: (S/N: 2017118254 & Above)

$136.99

$

Usually ships in 2-12 days

0

41

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

Note: (S/N: 2017118254 & Above)

$28.99

$

In Stock, Qty 5

0

42

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017118254 & Above)

$3.99

$

Usually ships in 2-12 days

0

43

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

Note: (S/N: 2017118254 & Above)

$160.99

$

Usually ships in 2-12 days

0

44

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

Note: (S/N: 2017118254 & Above)

$11.99

$

Usually ships in 2-12 days

0
