5100/61RDCE (5900997) - Ferris 61" Rear-Discharge iCD Mower Deck 61" Mower Deck - Pulleys, Belt & Idler Arm (S/N: 2016893015 & Above) Parts Diagram

61" Rear-Discharge iCD Mower Deck

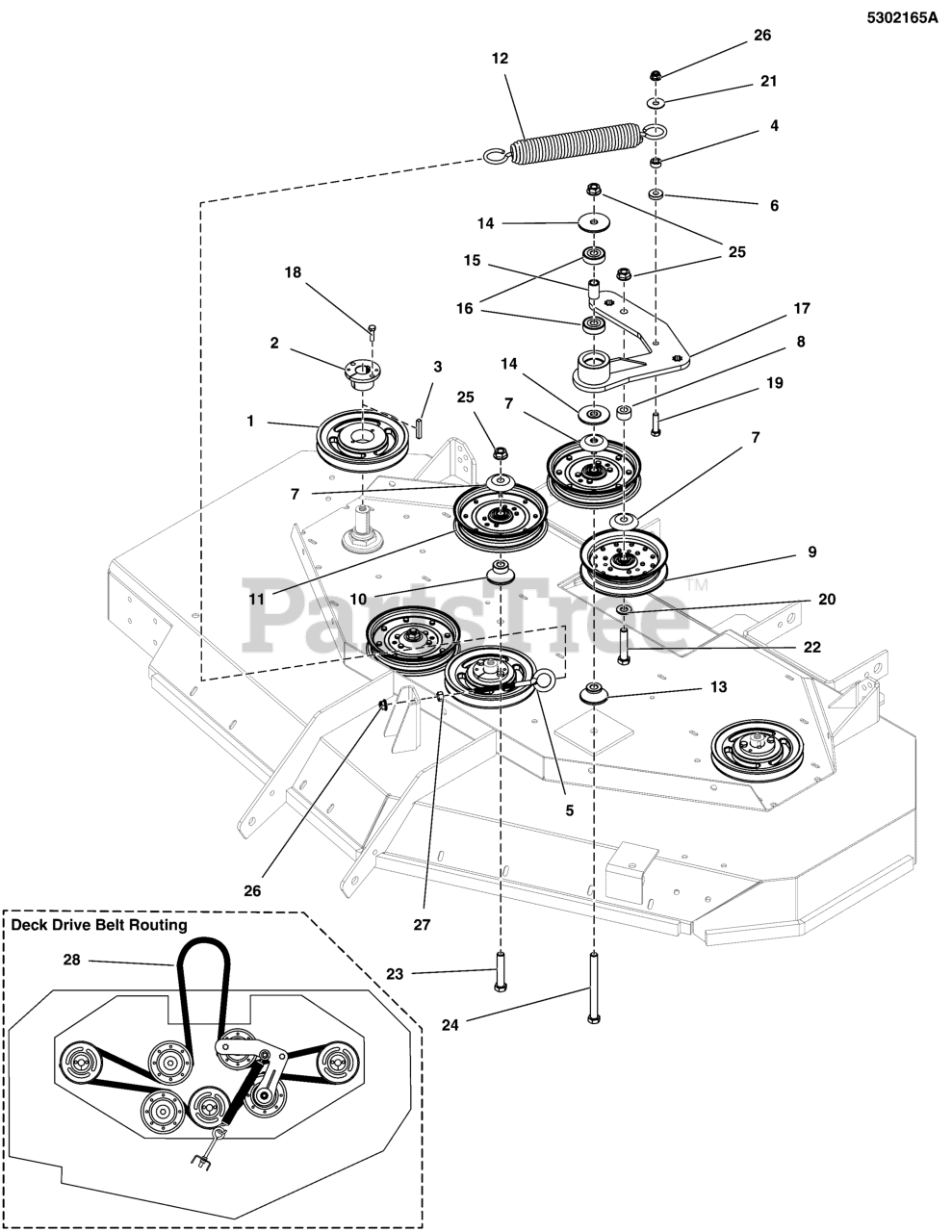

61" Mower Deck - Pulleys, Belt & Idler Arm (S/N: 2016893015 & Above) Parts Diagram

  • Title

1

Ferris 5020815

PULLEY, SPINDLE, BH66
(Superseded to 5020815SM)

$111.99

$

Usually ships in 2-12 days

0

2

Ferris 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

3

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

4

Ferris 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

5

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

6

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

7

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

8

Ferris 5101162

SPACER, .52 X 1.00 X .56, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, Qty 8

0

9

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

10

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

11

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

12

Ferris 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

In Stock, Qty 5

0

13

Ferris 5104342

IDLER MOUNT, .88 HIGH
(Superseded to 5104342YP)

$11.99

$

In Stock, only 1 left!

0

14

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

In Stock, only 2 left!

0

15

Ferris 5104456

SPACER, .51 X .75 X 1.22, PM CZ
(Superseded to 5104456YP)

$4.49

$

In Stock, only 2 left!

0

16

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 3 left!

0

17

Ferris 5412572A

WELD, IDLER ARM - BLK
(Superseded to 5415907A)

$165.99

$

Usually ships in 2-12 days

0

18

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

19

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

21

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

22

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

23

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

24

Ferris 5025017X44

BOLT, 1/2-13 X 5-1/2 GD5 CZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

25

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

26

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

28

Ferris 5104067

BELT, 5V, 197.90"EL, LRG ARAMID, WRP, RC
(Superseded to 5104067FS)

$160.99

$

In Stock, only 1 left!

0
