510 (954140052-A) - Husqvarna Walk-Behind Mower (1998-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

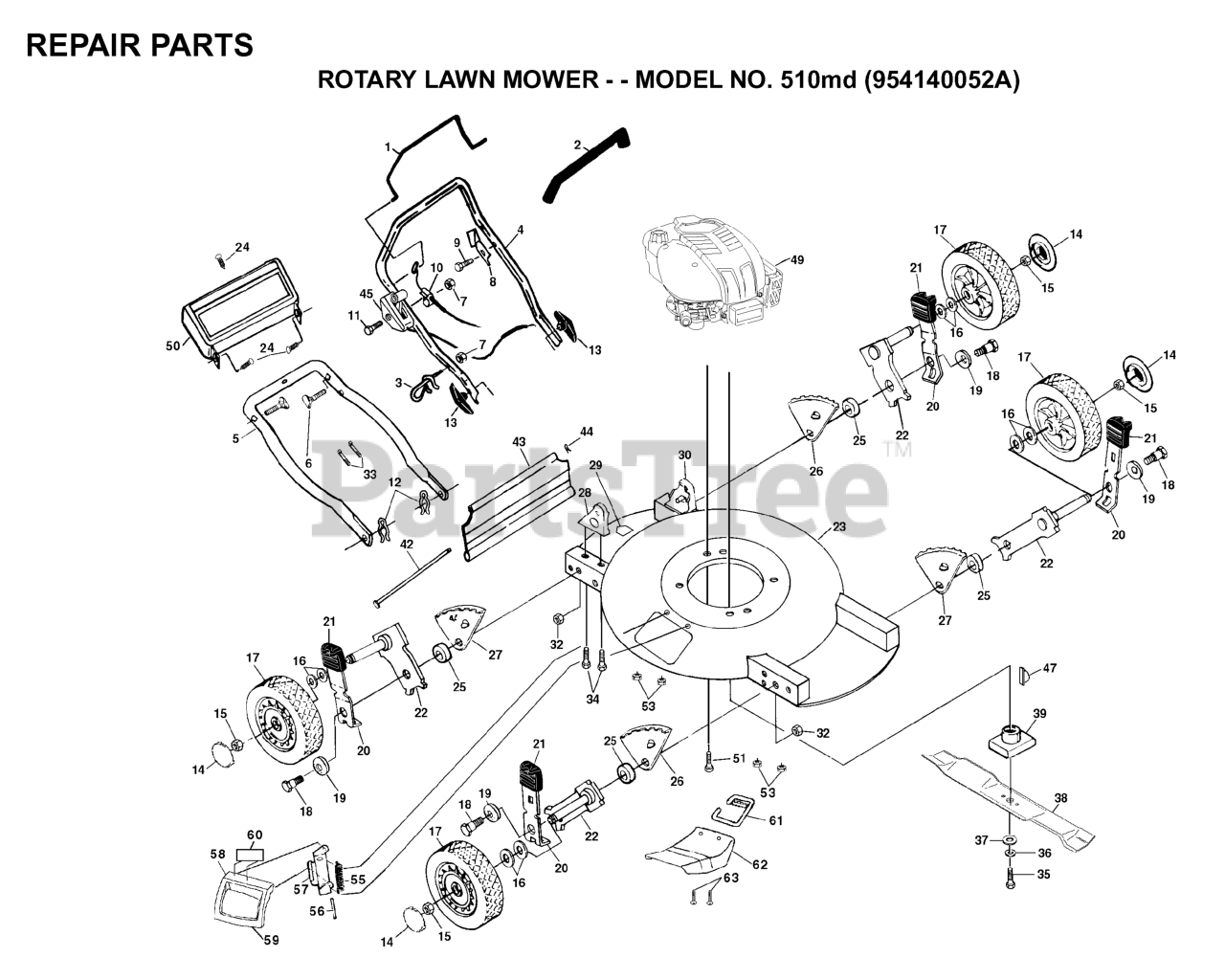

PRODUCT COMPLETE Parts Diagram

  • Title
3

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

62

Husqvarna 532752118

MULCHER DEFLECTOR

$

$

Not available

34

Husqvarna 532149741

SCREW.5/16-18X3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

7

Husqvarna 532063601

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532157082

HANDLE, LOWER
(Superseded to 532157081)

$

$

Not available

13

Husqvarna 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

$

$

Not available

24

$

$

Not available

30

Husqvarna 532153027

HDLE BRKT ASSY LH
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532151254

AXLE ARM
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532851514

BLADE ADAPTOR

$17.99

$

In Stock, Qty 20+

0

58

Husqvarna 532154829

MULCHER DOOR

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

50

Husqvarna 532157070

TRIM PLATE

$

$

Not available

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532850735

CONTROL BAR/BLACK

$

$

Not available

20

Husqvarna 532125066

SELECTOR SPRING

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

6

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

44

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532800370

WHL ADJ BRKT RF/LR
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 532751399

BRACKET.CHUTE.MTG

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

15

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

63

Husqvarna 874180410

Truss Head Screw

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532700644

THROTTLE CONTROL

$17.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532153817

UPPER HANDLE
(Superseded to 532166268)

$

$

Not available

32

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532700892

CABLE.CONTROL.MZR.RH.SP/PUSH

$

$

Not available

28

Husqvarna 532153026

HDLE BRKT ASSY RH
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532145106

BLADE.20.MULCH.(50DK,6020MD)

$20.99

$

In Stock, only 1 left!

0

21

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

36

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

19

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$9.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

57

Husqvarna 532087593

BRACKET PM

$6.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

16

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

29

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532800372

WHEEL & TIRE

$

$

Not available

33

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532063601

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

27

Husqvarna 532800368

WHL ADJ BRKT LF/RR

$

$

Not available

55

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 532008508

HUB CAP PM

$

$

Not available

8

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0
