51 M (954056101) - Husqvarna Walk-Behind Mower (1991-01) General Assembly Parts Diagram

Walk-Behind Mower

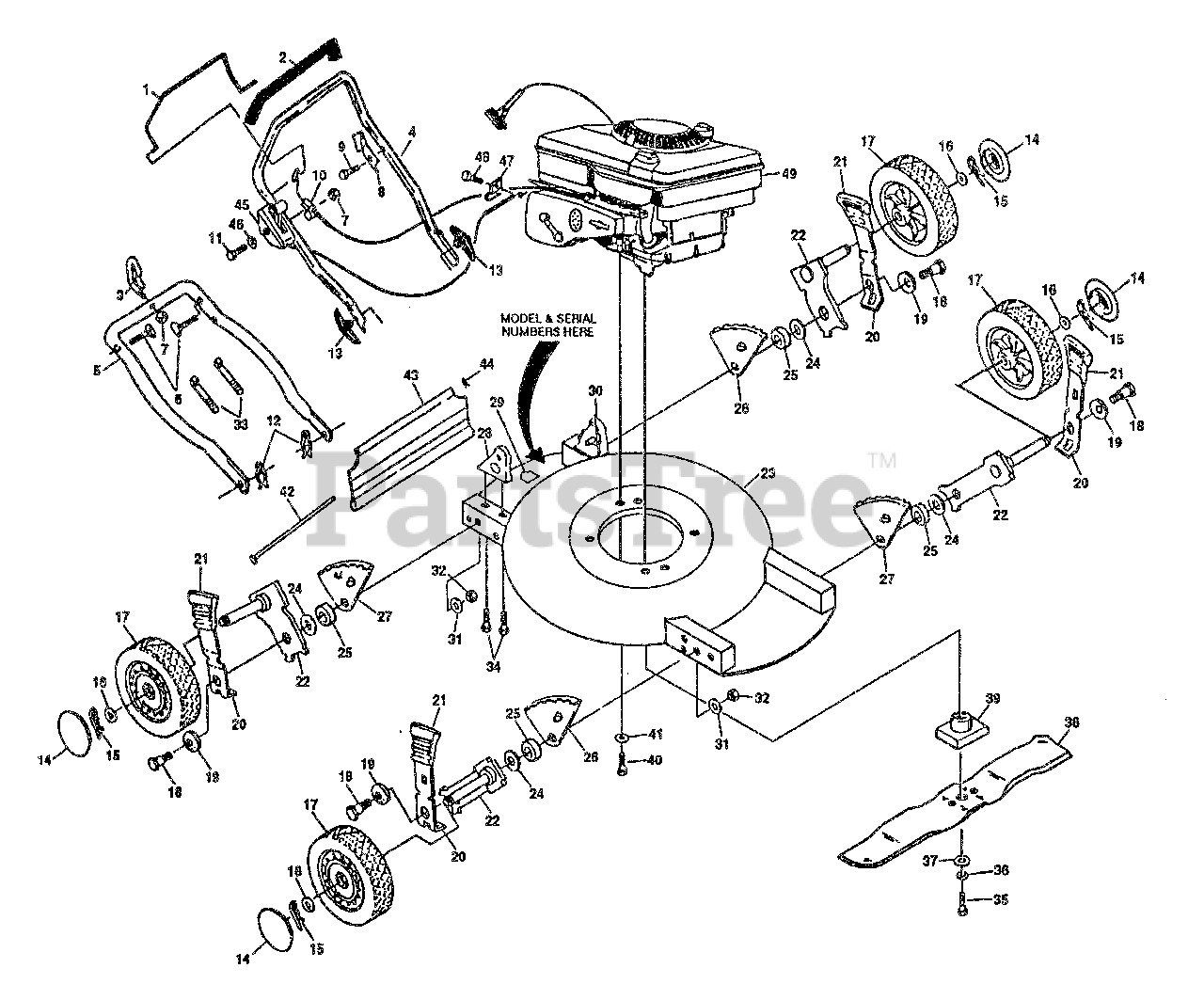

General Assembly Parts Diagram

  • Title

1

Husqvarna 532850758

Control Bar
(Superseded to 532850735)

$

$

Not available

2

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

3

Husqvarna 532800357

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

4

Husqvarna 532125171

Upper Handle - 84676x418 Gray
(Superseded to 532125161)

$

$

Not available

5

Husqvarna 532125173

Lower Handle - 84676x479 Blk
(Superseded to 532157081)

$

$

Not available

6

Husqvarna 532058714

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532063601

Lockout 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

10

Husqvarna 532851809

Engine Zone Control Cable
(Superseded to 532130861)

$

$

Not available

11

Husqvarna 532085692

Pan Head Screw 1/4-20 x 2-1/8
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532063688

Handle Knob
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 532800627

Hubcap

$

$

Not available

15

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532052160

Washer

$

$

Not available

17

Husqvarna 532086884

Wheel & Tire Assembly 8.0 x 2.0

$

$

Currently unavailable

18

Husqvarna 532084921

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

19

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532125068

Selector Spring

$

$

Not available

21

Husqvarna 532077885

Selector Knob

$

$

Currently unavailable

22

Husqvarna 532125079

Axle Arm Assembly

$

$

Not available

23

Husqvarna 532129526

Lawn Mower Housing

Note: (Includes Key No. 29)

$

$

Not available

24

Husqvarna 532088348

Washer

$7.49

$

In Stock, Qty 6

0

25

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 532800370

Wheel Adjusting Bracket (R.F./L.R.)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532800368

Wheel Adjusting Bracket (L.F./R.R.)

$

$

Not available

28

Husqvarna 532125047

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532125049

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532061537

Washer
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532751592

Lockout 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

35

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

38

Husqvarna 532129277

20" Blade
(Superseded to 532700972)

$20.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

40

Husqvarna 532130665

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$

$

Not available

41

Husqvarna 532053998

Washer

$

$

Not available

42

Husqvarna 532129404

Deflector Rod

$

$

Currently unavailable

43

Husqvarna 532751648

Rear Deflector
(Superseded to 532140544)

$

$

Not available

44

Husqvarna 532700279

Retainer Clip

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532851464

Throttle Control
(Superseded to 532851461)

$

$

Not available

46

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532107488

Thread Rolling Screw #10-32 x 5/8

$

$

Not available

49

Engine - Briggs & Stratton, Model No. 124702 Type No. 3175-01

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

Husqvarna 532801607

Operator's Manual (English)

$

$

Not available

Husqvarna 532128431

Operator's Manual (French)

$

$

Currently unavailable

Husqvarna 532800569

Decal (Engine)

$

$

Not available

Husqvarna 532801659

Decal (Housing)

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 800546

Trim Plate

$

$

Currently unavailable

Husqvarna 58875

Trim Plate Clips

$

$

Currently unavailable

Husqvarna 62458

Trim Plate Rivets

$

$

Currently unavailable

Husqvarna 36953

Trim Plate Screws

$

$

Not available
