51 (954065601-B) - Husqvarna Walk-Behind Mower (1995-03) 20" Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

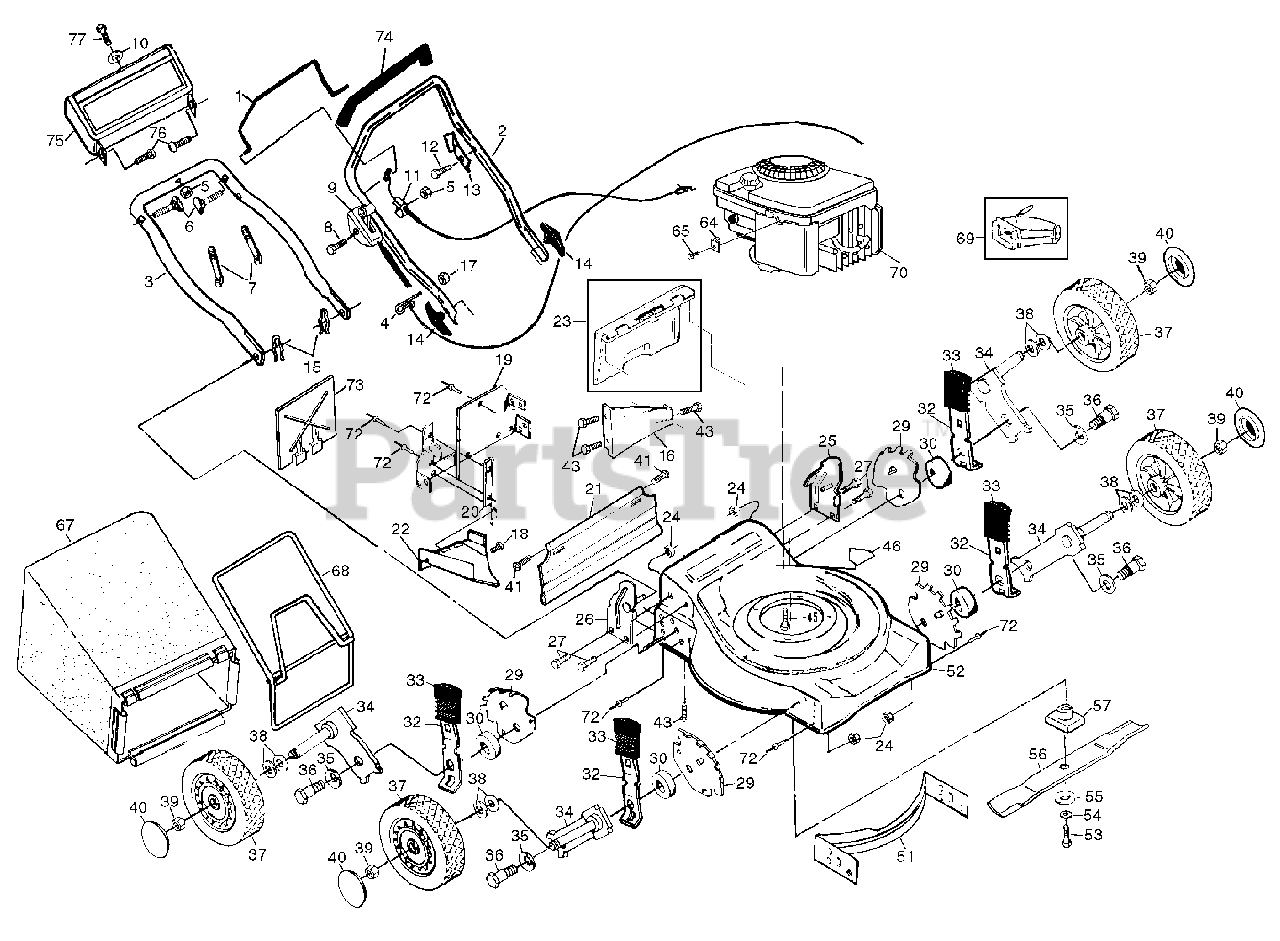

20" Rotary Lawn Mower Parts Diagram

  • Title
1

Husqvarna 532850735

Control Bar

$

$

Not available

2

Husqvarna 532125295

Upper Handle
(Superseded to 532166268)

$

$

Not available

3

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

4

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532144929

Machine Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

9

UNKNOWN

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532130861

Engine Zone Control Cable

$

$

Not available

12

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

13

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532136376

Handle Knobs
(Superseded to 532183724)

$

$

Not available

15

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532125035

Rear Baffle

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 873510400

Keps Locknut 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

18

Husqvarna 532086344

Hex Head Screw

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532138865

Back Plate
(Superseded to 532700356)

$

$

Not available

20

Husqvarna 532138866

Side Baffle
(Superseded to 532700363)

$

$

Not available

21

Husqvarna 532140657

Rear Skirt
(Superseded to 532188984)

$

$

Not available

22

Husqvarna 532125378

Discharge Baffle
(Superseded to 532133188)

$

$

Not available

23

Husqvarna 532147613

Rear Door Assembly Kit

Note: (Incl. Ref. # 58)

$

$

Not available

24

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532139699

Handle Bracket Assembly (Left)
(Superseded to 532700913)

$

$

Not available

26

Husqvarna 532139698

Handle Bracket Assembly (Right)
(Superseded to 532700915)

$

$

Not available

27

Husqvarna 532055187

Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 14

0

29

Husqvarna 532139901

Wheel Adjusting Bracket
(Superseded to 532750085)

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

32

Husqvarna 532141730

Selector Spring
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 532132800

Selector Knob Deluxe
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

34

Husqvarna 532125169

Axle Arm Assembly
(Superseded to 532750610)

$

$

Not available

35

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

37

Husqvarna 532800333

Wheel Assembly
(Superseded to 532435276)

$

$

Not available

38

Husqvarna 532057143

Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

39

Husqvarna 532083923

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

$

$

Not available

41

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

43

Husqvarna 532054583

Hex Tapping Screw 1/4-20 x 1/2

$

$

Not available

45

Husqvarna 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532125311

Front Baffle

$

$

Not available

52

Husqvarna 532149079

Housing Assembly

Note: (Incl. Ref. #46)

$93.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Grd. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

Helical Lock Washer
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 7

0

56

$20.99

$

In Stock, only 1 left!

0

57

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

64

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs and Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532083816

Screw #10 x 5/8

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532800386

Grass Bag
(Superseded to 532134048)

$

$

Not available

68

Husqvarna 532088614

Catcher Frame

$54.99

$

Usually ships in 3-10 days

0

69

MA36 Clipping Deflector

Note: (Not Incl. with Lawn Mower)

$

$

Not available

70

Engine - Briggs/Stratton

Note: Model No. 127702; These parts must be purchased through an authorized Briggs and Stratton dealer.

$

$

Not available

72

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532142167

Mulcher Plate
(Superseded to 532166650)

$17.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

75

Husqvarna 532800547

Trim Plate

$

$

Not available

$

$

Not available

77

Husqvarna 532085436

Screw
(Superseded to 874760424)

$

$

Not available

Husqvarna 532131843

Housing Decal

$

$

Not available

Husqvarna 532850788

Trim Plate Decal

$

$

Not available

Husqvarna 532149122

Owner's Manual

Note: (English/French)

$6.99

$

Usually ships in 3-10 days

0
