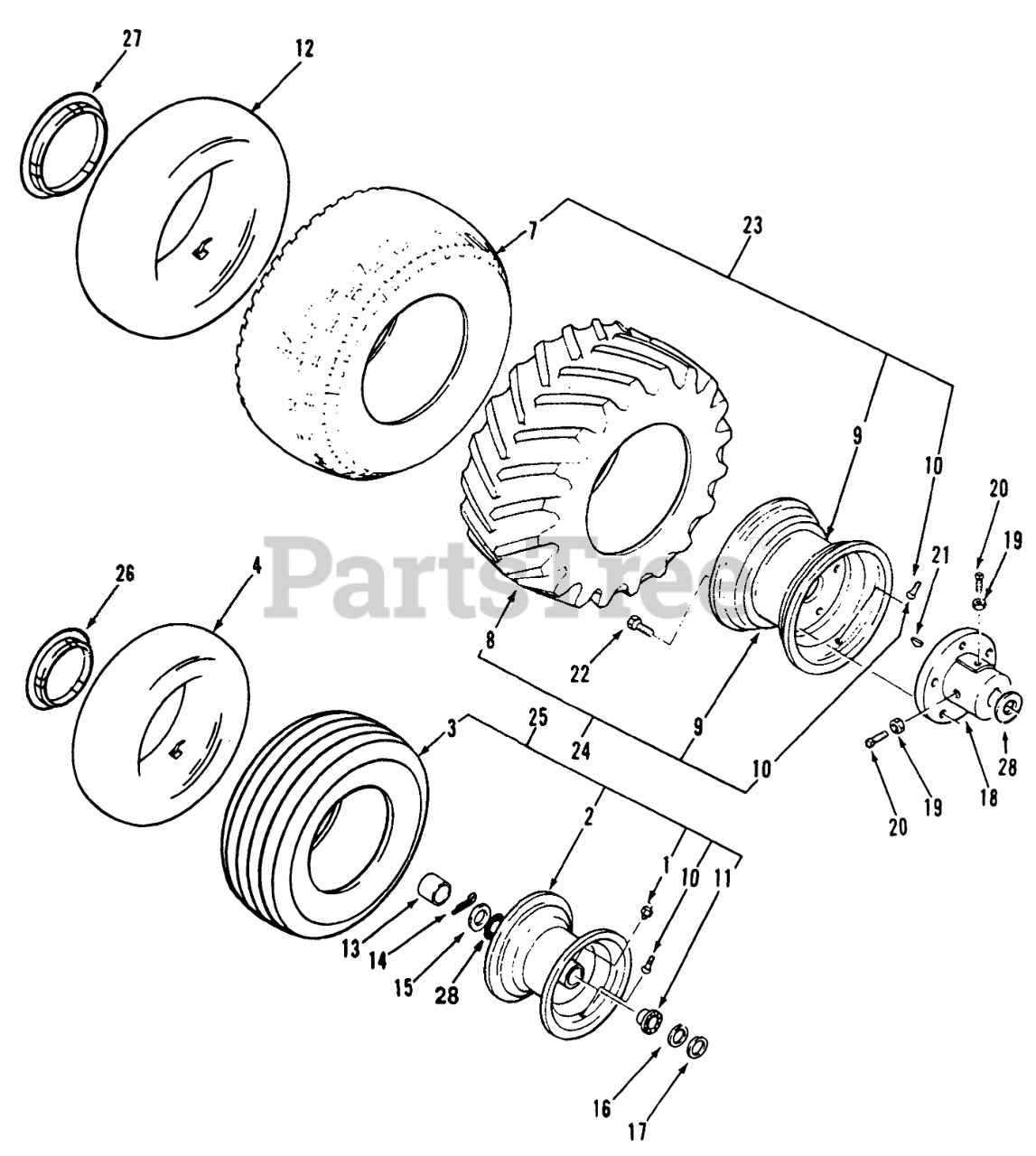

51-16OE02 (416-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) WHEELS AND TIRES Parts Diagram

Garden Tractor

WHEELS AND TIRES Parts Diagram

  • Title
1

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

2

Toro 117285

Wheel-Front (Includes Item 1, 10, & 11, Used on 310-S & 312-S

$

$

Not available

Toro 78-1660

Rim-Front
(Superseded to 93-9801)

Note: Not illustrated

$257.99

$

Usually ships in 3-6 days

0

3

Toro 116884

TIRE-15 X 6.00-6

$136.99

$

Usually ships in 3-6 days

0

Toro 117127

Tire (16 x 6.5-8) 2-Ply -2 Wheel Axel

Note: Not illustrated

$

$

Not available

4

$

$

Not available

7

Toro 116742

TIRE-23X8.50-12 2PLY

$

$

Not available

Toro 116744

TIRE
(Superseded to 116-5363)

Note: Not illustrated

$226.99

$

Usually ships in 3-6 days

0

8

Toro 7607

Tire-Cleat, Rear
(Superseded to 110934)

$

$

Not available

9

Toro 111516

WHEEL

$308.99

$

Usually ships in 3-6 days

0

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 17

0

11

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 4 left!

0

12

Toro 1654

INNER TUBE

$

$

Not available

Toro 7007

TUBE-INNER
(Superseded to 231-90)

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

Toro 100291

Tube Cleat Tires
(Superseded to 231-90)

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

13

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

Toro 111951

HUBCAP

Note: Not illustrated

$14.99

$

In Stock, only 2 left!

0

14

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

15

Toro 109114

WASHER-WHEEL

$3.49

$

In Stock, only 2 left!

0

Toro 111952

WASHER WHEEL

Note: Not illustrated

$6.49

$

In Stock, Qty 5

0

16

Toro 1278

WASHER

$2.99

$

In Stock, only 1 left!

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 12

0

18

Toro 105763

Hub Rear
(Superseded to 105763-03)

$165.99

$

Usually ships in 3-6 days

0

Toro 105762

Hub-Rear
(Superseded to 93-3659-03)

Note: Not illustrated

$148.99

$

Usually ships in 3-6 days

0

19

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

20

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

21

Toro 937108

KEY-WOODRUFF

$4.99

$

In Stock, only 3 left!

0

Toro 937097

WOODRUFF KEY

Note: Not illustrated

$

$

Not available

22

Toro 1004

Lug Nut

$

$

Not available

23

Toro 116741

ASM-Wheel & Tire

$

$

Not available

Toro 116743

ASM-Wheel& Tire

$

$

Not available

24

Toro 110934

ASSY WHEEL & TIRE

$

$

Not available

Toro 110933

ASSY WHEEL & TIRE

$

$

Not available

25

Toro 117289

ASM-Wheel & Tire
(Superseded to 99-5378)

$

$

Not available

Toro 78-1650

Tire Assy-Front Wheel

Note: Not illustrated

$

$

Not available

26

Toro 114426

6"-HUB CAP LOGO

$

$

Not available

Toro 114427

8"-HUB CAP LOGO

Note: Not illustrated

$

$

Not available

27

Toro 114428

12"-HUB CAP LOGO

$

$

Not available

28

Toro 106826

WASHER-THRUST

$11.99

$

In Stock, only 1 left!

0
