51-16OE02 (416-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) TRANSAXLE 312-H, 416-H Parts Diagram

Garden Tractor

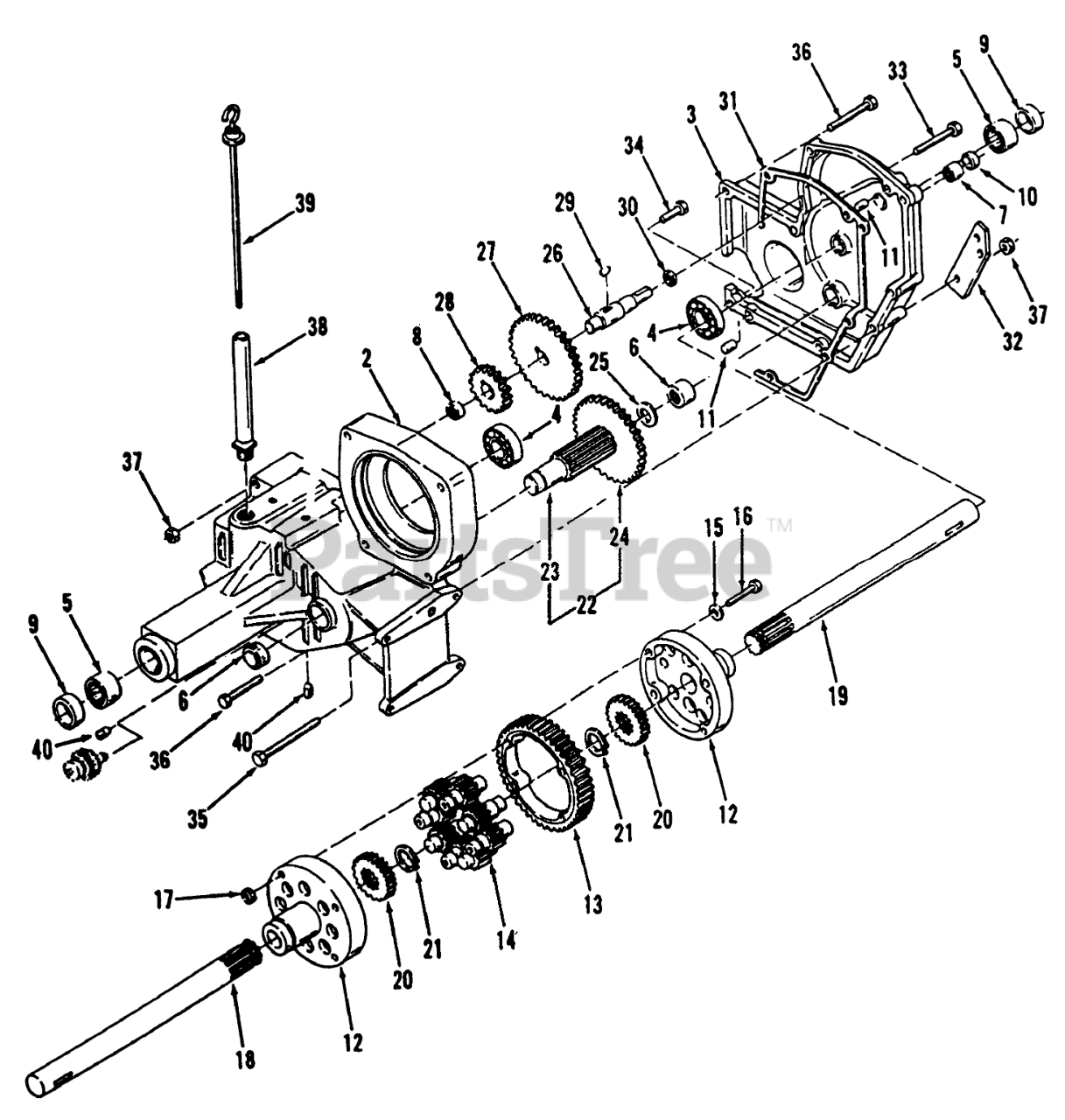

TRANSAXLE 312-H, 416-H Parts Diagram

  • Title
1

Toro 115173

Transaxle Complete
(Superseded to 92-7297)

$

$

Not available

2

Toro 113927

CASE-TRANS RH

$1209.99

$

Usually ships in 3-6 days

0

3

Toro 111201

CASE TRANS LH

$

$

Not available

4

Toro 111199

BEARING-BALL

$125.99

$

In Stock, only 3 left!

0

5

Toro 9416

BEARING

$81.99

$

Usually ships in 3-6 days

0

6

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

7

Toro 1538

NEEDLE BEARING

$46.99

$

Usually ships in 3-6 days

0

8

Toro 1518

BEARING-NEEDLE

$31.99

$

Usually ships in 3-6 days

0

9

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

10

Toro 108357

Seal
(Superseded to 253-44)

$29.99

$

In Stock, only 1 left!

0

11

Toro 108363

PIN-LOCATING

$

$

Not available

12

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

13

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

14

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

15

Toro 107374

WASHER

$0.99

$

In Stock, Qty 6

0

16

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, only 2 left!

0

17

$6.49

$

In Stock, only 2 left!

0

18

Toro 108362

AXLE-REAR RH

$

$

Not available

19

Toro 108361

AXLE-REAR LH

$

$

Not available

20

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

21

Toro 105876

RING-SNAP

$5.99

$

In Stock, only 2 left!

0

22

Toro 109703

ASSY GEAR

$

$

Not available

23

Toro 101625

PINION SHAFT

$

$

Not available

24

$

$

Not available

25

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

26

Toro 109370

SHAFT GEAR

$

$

Not available

27

Toro 109752

GEAR 46 TEETH

$

$

Not available

28

Toro 109742

GEAR 20 TEETH

$

$

Not available

29

Toro 937099

Key
(Superseded to 937024)

$

$

Not available

30

Toro 7956

Race Thrust
(Superseded to 702982)

$9.99

$

In Stock, Qty 5

0

31

Toro 108312

GASKET-TRANSMISSION

$24.99

$

Usually ships in 3-6 days

0

32

Toro 109367

BRACKET-BRAKEB

$

$

Not available

33

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

34

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

36

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

38

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

39

Toro 110768

Dipstick
(Superseded to 110768-03)

$

$

Not available

40

$18.99

$

Usually ships in 3-6 days

0
