51-12KE01 (312-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

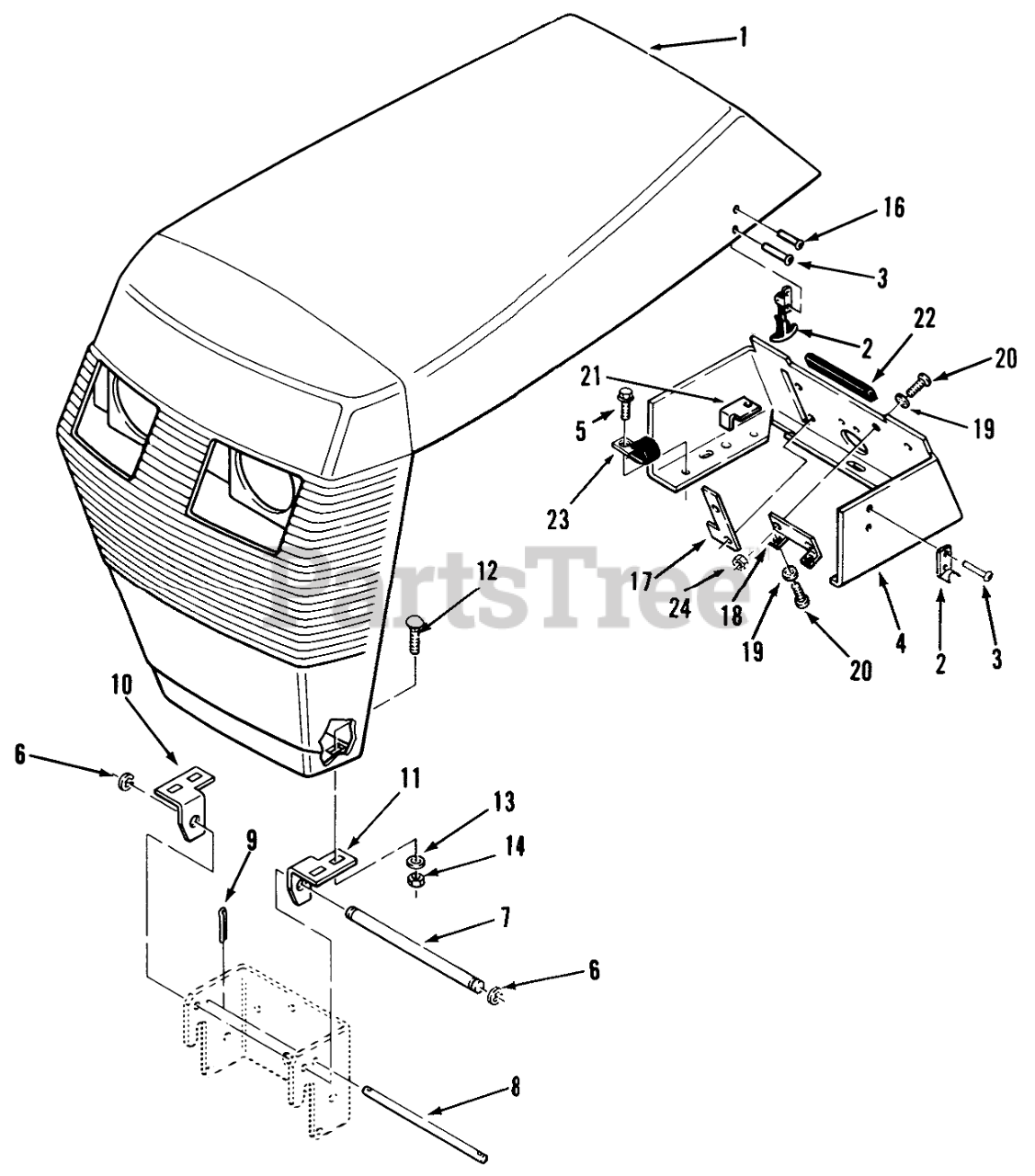

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 112358

Hood
(Superseded to 88-2782)

$

$

Not available

2

Toro 117341

LATCH-FLEX BLK ASS'Y

$

$

Not available

3

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

4

Toro 111270

Console 310-8

$

$

Not available

Toro 111271

Console
(Superseded to 111271-03)

$

$

Not available

Toro 78-5610

CONSOLE B

$108.99

$

In Stock, only 2 left!

0

5

Toro 926694

SCREW

$

$

Not available

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Toro 116745

ROD-GRILL PIVOT

$14.99

$

In Stock, only 2 left!

0

8

Toro 101850

ROD-HOOD STOP

$18.99

$

Usually ships in 3-6 days

0

9

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

10

Toro 116746

BRACKET-GRILL, R H

$11.99

$

In Stock, Qty 11

0

11

Toro 116747

BRACKET-GRILL, LH

$11.99

$

In Stock, Qty 6

0

12

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

13

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

16

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

17

Toro 111182

STOP THROTTLE

$

$

Not available

Toro 120590

Washer
(Superseded to 120590-03)

$

$

Not available

18

Toro 112506

BRACKET

$7.99

$

Usually ships in 3-6 days

0

19

Toro 920150

Washer-Lock
(Superseded to 3254-9)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 910762

SCREW

$

$

Not available

21

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

22

Toro 111757

EDGING-CONSOLE

$10.99

$

In Stock, only 2 left!

0

23

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

24

Toro 915960

Nut
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0

Toro 5983

NYLINER BUSHING

$4.99

$

In Stock, Qty 16

0
