50934 - Gravely 42" Snow Blade for GEM Tractor BLADE 42" Parts Diagram

42" Snow Blade for GEM Tractor

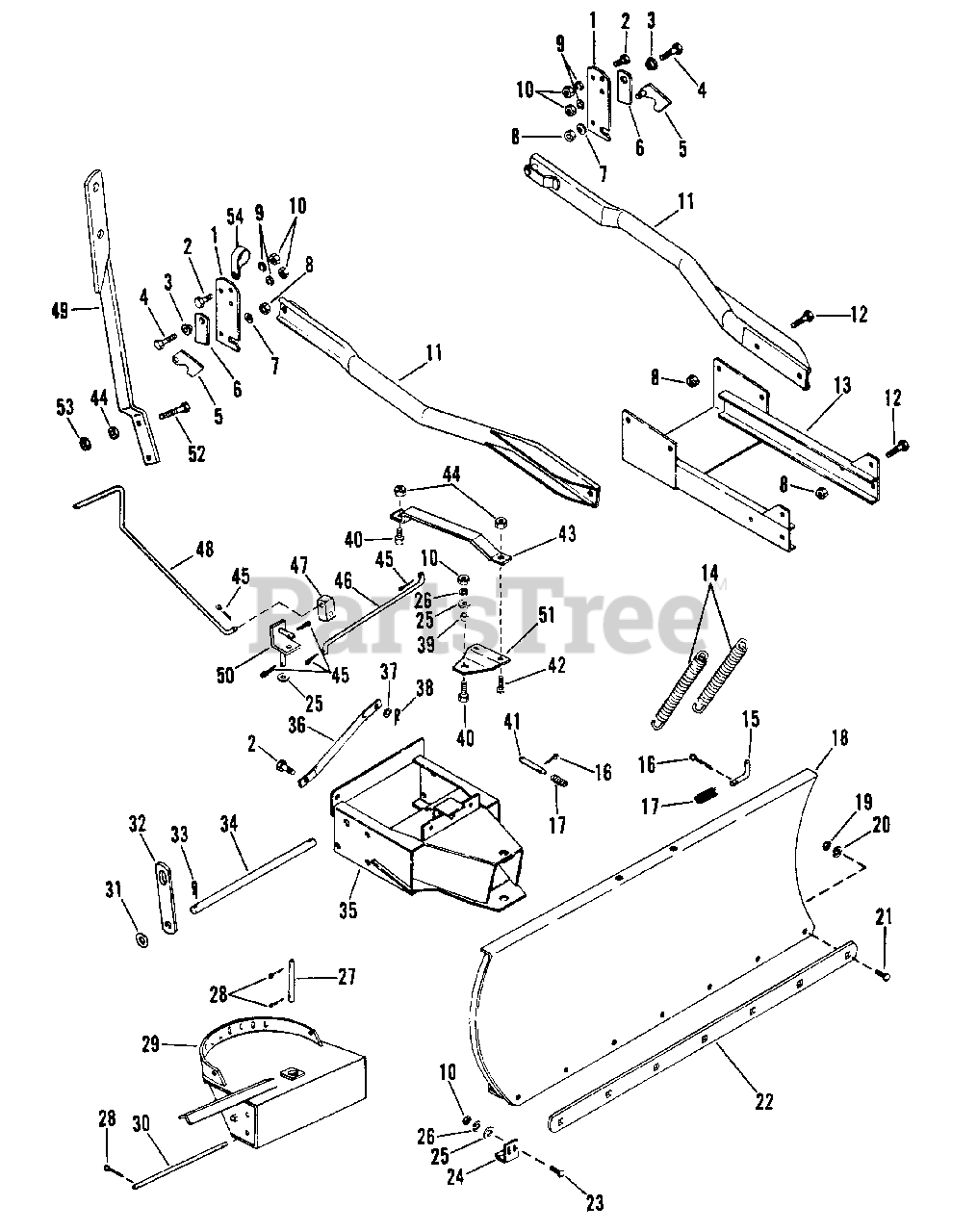

BLADE 42" Parts Diagram

  • Title
1

Gravely 050787

Bracket, Rear Hanger
(Superseded to 03459500)

$

$

Not available

2

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 050789

Spacer
(Superseded to 03459700)

$

$

Not available

4

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

5

Gravely 039081

Latch, R.H.
(Superseded to 03055400)

$

$

Not available

5

Gravely 039080

Latch, L.H.
(Superseded to 03055500)

$62.99

$

Usually ships in 4-12 days

0

6

Gravely 050791

Stop, Lock
(Superseded to 03460000)

$

$

Not available

7

Gravely 039078

Spring Washer
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 050795

Brace, Rear Attachment
(Superseded to 03459900)

$

$

Not available

12

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 050797

Cross, Channel
(Superseded to 03460100)

$

$

Not available

14

Gravely 036558

Spring, Extension
(Superseded to 08313300)

$45.99

$

In Stock, only 2 left!

0

15

Gravely 040026

Pin, Jack
(Superseded to 03127700)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 137185

Pin, Cotter 1/8x1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

17

Gravely 036058

Spring, Compression
(Superseded to 08313200)

$38.99

$

Usually ships in 4-12 days

0

18

$

$

Not available

19

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

20

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

21

Gravely 036552

Bolt, Carriage 5/16-18x1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 050897

Plate, Wear
(Superseded to 02918600)

$

$

Not available

23

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

24

Gravely 036554

Shoe, Skid
(Superseded to 03127151)

$51.99

$

Usually ships in 4-12 days

0

25

Gravely 120388

Washer, Flat .438x1.00x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 040024

Pin
(Superseded to 03127600)

$34.99

$

Usually ships in 4-12 days

0

28

Gravely 187988

Pin, Cotter 3/16-1.25
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

29

Gravely 040022

Support

$

$

Not available

30

Gravely 039548

Rod
(Superseded to 03127200)

$39.99

$

Usually ships in 4-12 days

0

31

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 050903

Lift, Link
(Superseded to 03460600)

$

$

Not available

33

Gravely 035878

Pin, Hair
(Superseded to 06711900)

$2.99

$

In Stock, only 2 left!

0

34

Gravely 050804

Rod, Pivot
(Superseded to 03461100)

$

$

Not available

35

$

$

Not available

36

Gravely 050802

Stabilizer
(Superseded to 03461000)

$

$

Not available

37

Gravely 039056

Washer 3/8
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

38

Gravely 036566

Hair Pin 3/32x1-7/8
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

39

$

$

Not available

40

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

41

Gravely 036528

Pin, Latch
(Superseded to 03125400)

$

$

Not available

42

Gravely 126216

Bolt, Carriage 5/16-18x.75

$

$

Not available

43

Gravely 040021

Strap
(Superseded to 03126751)

$

$

Not available

44

Gravely 036034

Nut, Two Way Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 177923

Pin, Cotter 1/8x3/4
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

46

Gravely 040023

Rod
(Superseded to 03125300)

$

$

Not available

47

Gravely 036543

Joint, Block

$

$

Not available

48

Gravely 050910

Rod
(Superseded to 03431500)

$

$

Not available

49

Gravely 050911

Support, Chute Crank
(Superseded to 03459300)

$

$

Not available

50

$

$

Not available

51

Gravely 036535

Pivot Plate

$

$

Not available

52

Gravely 050843

Bolt, Tap 5/16-18x1.50
(Superseded to 05921500)

$2.49

$

Usually ships in 4-12 days

0

53

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

54

Gravely 027122

Clamp
(Superseded to 06907200)

$

$

Not available

Gravely 044077

Decal, Gravely
(Superseded to 03573000)

$

$

Not available
