509 - Weed Eater String Trimmer, Electric, Type 1 Electric Trimmer Assembly Type 1 Parts Diagram

String Trimmer, Electric, Type 1

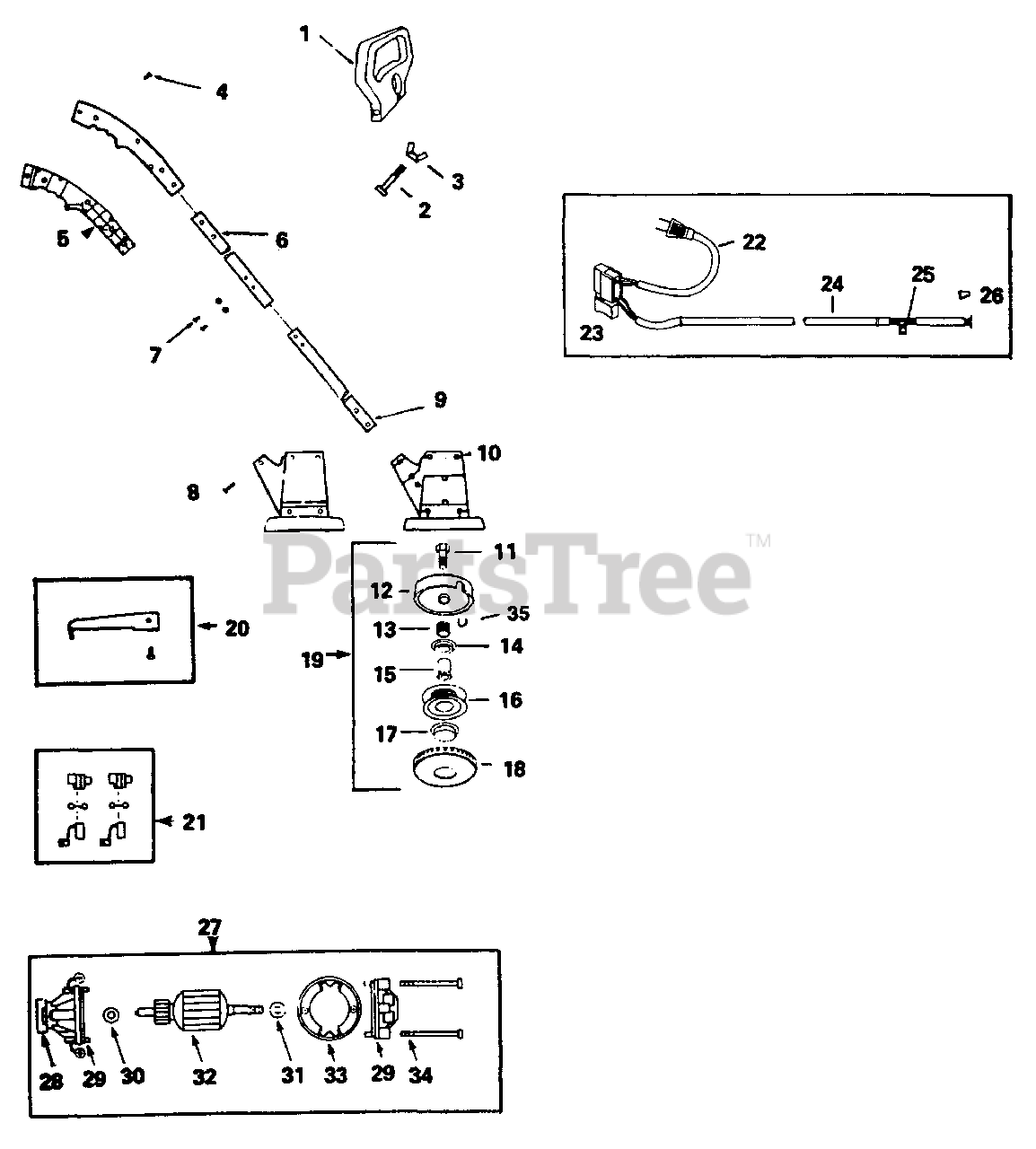

Electric Trimmer Assembly Type 1 Parts Diagram

  • Title

1

Poulan 92637

ASSIST HANDLE

$

$

Not available

2

Poulan 92638

BOLT

$

$

Not available

3

Poulan 92049

WING NUT

$

$

Not available

4

Poulan 92598

SCREW

$

$

Not available

5

Poulan 92639

TRIGGER HANDLE SET

$

$

Not available

6

Poulan 92641

TUBE, UPPER

$

$

Not available

7

Poulan 92626

TUBE FASTENER KIT

$

$

Not available

8

Poulan 92624

SCREW

$

$

Not available

9

Poulan 92644

TUBE, LOWER

$

$

Not available

10

Poulan 92645

MOTOR HOUSING SET

$

$

Not available

11

Poulan 92672

DRIVE ADAPTOR

$

$

Not available

12

Poulan 92673

HUB w/LINE SAVER

$

$

Not available

13

Poulan 92067

SPRING

$

$

Not available

14

Poulan 92068

SPRING ADAPTOR

$

$

Not available

15

Poulan 92069

DRIVE GEAR

$

$

Not available

16

Poulan 702509

SPOOL, WOUND

$

$

Not available

17

Poulan 93387

RELEASE BUTTON

$

$

Not available

18

Poulan 92133

COVER

$

$

Not available

19

Poulan 92676

TAP-N-GO HEAD ASSEMBLY

$

$

Not available

20

Poulan 701522

LINE LIMITER KIT

$

$

Not available

21

Poulan 92652

BRUSH KIT

$

$

Not available

22

Poulan 90866

POWER CORD PIGTAIL

$

$

Not available

23

Poulan 90824

SWITCH

$

$

Not available

24

Poulan 92671

HARNESS w/DIODE

$

$

Not available

25

Poulan 92677

DIODE

$

$

Not available

26

Poulan 90876

CONNECTOR

$

$

Not available

27

Poulan 92656

MOTOR

$

$

Not available

28

Poulan 92657

INSULATOR

$

$

Not available

29

Poulan 92658

END BELL SET

$

$

Not available

30

Poulan 92659

WASHER-THRUST, .025"

$

$

Not available

31

Poulan 92661

WASHER-THRUST, .010"

$

$

Not available

32

Poulan 92662

ARMATURE

$

$

Not available

33

Poulan 92663

FIELD ASSEMBLY

$

$

Not available

34

Poulan 92664

SCREW

$

$

Not available

35

Poulan 92134

LINE SAVER

$

$

Not available
