508 (1690069) - AGCO Rear-Engine Riding Mower, 8hp Transmission Group Parts Diagram

Rear-Engine Riding Mower, 8hp

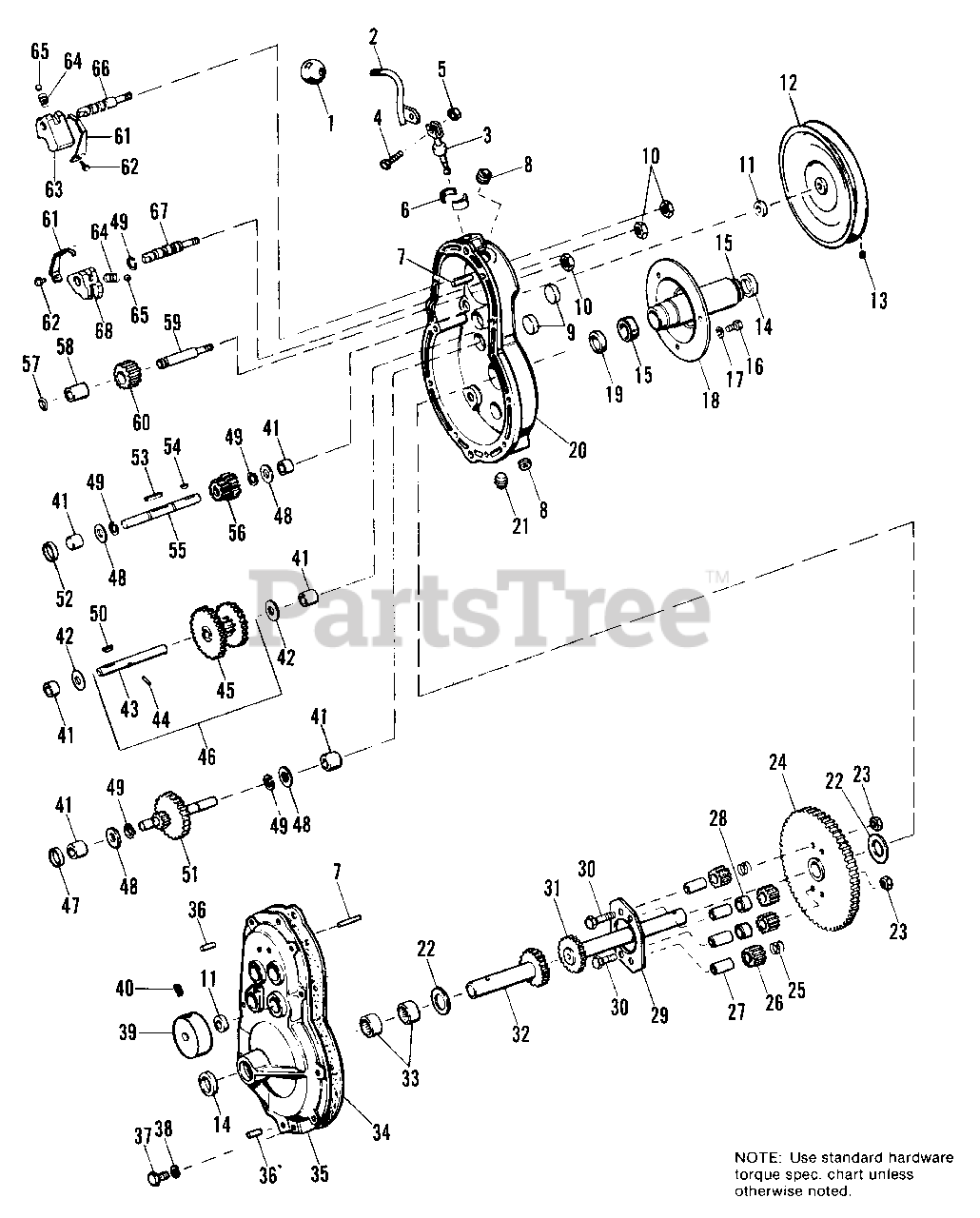

Transmission Group Parts Diagram

  • Title

1

Simplicity 1729255SM

KNOB, Ball

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 1650323

LEVER ASSY., Shift

$

$

Not available

3

Simplicity 2156031

ROD ASSY., Shift

$

$

Not available

4

Simplicity 2823341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

5

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

6

Simplicity 2101042SM

BUSHING, Half

$

$

Not available

7

Simplicity 2156308SM

PIN ASSY., Roll

$9.49

$

Usually ships in 2-12 days

0

8

Simplicity 2830676SM

PLUG, Pipe

$

$

Not available

9

Simplicity 163050

PLUG, Expansion

$

$

Not available

10

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

11

Simplicity 2156084SM

SEAL, Oil

$16.99

$

Usually ships in 2-12 days

0

12

Simplicity 106214

PULLEY, Drive

$

$

Not available

13

Simplicity 929277

SETSCREW, 3/8-16 x 3/8

$

$

Not available

14

Simplicity 2163012SM

SEAL, Oil

$13.99

$

Usually ships in 2-12 days

0

15

Simplicity 1657807

BUSHING

$

$

Not available

16

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 177811

HOUSING ASSY., Axle

$

$

Not available

19

Simplicity 2156099SM

SEAL, Oil

$3.49

$

In Stock, only 1 left!

0

20

Simplicity 1630-94

CASE ASSY., Gear

$

$

Not available

21

Simplicity 2801653

PLUG, Pipe

$

$

Not available

22

Simplicity 175311

WASHER

$

$

Not available

23

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

24

Simplicity 175328

GEAR ASSY., Drive

$

$

Not available

25

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 6

0

26

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

27

Simplicity 2121083SM

SPINDLE, Diff.

$13.99

$

In Stock, only 1 left!

0

28

Simplicity 2121084SM

SPACER, Diff.

$12.99

$

Usually ships in 2-12 days

0

29

Simplicity 156002

PLATE, Diff.

$

$

Not available

30

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

31

Simplicity 175312

SHAFT ASSY., Axle, R.H.

$

$

Not available

32

Simplicity 175314

SHAFT ASSY., Axle, L.H.

$

$

Not available

33

Simplicity 2105195SM

BEARING, Roller;

$34.99

$

In Stock, only 1 left!

0

34

Simplicity 2156103SM

GASKET

$

$

Not available

35

Simplicity 1650433

COVER ASSY., Gear Case

$

$

Not available

36

Simplicity 2818113

PIN, Roll, 3/8 x 1

$

$

Not available

37

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

38

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 2165067SM

DRUM, Brake

$27.99

$

Usually ships in 2-12 days

0

40

Simplicity 930554

SETSCREW, 5/16-18 x 5/16

$

$

Not available

41

Simplicity 163022

BUSHING

$

$

Not available

42

Simplicity 2156089

WASHER

$

$

Not available

43

Simplicity 2165009SM

SHAFT, Brake

$329.99

$

Usually ships in 2-12 days

0

44

Simplicity 2156292

PIN, Dowel

$

$

Not available

45

Simplicity 2165009SM

CLUSTER ASSY., Gear

$329.99

$

Usually ships in 2-12 days

0

46

Simplicity 2165009SM

SHAFT & GEAR ASSY.

$329.99

$

Usually ships in 2-12 days

0

47

Simplicity 163050

PLUG, Expansion

$

$

Not available

48

Simplicity 2156085

WASHER

$

$

Not available

49

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

50

Simplicity 2830669

KEY, 5/32 x 5/8 Dia.

$

$

Not available

51

Simplicity 2165013SM

GEAR & SHAFT ASSY.

$159.99

$

Usually ships in 2-12 days

0

52

Simplicity 163074

PLUG, Expansion

$

$

Not available

53

Simplicity 2170453SM

KEY

$15.99

$

Usually ships in 2-12 days

0

54

Simplicity 2805123SM

KEY, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

55

Simplicity 1650233

SHAFT, Pulley

$

$

Not available

56

Simplicity 2156087SM

PINION ASSY., Hi-Lo

$108.99

$

Usually ships in 2-12 days

0

57

Simplicity 2165006SM

RING, O

$10.99

$

Usually ships in 2-12 days

0

58

Simplicity 2156082

BEARING, Roller

$

$

Not available

59

Simplicity 1650-05

SHAFT, Reverse, Pinion

$

$

Not available

60

Simplicity 1650625SM

PINION, Reverse

$63.99

$

Usually ships in 2-12 days

0

61

Simplicity 1657656SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

62

Simplicity 2830614

SCREW, Hex, Washer Hd., 5/16-18 x 5/16

$

$

Not available

63

Simplicity 1713-64

FORK, Shift, I & II

$

$

Not available

64

Simplicity 2171456SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

65

Simplicity 2154262

BALL

$

$

Not available

66

Simplicity 2171372SM

SHAFT, Shift, Hi-Lo

$96.99

$

Usually ships in 2-12 days

0

67

Simplicity 1713-65

SHAFT, Shift, Reverse-Lo

$

$

Not available

68

Simplicity 1713-63

FORK, Shift, Reverse

$

$

Not available
