50784 - Gravely Front Mount for GEM Tractor FRONT MOUNT KIT Parts Diagram

Front Mount for GEM Tractor

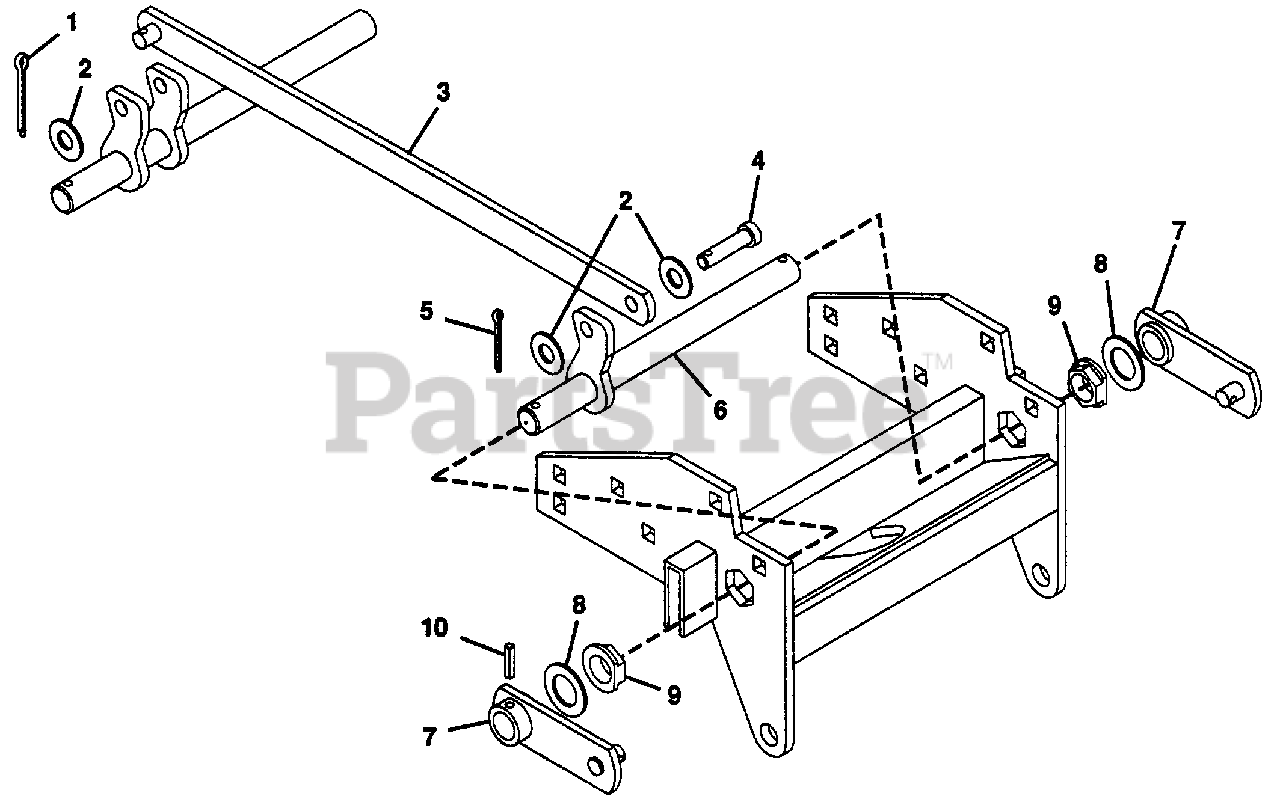

FRONT MOUNT KIT Parts Diagram

  • Title
1

Gravely 187988

Pin, Cotter .187x1.25
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

2

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

3

Gravely 050260

Link, Lift

$

$

Not available

4

Gravely 049663

Pin, Clevis .50x.875
(Superseded to 06809400)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 137185

Pin, Cotter .125x1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

6

Gravely 050261

Pivot, Front
(Superseded to 03452100)

$

$

Not available

7

Gravely 050262

Arm, Front Lift
(Superseded to 03452000)

$

$

Not available

8

Gravely 017959

Bearing, Thrust Race
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

9

Gravely 050259

Bush., Flg. 1.00x1.25x.375 Stl.
(Superseded to 05513800)

$

$

Not available

10

Gravely 413315

Pin, Spring .250x1.50
(Superseded to 05808500)

$

$

Not available
