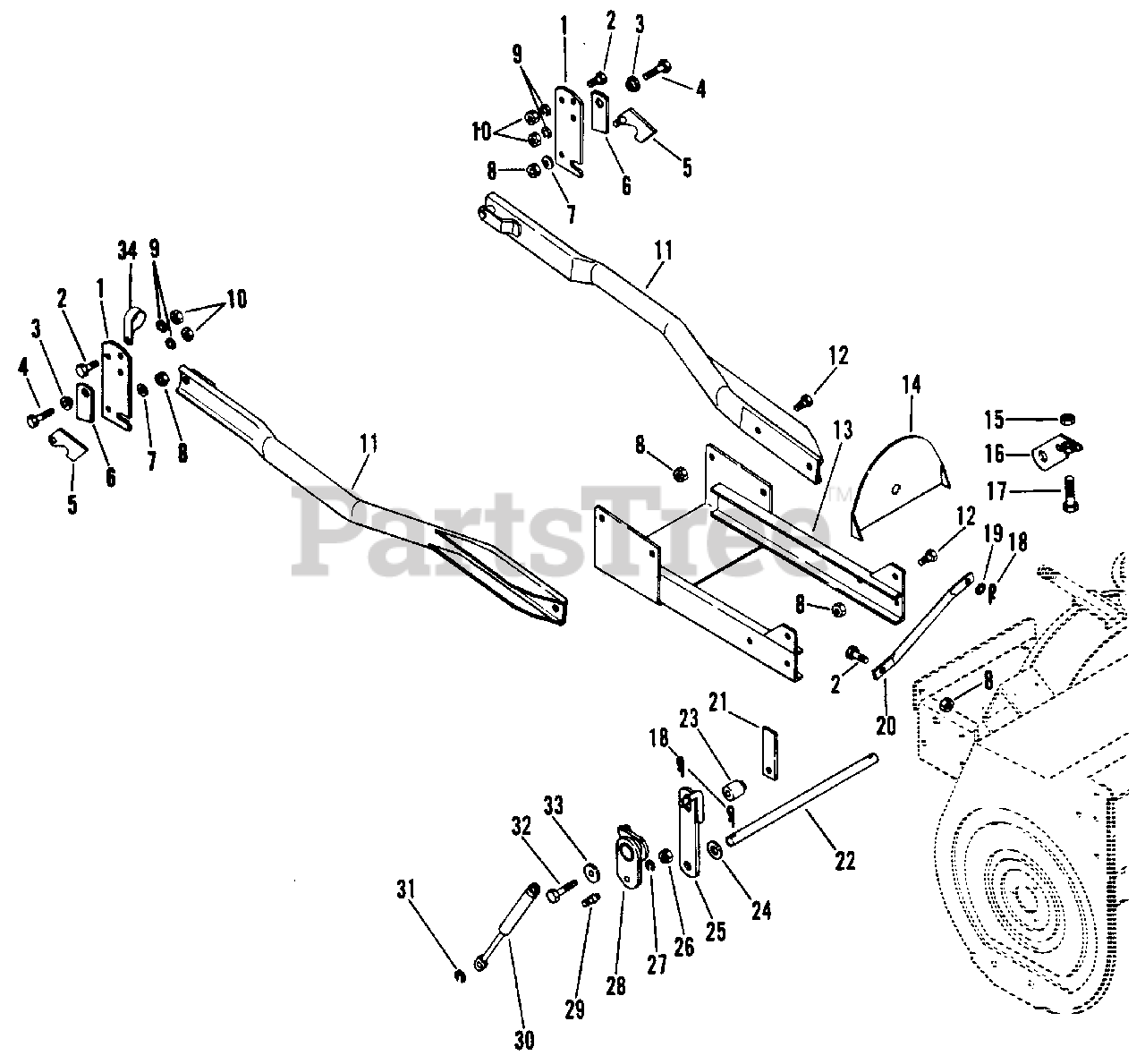

50719 - Gravely 40" Snow Blower for GEM Tractor FRAME Parts Diagram

40" Snow Blower for GEM Tractor

FRAME Parts Diagram

  • Title

1

Gravely 050787

Rear Hanger Bracket
(Superseded to 03459500)

$

$

Not available

2

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 050789

Spacer
(Superseded to 03459700)

$

$

Not available

4

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

5

Gravely 039081

R.H. Latch
(Superseded to 03055400)

$

$

Not available

5

Gravely 039080

L.H. Latch
(Superseded to 03055500)

$62.99

$

Usually ships in 4-12 days

0

6

Gravely 050791

Lock, Stop
(Superseded to 03460000)

$

$

Not available

7

Gravely 039078

Spring Washer
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 050795

Rear Attachment Brace
(Superseded to 03459900)

$

$

Not available

12

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 050797

Channel Cross
(Superseded to 03460100)

$

$

Not available

14

Gravely 050798

Shield
(Superseded to 03461900)

$

$

Not available

15

Gravely 120378

Nut, Hex 1/2-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 050800

Adjustment Link
(Superseded to 03460900)

$

$

Not available

17

Gravely 180181

Bolt, Hex 1/2-13x2.00
(Superseded to 05901929)

$

$

Not available

18

Gravely 036566

Hair Pin 2/32X1-7/8
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 039056

Washer 3/8
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

20

Gravely 050802

Stabilizer
(Superseded to 03461000)

$

$

Not available

21

Gravely 050803

Bolt Plate
(Superseded to 03462100)

$

$

Not available

22

Gravely 050804

Pivot Rod
(Superseded to 03461100)

$

$

Not available

23

Gravely 050805

Pivot
(Superseded to 03462200)

$11.99

$

Usually ships in 4-12 days

0

24

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 050807

R.H. Lift Link
(Superseded to 03460400)

$

$

Not available

25

Gravely 050808

L.H. Lift Link
(Superseded to 03460500)

$25.99

$

Usually ships in 4-12 days

0

26

Gravely 124824

Nut, Jam 5/16-18 Hex
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 050811

R.H. Lift Assist Bracket
(Superseded to 03460200)

$

$

Not available

28

Gravely 050812

L.H. Lift Assist Bracket
(Superseded to 03460300)

$

$

Not available

29

Gravely 050813

Stud
(Superseded to 03462000)

$

$

Not available

30

Gravely 050814

Lift Assist Cylinder
(Superseded to 03459800)

$

$

Not available

31

Gravely 050815

E-Ring Extension
(Superseded to 05710700)

$

$

Not available

32

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

33

Gravely 045348

Washer .401/.421x1.125x.125
(Superseded to 06309100)

$

$

Not available

34

Gravely 027122

Clamp
(Superseded to 06907200)

$

$

Not available
