50719 - Gravely 40" Snow Blower for GEM Tractor BELT DRIVE Parts Diagram

40" Snow Blower for GEM Tractor

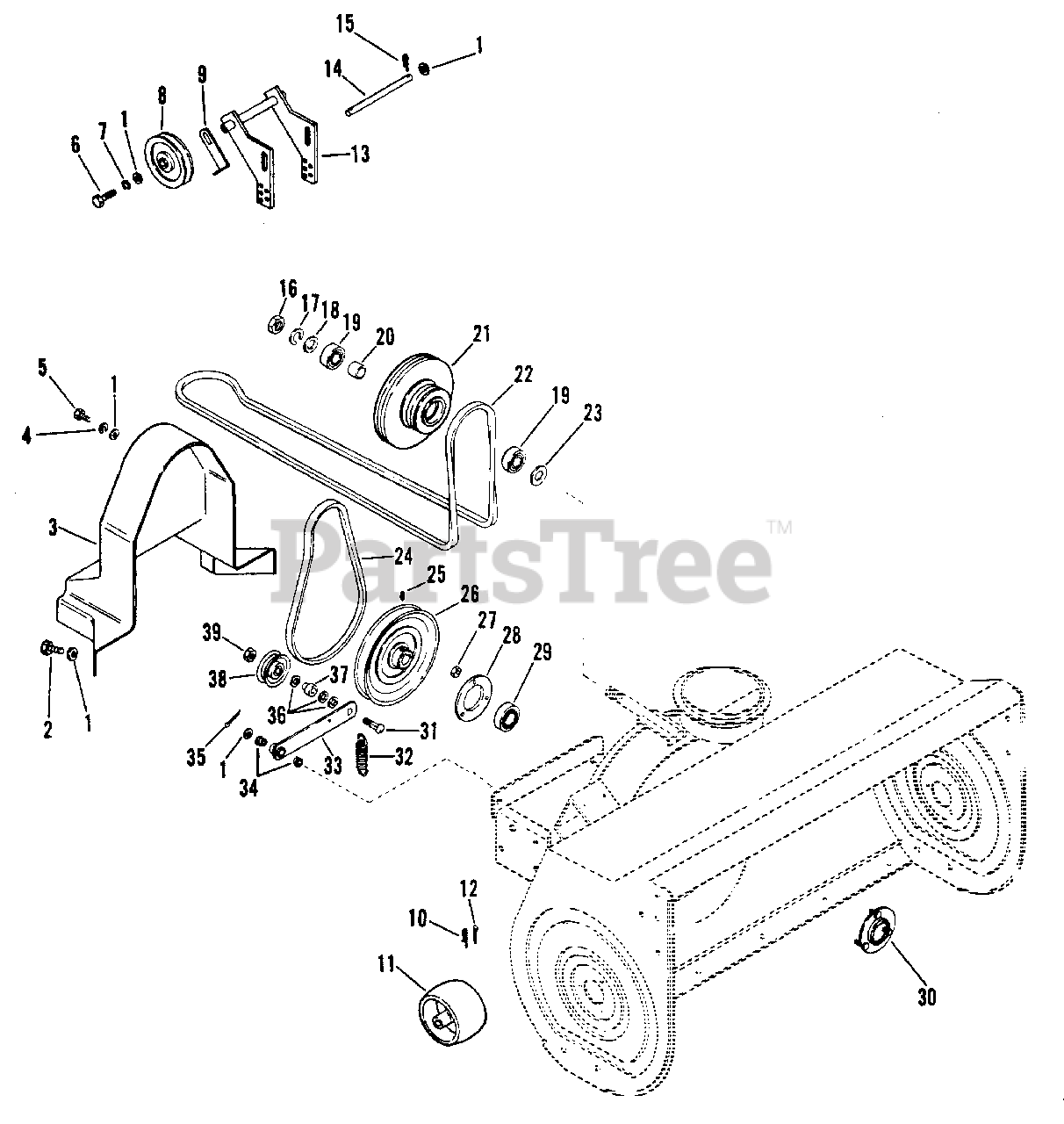

BELT DRIVE Parts Diagram

  • Title

1

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 050818

Taptite 3/8-16x1/2
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 050819

Belt Guard
(Superseded to 03459100)

$

$

Not available

4

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

5

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

7

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 036844

Idler 3/8x4"
(Superseded to 07300528)

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 050824

Belt Retainer
(Superseded to 03461600)

$

$

Not available

10

Gravely 036075

Hair Pin
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 050825

Roller
(Superseded to 02745400)

$15.99

$

In Stock, Qty 20+

0

12

Gravely 121222

Pin, Cotter 3/32x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

13

Gravely 050827

Idler Bracket
(Superseded to 03459200)

$

$

Not available

14

Gravely 050828

Pin
(Superseded to 03461500)

$

$

Not available

15

Gravely 036185

Hair Pin, Internal 3/32
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 426897

Nut, Jam 3/4-10
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 036225

Lock Washer, Internal 3/4
(Superseded to 03559000)

$19.99

$

Usually ships in 4-12 days

0

18

Gravely 050829

Washer .774/.811x1.250x16 Ga.
(Superseded to 06416700)

$

$

Not available

19

Gravely 050830

Radial Bearing 3/4x1-25/32
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

20

Gravely 050831

Spacer
(Superseded to 03519000)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 050832

Pulley
(Superseded to 03459600)

$

$

Not available

22

Gravely 050833

V-Belt 4L-RMA 140 1/4x17/32
(Superseded to 07217400)

$82.99

$

Usually ships in 4-12 days

0

23

Gravely 036917

Washer .774/.811x1.500x.188
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 050834

V-Belt 4L-RMA 36 15/64x17/32
(Superseded to 07217500)

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 050835

Set Screw 5/16-18x1/2
(Superseded to 06003200)

$

$

Not available

26

Gravely 036877

Pulley 5/8x7-1/2
(Superseded to 07309400)

$

$

Not available

27

Gravely 424215

Nut, Lock 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 036874

Bearing Flange
(Superseded to 03185900)

$22.99

$

In Stock, only 3 left!

0

29

Gravely 036876

Ball Bearing 1" I.D.x2" O.D.
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

30

Gravely 036875

Bearing Flange
(Superseded to 03186000)

$45.99

$

Usually ships in 4-12 days

0

31

Gravely 126411

Bolt, 3/8-16x1.50 Rd Hd Sq Nk
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

32

Gravely 036850

Extension Spring 3-1/2
(Superseded to 08312200)

$34.99

$

In Stock, only 1 left!

0

33

Gravely 036847

Idler Arm
(Superseded to 03518800)

$

$

Not available

34

Gravely 036241

Flange Bushing 3/8x1/2x5/16
(Superseded to 05503600)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 177923

Pin, Cotter 1/8x3/4
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

36

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 036849

Spacer
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

38

Gravely 049114

Idler

$

$

Not available

39

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
