50710 - Gravely 60" Deck for Pro-Master 300 Mower MOWER DRIVE Parts Diagram

60" Deck for Pro-Master 300 Mower

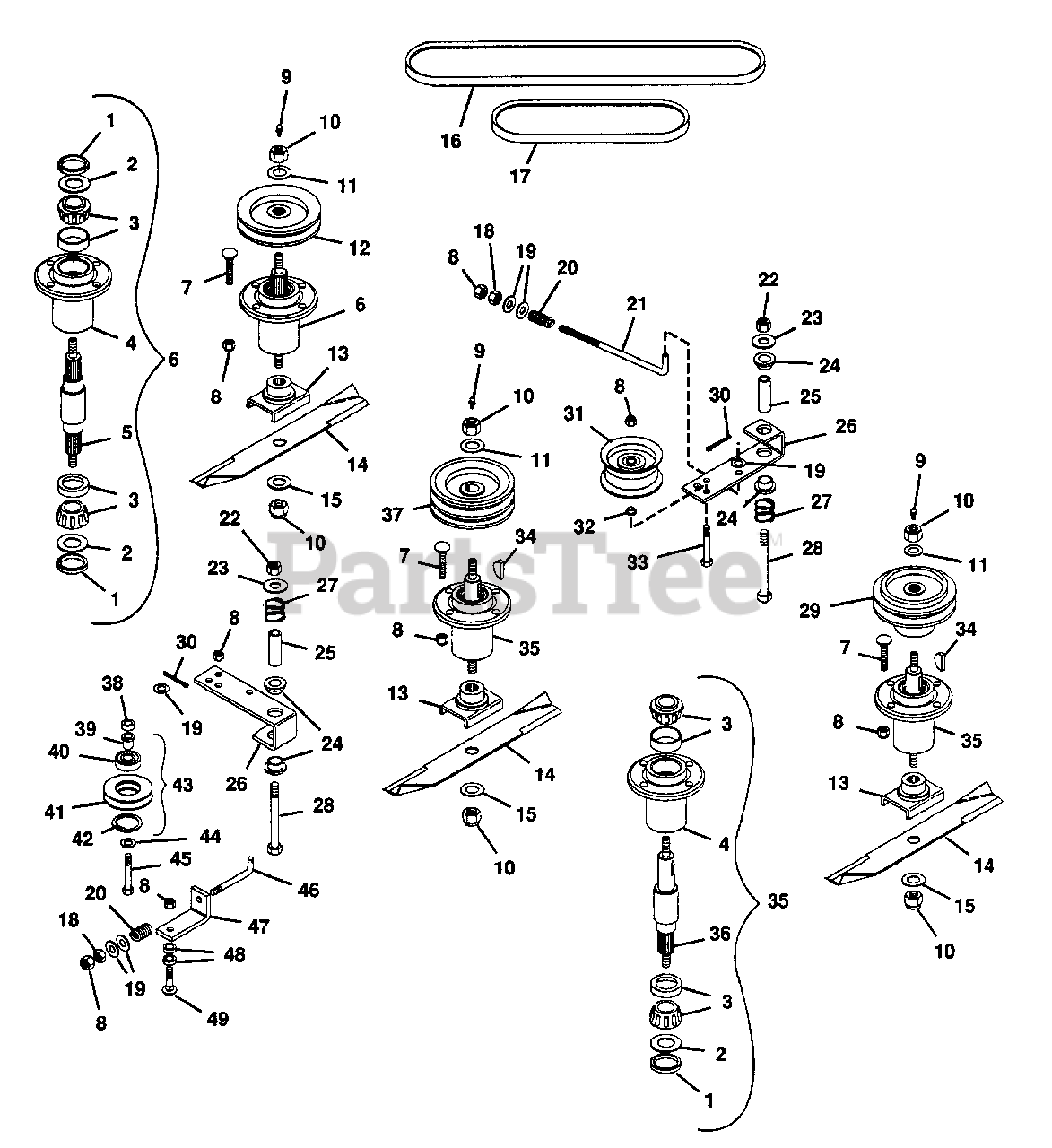

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 021211

Seal, Steel(in 34605)
(Superseded to 08722600)

Note: (in 34605)

$15.99

$

Usually ships in 4-12 days

0

1

Gravely 021211

Seal, Steel(in 21306)
(Superseded to 08722600)

Note: (in 21306)

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 020743

Washer, Flat .975x1.970x.030(in 34605)
(Superseded to 06426900)

Note: (in 34605)

$5.99

$

In Stock, Qty 9

0

2

Gravely 020743

Washer, Flat .975x1.970x.030(in 21306)
(Superseded to 06426900)

Note: (in 21306)

$5.99

$

In Stock, Qty 9

0

3

Gravely 038199

Assembly, Bearing
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

4

Gravely 021215

Housing, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

5

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

6

Gravely 021306

Assembly, Spindle
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

7

Gravely 126406

Bolt, 3/8-16x1.375 Rd Hd Sq Nk
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 033845

Washer, Flat .687x1.312x.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 031359

Pulley
(Superseded to 08895100)

$168.99

$

Usually ships in 4-12 days

0

13

Gravely 023026

Weldment, Blade Cradle
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

14

Gravely 025124

Blade
(Superseded to 08904600)

$

$

Not available

15

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 049211

Belt, V
(Superseded to 07233600)

$77.99

$

In Stock, only 1 left!

0

17

Gravely 042206

Belt, V
(Superseded to 07221000)

$33.99

$

Usually ships in 4-12 days

0

18

Gravely 120369

Nut, Hex 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 011779

Spring, Comp. 1x.78x338 Lb/N
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

21

Gravely 042196

Rod, Idler
(Superseded to 08877200)

$

$

Not available

22

Gravely 414074

Nut, Lock 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

24

Gravely 010174

Bush., Flg. .764x1.47x.560 Ny.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

25

Gravely 034119

Bush., St. .560x.750x2.44 Stl.
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

26

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

27

Gravely 020444

Spring, Comp. 1x.80x36 Lb/N
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

28

Gravely 180191

Bolt, Hex 1/2-13x3.25
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 043837

Sheave, Spindle
(Superseded to 08946700)

$261.99

$

Usually ships in 4-12 days

0

30

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

31

Gravely 034286

Pulley, Idler
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

32

Gravely 024815

Bush., Flg. .406x.880x.270 Brz.
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

33

Gravely 180132

Bolt, Hex 3/8-16x2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

34

Gravely 124553

Key, Woodruff .250x1 Hard #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

35

Gravely 034605

Assembly, Spindle
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

36

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

37

Gravely 049214

Sheave, Mower Spindle
(Superseded to 08987300)

$355.99

$

Usually ships in 4-12 days

0

38

Gravely 042197

Bush., St. .406x.625x.480 Stl.
(Superseded to 08836500)

$16.99

$

Usually ships in 4-12 days

0

39

Gravely 038897

Bush., Flg. .391x1.00x.760 Stl.
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

40

Gravely 038898

Bearing, Ball
(Superseded to 05425100)

$

$

Not available

41

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

42

Gravely 018960

Ring, Retaining
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 038900

Assembly, Idler Sheave
(Superseded to 08930300)

$242.99

$

Usually ships in 4-12 days

0

44

Gravely 446470

Washer, Flat .375x1.125x.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

45

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

46

Gravely 038714

Rod, Idler
(Superseded to 08876000)

$

$

Not available

47

Gravely 034287

Bracket, Belt Tensioner
(Superseded to 08802700)

$

$

Not available

48

Gravely 034383

Bush., St. .391x1.00x.250 Stl.
(Superseded to 08905800)

$

$

Not available

49

Gravely 126416

Bolt, 3/8-16x1.75 Rd Hd Sq Nk
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0
