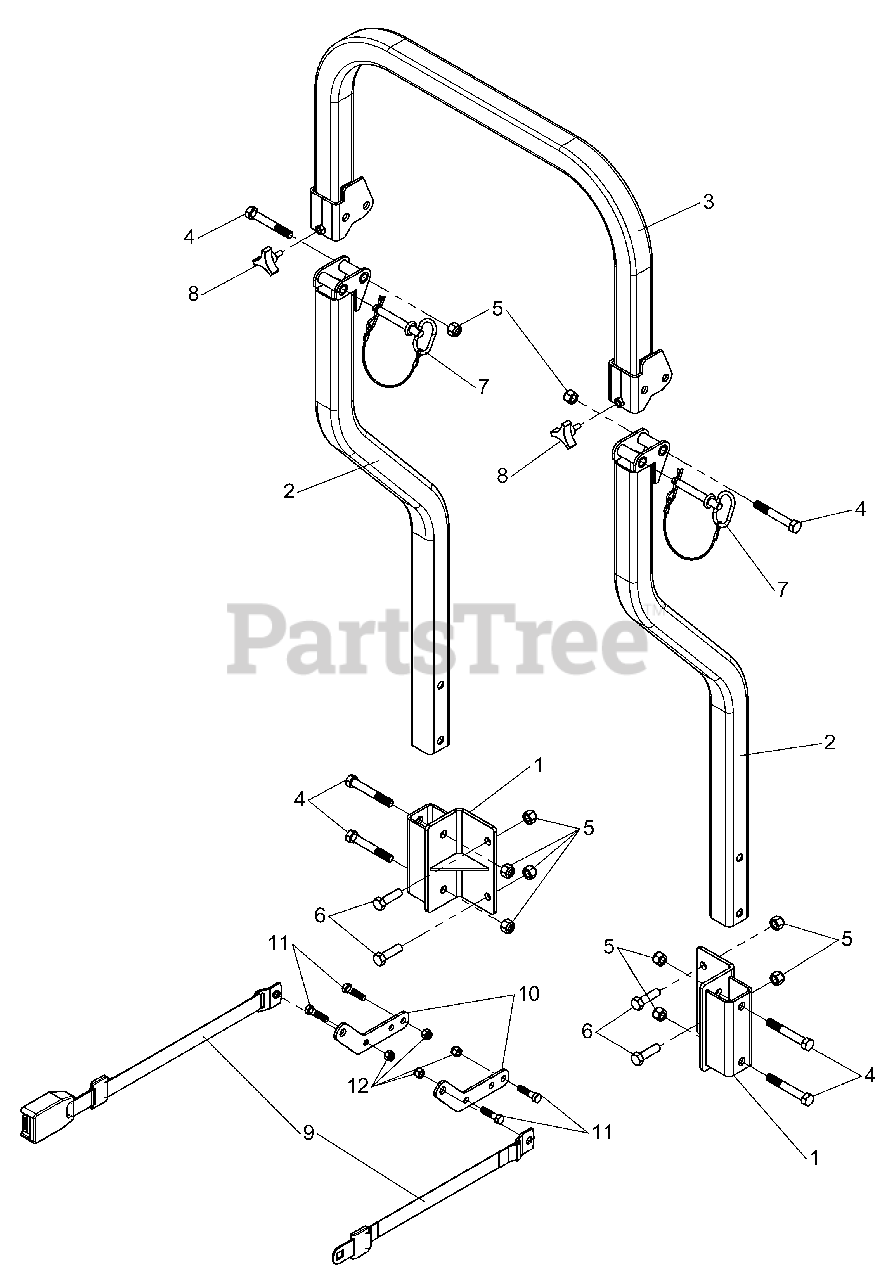

5061729 - Simplicity Roll Over Protection System R.O.P.S. Parts Diagram

Roll Over Protection System

R.O.P.S. Parts Diagram

  • Title

1

*ROPS SOCKET

Note: ( Refer to Note:*)

$

$

Not available

2

*ROPS POST

Note: ( Refer to Note:*)

$

$

Not available

3

*ROPS TOP LOOP

Note: ( Refer to Note:*)

$

$

Not available

4

Simplicity 5025017X28SM

CAPSCREW, Hex Hd, 1/2-13 x 3-1/2

$5.99

$

In Stock, only 2 left!

0

5

Simplicity 7091325YP

NUT, 1/2-13 HEX NYLON LOCK

$4.99

$

In Stock, only 3 left!

0

6

Simplicity 5025017X14YP

BOLT, 1/2-13 X 1-3/4 GD5 YZ

$3.49

$

In Stock, only 4 left!

0

7

Simplicity 5100013SM

PIN, Hitch, .50 x 3.25 W/ Lanyard

$35.99

$

Usually ships in 2-12 days

0

8

Simplicity 5022319SM

KNOB, External Thread, 5/16-18

$7.99

$

In Stock, only 4 left!

0

9

*SEAT BELT, COMPLETE W/ HARDWARE

$

$

Not available

10

Simplicity 5100030

ROPS, SEAT BELT MOUNT 1500

$

$

Not available

11

Simplicity 5025013X12SM

CAPSCREW, Hex Head, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0
